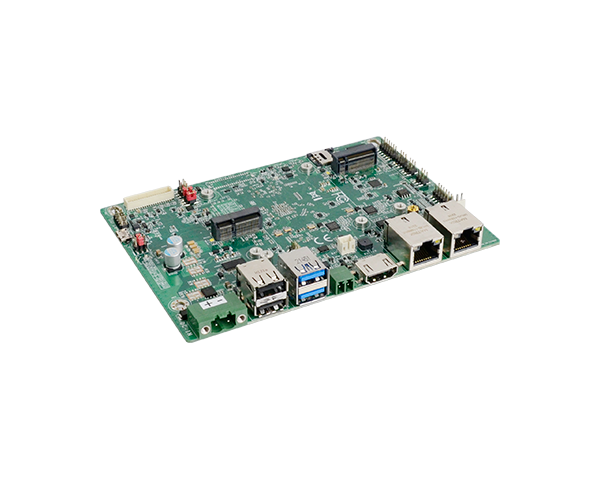

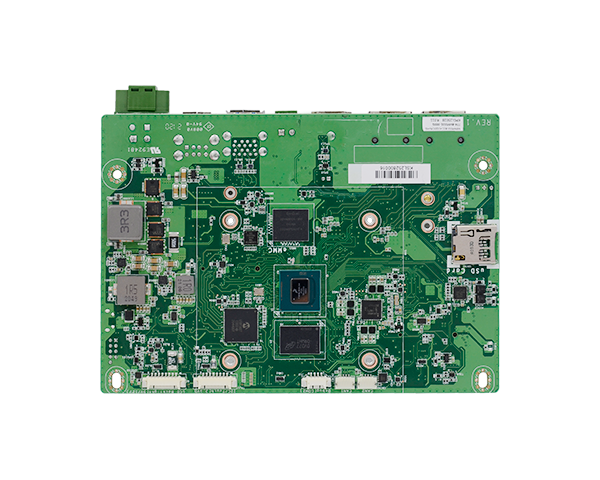

3.5寸工业主板-EBC-3503

★NXP i.MX8M plus Processors: 30% performance enhancement
★Wide Voltage Support 9~36VDC
★2 GbE LAN for automation application
★CAN bus for automation equipments integration
★1 M.2 2230 E key,  1 3052 B key
★15-Year CPU Life Cycle Support Until Q1' 36 (Based on NXP Roadmap)
ꄴ上一个： 3.5寸工业主板-EBC-3505
ꄲ下一个： 3.5寸工业主板-EBC-3502

  • 系统



    处理器

    i.MX 8M plus applications processors
    MIMX8ML6CVNKZAB (Industrial), Quad 1.6GHz, VPU/ISP/CAN FD, -40~105°C
    MIMX8ML3CVNKZAB (Industrial), Dual 1.6GHz, VPU/ML/ISP/CAN FD, -40~105°C

    内存

    2GB/4GB/8GB LPDDR4 Memory Down

    显示

    控制器

    GC7000UL

    特性

    HW Decode: 1080p60 H.265,H.264, VP9, VP8
    HW Endcode: 1080p60 H.265,H.264

    显示器

    1 x HDMI
    1 x LVDS
    HDMI: resolution up to 1920x1080 @60Hz
    LVDS: resolution up to 1920x1200 @60Hz

    双重显示

    LVDS + HDMI
    Android:support single output

    储存

    eMMC

    1 x eMMC 5.1 with default 16GB (up to 64GB)

    扩充

    界面

    1 x M.2 B key 3052/2242 (USB 3.1 Gen2/USB 2.0)
    1 x M.2 E key 2230 (PCIe x1/USB 2.0)
    1 x Nano SIM slot

    音讯

    音讯编译码器

    Audio codec SGTL5000

    以太网路

    PHY

    AR8035

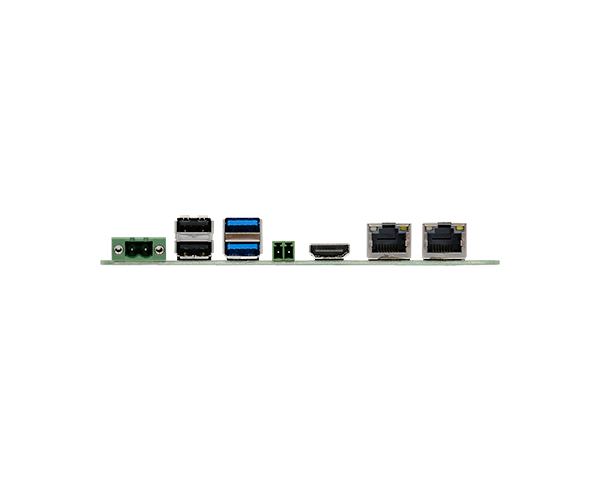

    背板输入/输出

    以太网络

    2 x GbE (RJ-45)

    串口

    1 x RS485 (2-wire)

    USB

    2 x USB 3.1 Gen1
    2 x USB 2.0

    显示

    1 x HDMI

    内部输入/输出

    串行端口

    1 x RS232
    1 x RS232/422/485 (2.0mm pitch)

    USB

    2 x USB 2.0 (2.00mm pitch, the 2nd USB is opt. from M.2 3052)
    1 x Micro USB OTG

    显示

    1 x LVDS LCD Panel connector
    1 x LCD/Intverter Power

    音效

    1 x Audio (Line-out/Mic-in)

    DIO

    1 x 8-bit DIO

    SD

    1 x uSD card

    CANBus

    2 x CAN bus 2.0b on Industrial CPU sku

    I2C

    1 x I2C / Touch

    监视定时器

    看门狗定时器

    System Reset, Programmable via Software from 1 to 255 Seconds

    电源

    类型

    Wide Range 9~36VDC
    Note1: Support 9V~24VDC in -30~80°C operating temperature.
    Note2: Support 36VDC within 70°C operating temperature.

    端口

    2-pole terminal block (default)
    Co-lay 4-pin vertical power connector

    耗能

    Typical: i.MX 8M Plus Quad, 12V, 3.6Watt
    Max.: i.MX 8M Plus Quad, 12V, 5.28Watt

    电池

    CR2032 Coin Cell

    支持操作系统

    Linux

    Linux Yocto 3.0 (default)

    软件

    Android 10

    环境指标

    温度

    Operating: -30 to 80 °C
    Storage: -40 to 85°C

    湿度

    Operating: 5 to 90% RH
    Storage: 5 to 90% RH

    MTBF

    i.MX 8M Plus Quad: 632,710 hrs @ 25°C; 386,370 hrs @ 45°C ; 252,204 hrs @ 60°C; 138,544 hrs @ 80°C
    Calculation model: Telcordia Issue 4
    Environment: GB, GC – Ground Benign, Controlled

    机械结构

    尺寸

    3.5" SBC Form Factor
    146mm (5.75") x 102mm (4.02")

    高度

    PCB: 1.6mm
    Top Side: 15mm
    Bottom Side: 4mm

    安规认证

    认证

    CE, FCC, RoHS, UKCA
