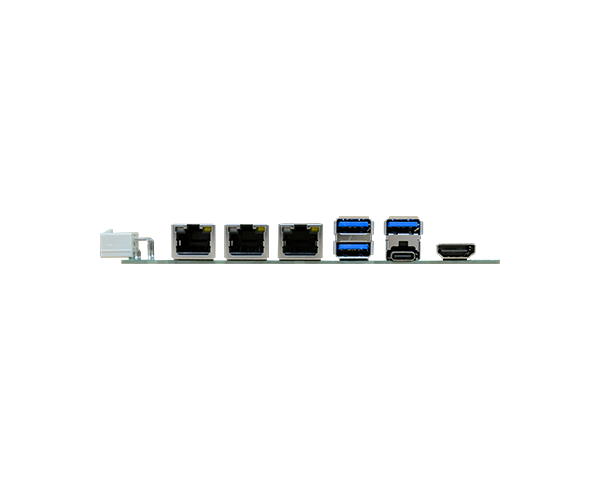

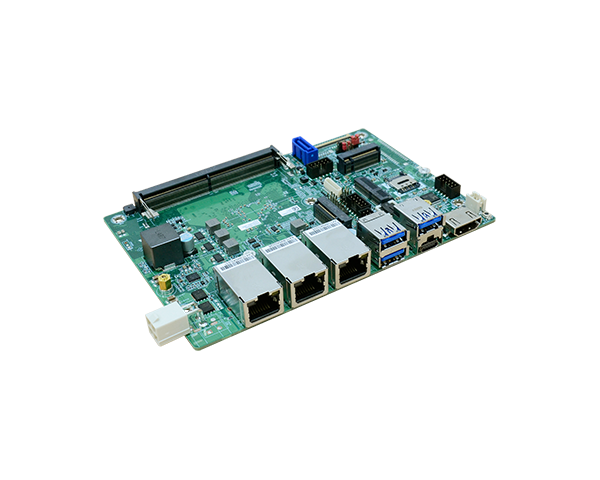

3.5寸工业主板-EBC-3502
★1 DDR5 SO-DIMM
★4K High Resolution: Supports 4K/ 2K resolution
★Triple Display: 1 HDMI, 1 Type-C DP Alt. Mode, 1 LVDS/eDP
★Rich I/O Connectivity: 3 2.5GbE LAN, 4 USB 3.2, 2 USB 2.0, 1 SATA
★Multiple Expansion: 1 M.2 M Key, 1 M.2 B Key, 1 M.2 E Key
★Typically supports 10-Year CPU Life Cycle Until Q1’ 33 (Based on Intel IOTG Roadmap), and available for an additional 5 years support under SPS Process.
-
系统
处理器
Intel® Atom® Alder Lake-N Processors, TDP up to 15W
· Embedded
Intel Atom® x7425E, 4 cores, 6M Cache, up to 3.40 GHz, 12W
Intel Atom® x7213E, 2 cores, 6M Cache, up to 3.20 GHz, 10W
Intel Atom® x7211E, 2 cores, 6M Cache, up to 3.20 GHz, 6W
· PC Client
Intel® Core™ i3-N305, 8 cores, 6M Cache, up to 3.80 GHz, 15W
Intel® Processor N200, 4 cores, 6M Cache, up to 3.70 GHz, 6W
Intel® Processor N97, 4 cores, 6M Cache, up to 3.60 GHz, 12W
Intel® Processor N50, 2 cores, 6M Cache, up to 3.40 GHz, 6W内存
One 262-pin SODIMM up to 16GB
Single Channel DDR5 4800MHzBIOS
AMI SPI 256Mbit
显示
控制器
Intel® UHD Graphics
特性
OpenGL 4.6, Direct X 12.1, OpenCL 3.0
HW Decode: HEVC, VP9, AV1, AVC
HW Encode: HEVC, VP9, AVC显示器
1 x HDMI
1 x Type-C DP Alt. Mode
1 x LVDS/eDP
HDMI: resolution up to 4096x2160@24Hz
DP: resolution up to 3840x2160 @60Hz
LVDS: dual channel 24-bit, resolution up to 1920x1200@60Hz
eDP: resolution up to 4096x2160 @60Hz三重显示
HDMI + Type-C DP Alt. Mode + LVDS/eDP
扩充
界面
1 x M.2 M key 2280/2242 (PCIe Gen3 x1/SATA3.0)
1 x M.2 B key 3052/3042 (USB3.0/USB2.0, optional PCIe x1), 1 x SIM slot for 4G/5G
1 x M.2 E key 2230 (USB/PCIe x1, support CNVi)音讯
音讯编译码器
Realtek ALC888S
以太网路
控制器
3 x Intel® I226V/IT(10/100/1000/2500Mbps). LAN3 option with M.2 3052 PCIe x1.
背板输入/输出
以太网络
3 x 2.5GbE (RJ-45)
USB
4 x USB 3.2
显示
1 x HDMI
1 x Type-C DP Alt. Mode
1 x LVDS/eDP内部输入/输出
串行端口
1 x RS-232/422/485 (2.0mm pitch)
USB
2 x USB 2.0 (2.0mm pitch)
显示
1 x LVDS LCD Panel Connector
1 x LCD/Inverter Power音效
1 x Audio (Line-out/Mic-in)
SATA
1 x SATA 3.0 (up to 6Gb/s)
1 x SATA PowerDIO
1 x 8-bit DIO
监视定时器
看门狗定时器
System Reset, Programmable via Software from 1 to 255 Seconds
安全性
信赖平台模块
dTPM2.0
电源
类型
Wide Range 9~36V DC
端口
Right Angle Connector (4-pin)
DC-in Jack (available upon request)
Vertical Type Connector (4-pin) (available upon request)耗能
Typical: i3-N305, 19V @ 0.45A (8.55W)
Max: i3-N305, 19V @ 2.7A (51.3W)RTC 电池
CR2032 Coin Cell
支持操作系统
支持操作系统 (UEFI Only)
Windows 10 IoT Enterprise (64-bit)
Windows 11
Linux环境指标
温度
Operating: -5 to 65C
Storage: -40 to 85°C湿度
Operating: 5 to 90% RH
Storage: 5 to 90% RHMTBF
593,096 hrs @ 25°C; 398,330 hrs @ 45°C; 276,293 hrs @ 60°C
Calculation Model: Telcordia Issue 4
Environment: GB, GC - Ground Benign, Controlled机械结构
尺寸
3.5" SBC Form Factor
146mm (5.75") x 102mm (4.02")高度
PCB: 1.6mm
Top Side: 15.0mm
Bottom Side: 4.0mm安规认证
认证
CE, FCC Class B, RoHS, UKCA
-
-
