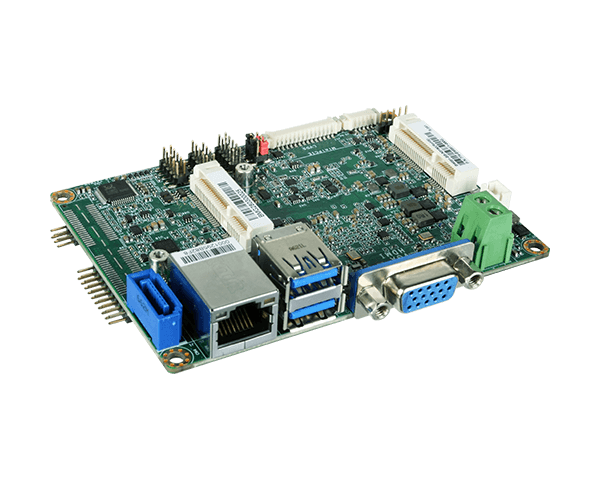

2.5寸工业主板-EBC-2565

★Intel® Pentium®/Celeron® N3000 2.5" Pico-ITX
★1 DDR3L SODIMM 至 8GB
★双重独立显示: VGA*/HDMI + LVDS
★扩充插槽及儲存: 1 Mini PCIe, 1 mSATA, 1 SATA 3.0
★丰富I/O: 1 Intel 网口, 2 串口, 2 USB 3.0, 2 USB 2.0
★15年CPU长期支持至Q1' 30 (Based on Intel IOTG Roadmap)
ꄴ上一个： 无
ꄲ下一个： 2.5寸工业主板-EBC-2563

  • 系统



    处理器

    Intel® Pentium®/Celeron® Processor N3000 Family, BGA 1170
    Intel Atom® Processor x5-E8000, Quad Core, 2M Cache, 1.04GHz, 5W
    Intel® Pentium® Processor N3710, Quad Core, 2M Cache, 1.6GHz (2.56GHz), 6W
    Intel® Celeron® Processor N3160, Quad Core, 2M Cache, 1.6GHz (2.24GHz), 6W
    Intel® Celeron® Processor N3060, Dual Core, 2M Cache, 1.6GHz (2.48GHz), 6W
    Intel® Celeron® Processor N3010, Dual Core, 2M Cache, 1.04GHz (2.24GHz), 4W

    内存

    One 204-pin SODIMM up to 8GB
    Single Channel DDR3L 1600MHz

    BIOS

    Insyde SPI 64Mbit

    显示

    控制器

    Intel® HD Graphics

    特性

    OpenGL 4.2, Direct X 11.1, OpenCL 1.2, OGL ES 3.0
    HW Decode: H.264, MPEG2, VC1, VP8, H.265, MPEG4
    HW Encode: H.264, MPEG2, MPEG4

    显示器

    1 x VGA/HDMI
    1 x LVDS
    VGA: resolution up to 1920x1200 @ 60Hz
    HDMI: resolution up to 1920x1080 @ 60Hz
    LVDS: single channel 24-bit, resolution up to 1366x768 @ 60Hz

    双重显示

    VGA + LVDS, HDMI + LVDS

    扩充

    界面

    1 x Half-size mSATA (SATA)
    1 x Full-size Mini PCIe (PCIe/USB)
    1 x Extension I/O connector (available upon request)

    音讯

    音讯编译码器

    Realtek ALC888S-VD2-GR

    以太网路

    控制器

    1 x Intel® I211AT PCIe (10/100/1000Mbps)

    背板输入/输出

    以太网络

    1 x GbE (RJ-45)

    USB

    2 x USB 3.0

    显示

    1 x VGA/HDMI

    内部输入/输出

    串行端口

    1 x RS-232/422/485 (2.0mm pitch, right angle type)
    1 x RS-232 (2.0mm pitch, right angle type)

    USB

    2 x USB 2.0 (2.0mm pitch)

    显示

    1 x LVDS LCD Panel Connector

    音效

    1 x Audio (Line-out/Mic-in)

    SATA

    1 x SATA 3.0 (up to 6Gb/s)

    DIO

    1 x 8-bit DIO

    SMBus

    1 x SMBus

    监视定时器

    看门狗定时器

    System Reset, Programmable via Software from 1 to 255 Seconds

    安全性

    信赖平台模块

    Available Upon Request

    电源

    类型

    Single 12V +/-10% DC

    端口

    2-pin Terminal Block

    耗能

    BW051
    Typical: N3710:12V @ 0.47A (5.64Watt)
    Max.: N3710:12V @ 1.0864A (13.037Watt)

    RTC 电池

    Lithium 3V (210mAH)

    支持操作系统

    支持操作系统

    Windows 7 (WES7) 32/64-bit
    Windows 8.1 (64-bit)
    Windows 10 IoT Enterprise 32/64-bit
    Debian 8 (with VESA graphic driver)
    CentOS 7 (with VESA graphic driver)
    Linux

    环境指标

    温度

    Operating: 0 to 60°C
    Storage: -40 to 85°C

    湿度

    Operating: 5 to 90% RH
    Storage: 5 to 90% RH

    机械结构

    尺寸

    2.5" Pico-ITX Form Factor
    100mm (3.94") x 72mm (2.83")

    高度

    PCB: 1.6mm
    Top Side: 15.5mm
    Bottom Side: 8.0mm
