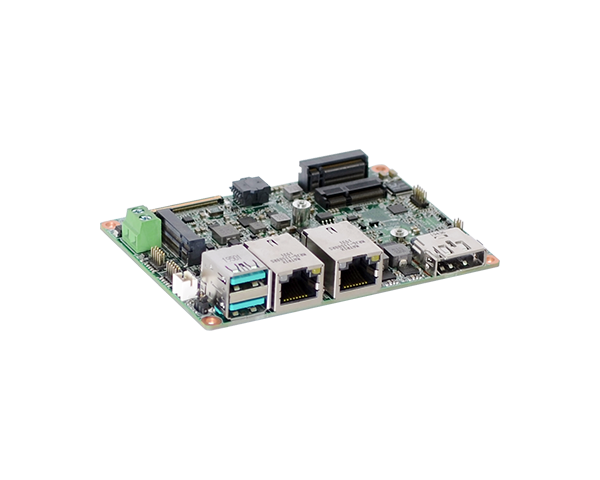

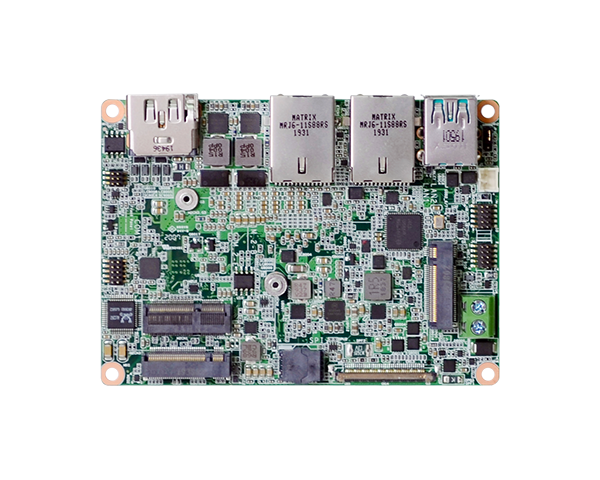

2.5寸工业主板-EBC-2559
★Small form factor 2.5" Pico-ITX for space-limited applications
★1 DDR4 SODIMM up to 32GB
★Dual independent displays: DP++/HDMI + eDP
★Expansion and Storage: 1 M.2 E key, 2 M.2 B key
★Rich I/O: 2 Intel GbE, 1 COM, 2 USB 3.1 Gen 2, 2 USB 2.0
★15-Year CPU Life Cycle Support Until Q2' 35 (Based on Intel IOTG Roadmap)
-
系统
处理器
8th Generation Intel® Core™ Processors, BGA 1528
Intel® Core™ i7-8665UE, Quad Core, 8M Cache, 1.7GHz (4.4GHz), 15W
Intel® Core™ i5-8365UE, Quad Core, 6M Cache, 1.6GHz (4.1GHz), 15W
Intel® Core™ i3-8145UE, Dual Core, 4M Cache, 2.2GHz (3.9GHz), 15W
Intel® Core™ Celeron® 4305UE, Dual Core, 2M Cache, 2.0GHz (2.0GHz), 15W内存
One 260-pin SODIMM up to 32GB
Single Channel DDR4 up to 2400MHzBIOS
AMI SPI 128Mbit
显示
控制器
Intel® UHD Graphics 620/ Intel® UHD Graphics 610 (for Celeron 4305UE)
特性
OpenGL 4.5, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: AVC/H.264, MPEG2, JPEG, HEVC/H265, VP8, VP9显示器
1 x DP++/HDMI
1 x eDP
DP++: resolution up to 4096x2304 @ 60Hz
HDMI: resolution up to 4096x2160 @30Hz
eDP: resolution up to 4096x2304 @ 60Hz双重显示
DP++/HDMI + eDP
扩充
界面
1 x M.2 E key 2230 (PCIe x2/USB 2.0)
2 x M.2 B key 3042/2242 (PCIe x1 or SATA 3.0/USB 3.1 Gen1/USB 2.0)音讯
音讯编译码器
Realtek ALC888S-VD2-GR
以太网路
控制器
1 x Intel® I219V or I219LM (only Core i7/i5 supports iAMT)

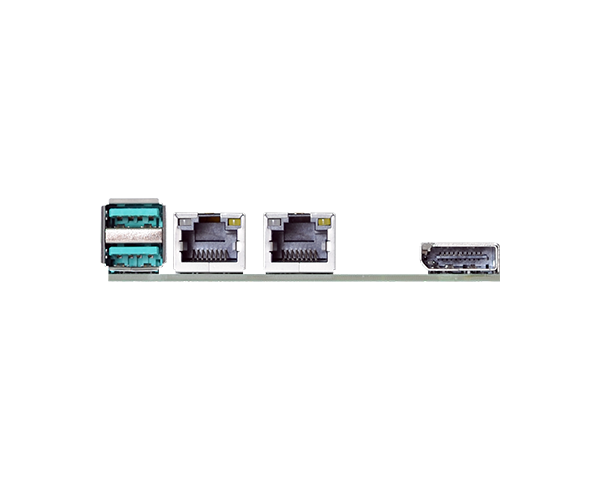

1 x Intel® I211AT or I210IT背板输入/输出
以太网络
2 x GbE (RJ-45)
USB
2 x USB 3.1 Gen 2
显示
1 x COMBO port (DP++/HDMI)
1 x eDP内部输入/输出
串行端口
1 x RS-232/422/485 (1.27mm pitch)
USB
2 x USB 2.0 (1.27mm pitch)
显示
1 x eDP Connector
音效
1 x Audio (Line-out/Mic-in)
DIO
1 x 8-bit DIO
SMBus
1 x SMBus
监视定时器
看门狗定时器
System Reset, Programmable via Software from 1 to 255 Seconds
安全性
信赖平台模块
fTPM2.0
电源
类型
Single 12V +/-10% DC
端口
2-pin Terminal Block
耗能
Typical: 8665UE:12V @ 0.51A (6.12Watt)
Max.: 8665UE:12V @ 2.26A (27.12Watt)RTC 电池
CR2032 Coin Cell
支持操作系统
支持操作系统 (UEFI Only)
Windows 10 IoT Enterprise (64-bit)
Linux环境指标
温度
Operating: -5 to 65°C, -30 to 80°C
Storage: -40 to 85°C湿度
Operating: 5 to 90% RH
Storage: 5 to 90% RHMTBF
4305UE: 564,107 hrs @ 25°C; 402,731 hrs @ 45°C ; 293,920 hrs @ 60°C; 182,929 hrs @ 80°C
Calculation model: Telcordia Issue 4
Environment: GB, GC – Ground Benign, Controlled机械结构
尺寸
2.5" Pico-ITX Form Factor 100mm (3.94") x 72mm (2.83")
高度
PCB: 1.6mm
Top Side: 15mm
Bottom Side: 8mm安规认证
认证
CE, FCC, RoHS, KC
-
-
