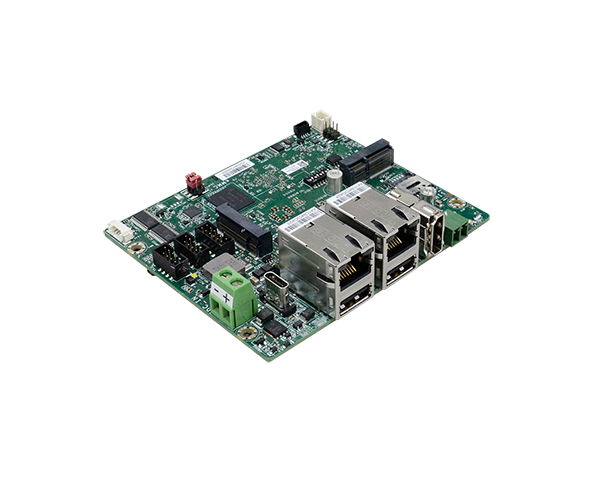

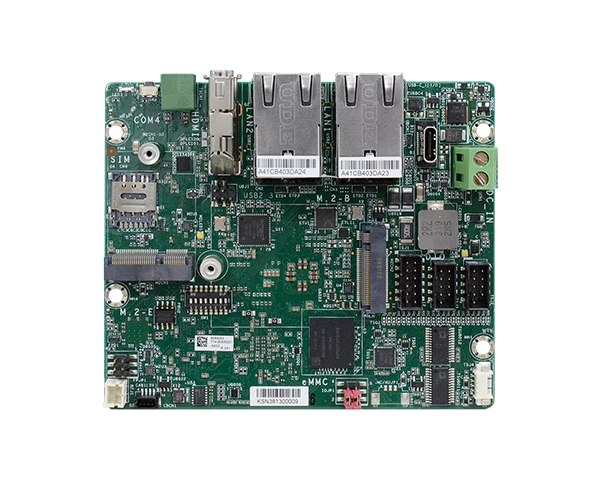

2.5寸工业主板-EBC-2557
★1 LPDDR4 3200MHz memory down
★Support FHD High Resolution
★Multiple Expansion: 1 M.2 B Key, 1 M.2 E Key
★Rich I/O: 2 GbE, 2 USB 2.0 1 RS-485, 2 RS-232, RS-422, DIO
-
系统
处理器
NXP i.MX 8M mini applications processors
NXP i.MX 8M mini Quad Cortex-A53 1.8GHz (Consumer)
NXP i.MX 8M mini Quad Cortex-A53 1.6GHz (Industrial)内存
4GB Memory Down (1GB/2GB by project support)
Single Channel LPDDR4显示
控制器
2D-GC320
3D-GC NanoULTRA特性
OpenGL® ES 2.1
VPU Decode: 1080p60 HEVC, H.264, VP9, VP8
VPU Encode: 1080p60 H.264, VP8显示器
1 x HDMI (default)
HDMI: resolution up to 1920x1080 @60Hz单显示
HDMI
扩充
界面
1 x M.2 B key 3042/2242 (USB 2.0), Nano SIM slot support
1 x M.2 E key 2230 (USB 2.0)以太网路
控制器
1 x RTL8211 Ethernet (10/100/1000Mbps)

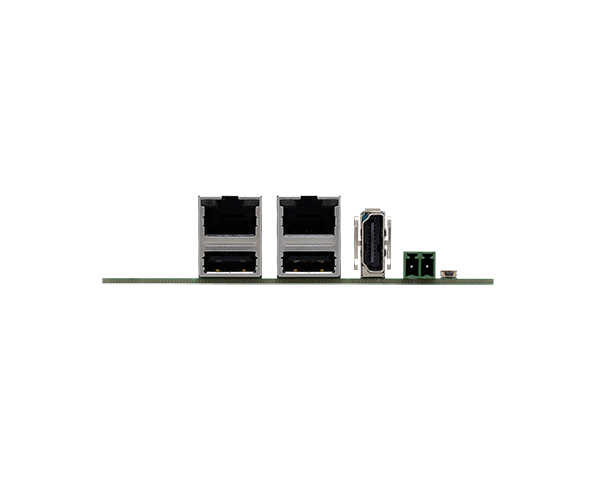

背板输入/输出
以太网络
2 x GbE (RJ-45)
串口
1 x RS-485(2 poles terminal block )
USB
2 x USB 2.0
1 x Reset Button显示
1 x HDMI
内部输入/输出
串行端口
2 x RS-232 (2 x 5 header, 2mm pitch)
USB
1 x USB 2.0 (2mm pitch)
SD
1 x Micro SD Slot
I2C
1 x I2C (1.25mm pitch)
其他 输入/输出
DIO (4 DIO/PWR/GND) and RS-422(4pin) (2 x 6 header, 2mm pitch)
eMMC
Support eMMC 5.1 8GB on board (default)
Support up to 64GB (opt.)监视定时器
看门狗定时器
System Reset, Programmable via Software from 1 to 255 Seconds
电源
类型
DC 9V to 36V
端口
2-poles Terminal Block (default)
RTC 电池
CR2032 with cable
支持操作系统
支持操作系统
Yocto 3.3 on eMMC (default)
环境指标
温度
Operating: -5 to 65°C; -40 to 80°C
Storage: -40 to 85°C湿度
Operating: 5 to 90% RH
Storage: 5 to 90% RH机械结构
尺寸
100mm (3.94") x 85mm (3.35")
高度
PCB: 1.6mm
Top Side: 22.64mm
Bottom Side: 4mm安规认证
认证
CE, FCC Class A, RoHS
-
-
