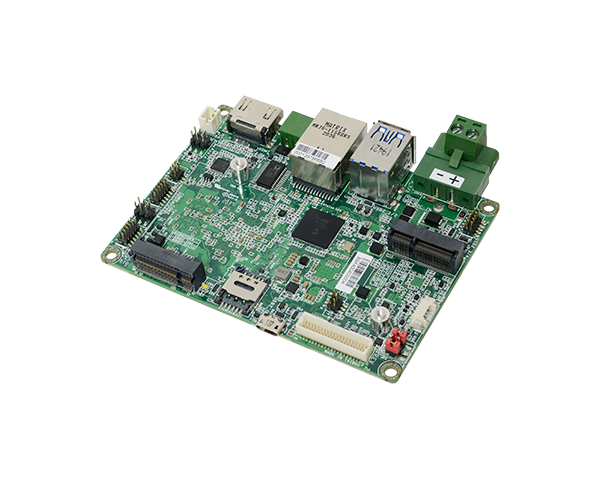

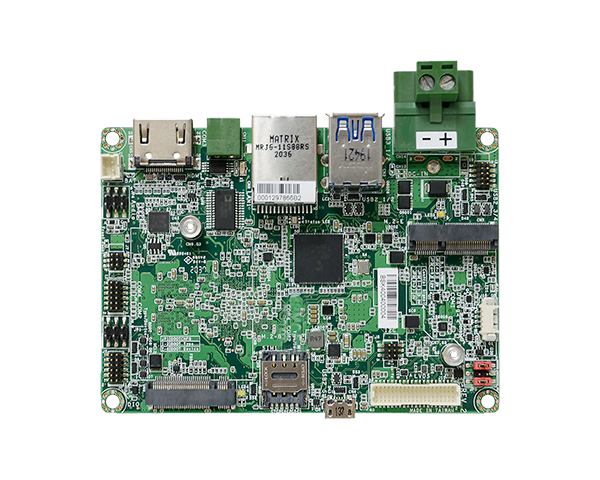

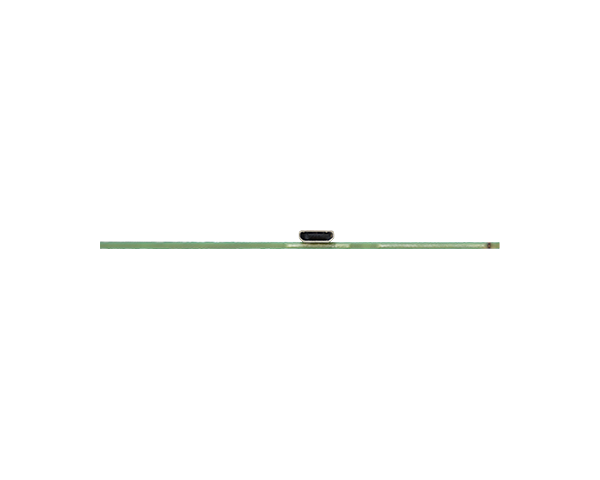

2.5寸工业主板-EBC-2556

★NXP i.MX 8M Processors
★Single Channel LPDDR4 up to 3200 MHz
★Single Display: HDMI/LVDS
★HDMI: resolution up to 4096x2160 @60Hz / LVDS: resolution up to 1920x1080 @60Hz
★Multiple Expansion: 1 M.2 B Key, 1 M.2 E Key
★Rich I/O: 1 Intel GbE, 3 COM, 2 USB 3.1 Gen1, 3 USB 2.0
★15-Year CPU Life Cycle Support Until Q1' 33 (Based on NXP Roadmap)
ꄴ上一个： 2.5寸工业主板-EBC-2557
ꄲ下一个： 2.5寸工业主板-EBC-2555

  • 系统



    处理器

    i.MX 8M applications processors
    NXP i.MX 8M Quad Cortex-A53, 1.5GHz (Commercial)
    NXP i.MX 8M Dual Cortex-A53, 1.5GHz (Commercial)
    NXP i.MX 8M Quad Cortex-A53, 1.3GHz (Industrial)
    NXP i.MX 8M Dual Cortex-A53, 1.3GHz (Industrial)

    内存

    2GB/4GB Memory Down
    Single Channel LPDDR4 up to 3200 MHz

    显示

    控制器

    GC7000 Lite

    特性

    OpenVG 1.1, OGL ES 3.1, Vulkan, OCL 1.2 FP
    VPU Decode: 4Kp60 HEVC H.265, VP9, 4Kp60 H.264

    显示器

    1 x HDMI (default)
    1 x LVDS
    HDMI: resolution up to 4096x2160 @60Hz
    LVDS: resolution up to 1920x1080 @60Hz

    单显示

    HDMI or LVDS

    扩充

    界面

    1 x M.2 B key 3042/2242 (USB 3.1 Gen1), Nano SIM slot support
    1 x M.2 E key 2230 (PCIe x1/USB 2.0)

    音讯

    音讯编译码器

    SGTL5000

    以太网路

    控制器

    1 x AR8035 Ethernet (10/100/1000Mbps)

    背板输入/输出

    以太网络

    1 x GbE (RJ-45)

    串口

    1 x RS485

    USB

    2 x USB 3.1 Gen1
    1 x Micro USB 2.0 (Download mode)

    显示

    1 x HDMI

    内部输入/输出

    串行端口

    1 x RS232
    1 x RS-232/422/485 (2 x 6 pin header, 1.27mm pitch)

    USB

    2 x USB 2.0 (1.27mm pitch)

    显示

    1 x LVDS LCD Panel Connector
    1 x Backlight Power

    音效

    1 x Audio (Line-out/Mic-in, 2.00mm pitch)

    DIO

    1 x 8-bit DIO (2 x 6 header, 1.27mm pitch)

    SD

    1 x Micro SD Slot

    CANBus

    1 x CANBus 2.0

    I2C

    1 x I2C (1.27mm pitch)

    eMMC

    Support eMMC 5.1 16GB on board (default)
    Support up to 64GB (opt.)

    监视定时器

    看门狗定时器

    System Reset, Programmable via Software from 1 to 255 Seconds

    电源

    类型

    Single 12V +/-10% DC

    端口

    2-poles Terminal Block (default)
    DC Jack (available upon request)

    耗能

    Typical: Quad:12V @ 0.2A (2.4Watt)
    Max.: Quad:12V @ 0.38A (4.56Watt)

    RTC 电池

    CR2032 Coin Cell

    支持操作系统

    支持操作系统

    Yocto 2.5 on eMMC (default)
    Android 9.0 (option)

    环境指标

    温度

    Operating: -5 to 65°C; -30 to 80 °C
    Storage: -40 to 85°C

    湿度

    Operating: 5 to 90% RH
    Storage: 5 to 90% RH

    MTBF

    i.MX 8MQuad: 1,311,832 hrs @ 25°C; 637,427 hrs @ 45°C; 374,475 hrs @ 60°C; 189,510 hrs @ 80°C
    Calculation model: Telcordia Issue 4
    Environment: GB, GC – Ground Benign, Controlled

    机械结构

    尺寸

    2.5" SBC Form Factor
    100mm (3.94") x 72mm (2.83")

    高度

    PCB: 1.6mm
    Top Side: 15mm
    Bottom Side: 4mm

    安规认证

    认证

    CE, FCC, RoHS, UKCA
