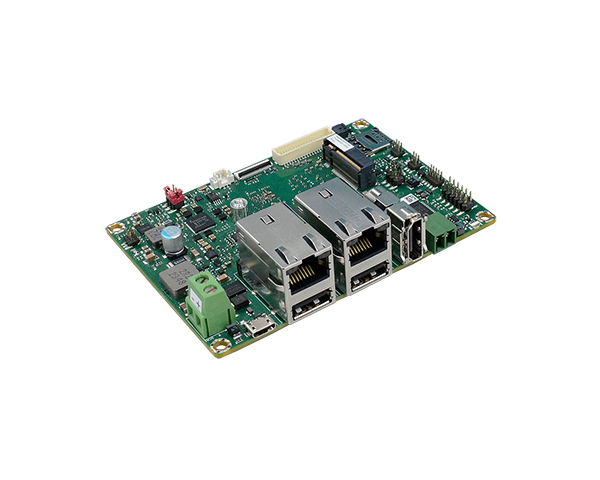

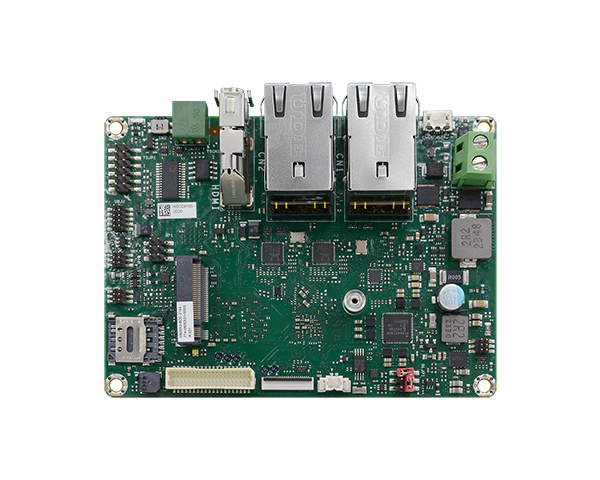

2.5寸工业主板-EBC-2553

★NXP i.MX93 platform, target on entry level application
★Wide Voltage support 9~36VDC
★Two GbE Lan for automation application
★CAN bus support
★M.2 3042 support
★15-Year CPU Life Cycle Support Until Q2' 38 (Based on NXP Roadmap)
ꄴ上一个： 2.5寸工业主板-EBC-2555
ꄲ下一个： 2.5寸工业主板-EBC-2552

  • 系统



    处理器

    i.MX 93 applications processor
    MIMX9352CVVXMAB, Dual core, 1.7GHz, NPU, -40°C~105°C

    内存

    2GB LPDDR4 Memory Down

    显示

    控制器

    2D Graphics: PXP Engine

    特性

    Blending/Composition, Resize, Color Space Conversion

    显示器

    1 x HDMI 1.4
    1 x LVDS

    HDMI: resolution up to 1920x1080 @60Hz
    LVDS: resolution up to 1366x768 @60Hz

    单显示

    LVDS or HDMI

    储存

    eMMC

    1 x eMMC 5.1 with default 16GB (up to 64GB)

    扩充

    界面

    1 x M.2 B key 3042 (USB 2.0)
    1 x Nano SIM slot

    以太网路

    PHY

    RTL8211

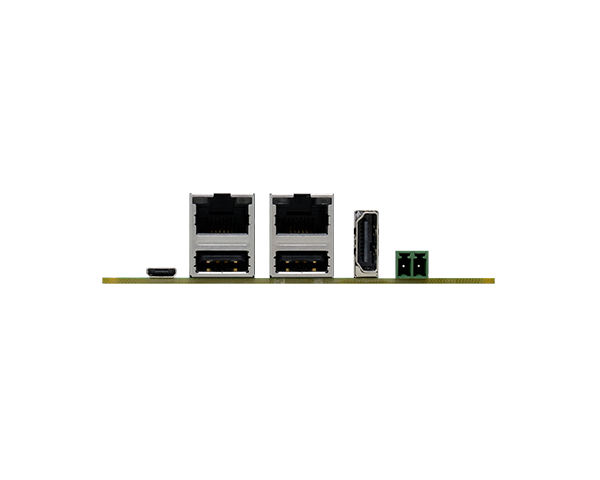

    背板输入/输出

    以太网络

    2 x GbE (RJ-45)

    串口

    1 x RS485 (2-wire)

    USB

    2 x USB 2.0
    1 x Micro USB 2.0 (OTG)

    显示

    1 x HDMI

    下载模式开关

    1 x Download mode switch

    内部输入/输出

    串行端口

    1 x RS232, 1x RS232/422/485 on 2x6 header

    USB

    2 x USB 2.0

    显示

    1 x LVDS LCD Panel connector (Default: 12V/Opt.: 5V)
    1 x LCD Backlight Power (Default: 5V/Opt.: 3.3V)

    DIO

    1 x 8-bit DIO

    SD

    1 x uSD card

    CANBus

    1 x CAN bus 2.0b

    I2C

    1 x I2C / Touch

    其他 输入/输出

    1 x SPI, 1 x Front Panel, 1 x UART debug

    镜头

    1 x MIPI-CSI for 2-lanes camera, reference to RPI-CAM-MIPI Camera adapter (AR0144 Sensor)

    监视定时器

    看门狗定时器

    System Reset, Programmable via Software from 1 to 255 Seconds

    电源

    类型

    Wide Range 9~36VDC

    端口

    2-pole terminal block

    耗能

    TBC

    RTC 电池

    CR2032 Coin Cell

    支持操作系统

    Linux

    Linux Yocto 4.2 (Kernel 6.1.36)

    环境指标

    温度

    Operating: -5°C ~ 65°C (-30°C ~ 80°C, TBC)
    Storage: -40°C ~ 85°C

    湿度

    Operating: 5% ~ 90% RH
    Storage: 5% ~ 90% RH

    MTBF

    MIMX9352CVVXMAB, Dual core: 778,719 hrs @ 25°C; 497,925 hrs @ 45°C ; 331,500 hrs @ 60°C; 247,941 hrs @ 70°C
    Calculation model: Telcordia Issue 4
    Environment: GB, GC – Ground Benign, Controlled

    机械结构

    尺寸

    2.5" SBC Form Factor
    100mm (3.94") x 72mm (2.83")

    高度

    PCB: 1.6mm
    Top Side: TBC
    Bottom Side: TBC

    安规认证

    认证

    CE, FCC, RoHS, UKCA
