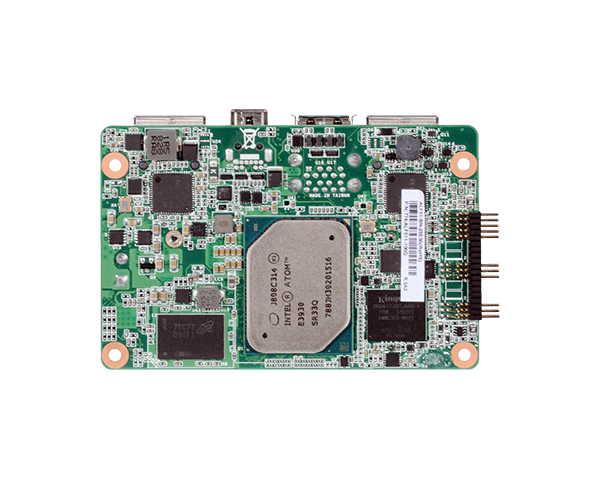

1.8寸工业主板-EBC-1803
★2GB/4GB/8GB LPDDR4 板贴内存
★1 Mini DP++
★丰富 I/O: 2 Intel GbE, 1 COM, 2 USB 3.1 Gen 1, 1 USB 2.0
★15年CPU长期支持至Q4' 31 (Based on Intel IOTG Roadmap)
-
系统
处理器
Intel Atom® Processor E3900 Family, BGA 1296
Intel Atom® x5-E3940 Processor, Quad Core, 2M Cache, 1.6GHz (1.8GHz), 9.5W
Intel Atom® x5-E3930 Processor, Dual Core, 2M Cache, 1.3GHz (1.8GHz), 6.5W
Intel® Pentium® Processor N4200, Quad Core, 2M Cache, 1.1GHz (2.5GHz), 6W
Intel® Celeron® Processor N3350, Dual Core, 2M Cache, 1.1GHz (2.4GHz), 6W内存
2GB/4GB/8GB LPDDR4 Memory Down
Single Channel LPDDR4 2400MHzBIOS
Insyde SPI 128Mbit (supports UEFI boot only)
显示
控制器
Intel® HD Graphics
特性
OpenGL 4.2, Direct X 11.1, OpenCL 1.2, OGL ES 3.0
HW Decode: H.264, MPEG2, VC1, VP8, H.265, MPEG4
HW Encode: H.264, MPEG2, MPEG4显示器
1 x Mini DP++
Mini DP++: resolution up to 4096x2160 @ 60Hz储存
eMMC
1 x 16GB/32GB/64GB eMMC
扩充
界面
1 x Full-size Mini PCIe (PCIe/USB 2.0, optional USB 3.1 Gen1/USB 2.0)
以太网路
控制器
2 x Intel® I210AT PCIe (10/100/1000Mbps) or

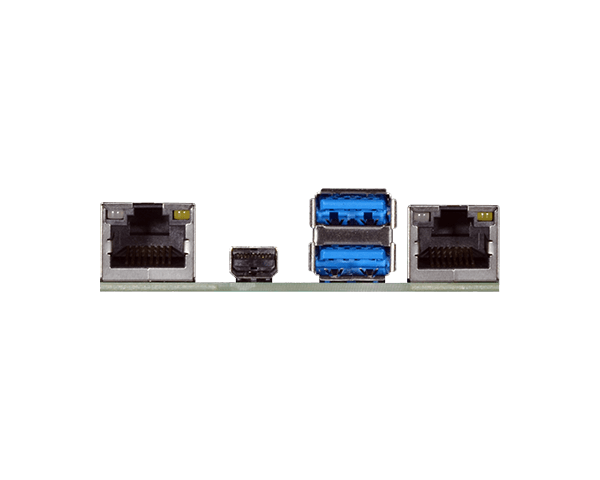

2 x Intel® I210IT PCIe (10/100/1000Mbps)背板输入/输出
以太网络
2 x GbE (RJ-45)
USB
2 x USB 3.1 Gen 1
显示
1 x Mini DP++
内部输入/输出
串行端口
1 x RS-232/422/485 (1.27mm pitch)
USB
1 x USB 2.0 (1.27mm pitch)
DIO
1 x 8-bit DIO
SMBus
1 x SMBus
监视定时器
看门狗定时器
System Reset, Programmable via Software from 1 to 255 Seconds
安全性
信赖平台模块
fTPM 2.0
电源
类型
Single 12V +/-10% DC
端口
2-pin Terminal Block
耗能
Typical: E3940:12V @ 0.29A (3.48Watt)
Max.: E3940:12V @ 1.30A (15.6Watt)RTC 电池
CR2032 Coin Cell
支持操作系统
支持操作系统 (UEFI Only)
Windows 10 IoT Enterprise 64-bit
Linux环境指标
温度
Operating: 0 to 60°C (Option: -20 to 70°C / -40 to 85 °C)
Storage: -40 to 85°C湿度
Operating: 5 to 90% RH
Storage: 5 to 90% RHMTBF
868,962 hrs @ 25°C; 638,889 hrs @ 45°C ; 465,382 hrs @ 60°C
机械结构
尺寸
1.8" SBC Form Factor
84mm (3.31") x 55mm (2.17")高度
PCB: 1.6mm
Top Side: 16.34mm
Bottom Side: 3.4mm安规认证
认证
CE, FCC, RoHS
-
-
