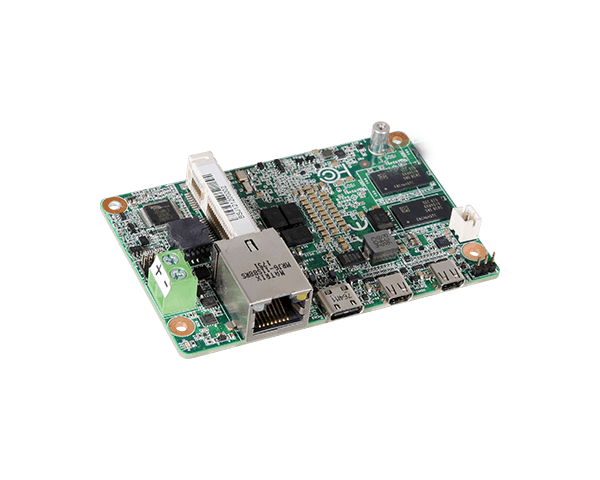

1.8寸工业主板-EBC-1802
★Small form factor 1.8" SBC for space-limited applications
★Single Channel DDR4 Memory Down up to 4GB/8GB
★HDMI 1.4 resolution supports up to 4096x2160 @ 24Hz
★Expansion and Storage: 1 Mini PCIe, 1 SMBus
★Rich I/O: 1 Intel GbE, 1 USB 3.1 Gen 2, 2 Micro HDMI
★10-Year CPU Life Cycle Support Until Q1' 30 (Based on AMD Roadmap)
-
系统
处理器
AMD® Ryzen™ Embedded R1606G, Dual Core, 1MB Cache, 3 CU, 2.6GHz, 12W
AMD® Ryzen™ Embedded R1505G, Dual Core, 1MB Cache, 3 CU, 2.4GHz, 12W
AMD® Ryzen™ Embedded R1305G, Dual Core, 3 CU, 1.5GHz, 8-10W
AMD® Ryzen™ Embedded R1102G, Dual Core, 3 CU, 1.2GHz, 6W内存
DDR4 Memory Down up to 4GB/8GB
Single Channel DDR4 2400MHzBIOS
AMI SPI 64Mbit
显示
控制器
AMD Vega GPU with up to 3 computing units.
特性
H.265 decode/encode support, VP9 decode.
显示器
2 x Micro HDMI
HDMI 1.4: resolution up to 4096x2160 @ 24Hz
储存
eMMC
1 x 16GB/32GB/64GB eMMC
扩充
界面
1 x Full-size Mini PCIe (PCIe Gen2/USB 2.0, opt: USB 3.1 Gen2/USB 2.0)
以太网路
控制器
1 x Intel® I211AT PCIe (10/100/1000Mbps) or

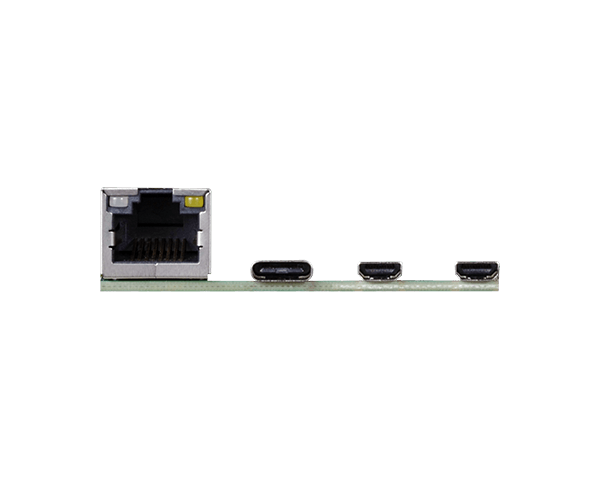

1 x Intel® I210IT PCIe (10/100/1000Mbps)背板输入/输出
以太网络
1 x GbE (RJ-45)
USB
1 x Type C USB 3.1 Gen 2
显示
2 x Micro HDMI (HDMI 1.4)
内部输入/输出
DIO
1 x 8-bit DIO
SMBus
1 x SMBus
监视定时器
看门狗定时器
Software Reset, Programmable via Software from 1 to 655,535 Seconds
安全性
信赖平台模块
fTPM 2.0
电源
类型
Single 12V +/-5% DC
端口
2-pin Terminal Block
耗能
Typical: R1505G: 12V @ 0.37A (4.44W)
Max: R1505G: 12V @ 1.74A (20.88W)RTC 电池
CR2032 Coin Cell
支持操作系统
支持操作系统 (UEFI Only)
Windows 10 IoT Enterprise 64-bit
Ubuntu环境指标
温度
Operating: 0 to 60°C/ -20 to 70°C(opt.)
Storage: -40 to 85°C湿度
Operating: 5 to 90% RH
Storage: 5 to 90% RHMTBF
872,484 hrs @ 25℃; 635,789 hrs @ 45℃; 460,442 hrs @ 60℃
机械结构
尺寸
1.8" SBC Form Factor
84mm (3.31") x 55mm (2.17")高度
PCB: 1.60mm
Top Side: 13.8mm, Bottom Side: 2.00mm安规认证
认证
CE, FCC, RoHS, UKCA
-
-
