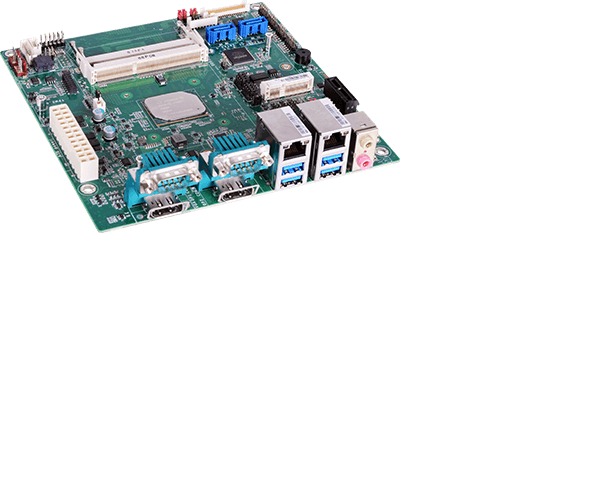

AL170 Intel® Atom™ Processor E3900 Mini-ITX
■2 DDR3L 1867MHz SODIMM up to 8GB
■Three independent displays: (VGA/DP++) + (DP++) + (LVDS/eDP)
■Rich I/O: 2 Intel GbE, 6 COM, 4 USB 3.0, 6 USB 2.0
■Multiple expansion: 1 M.2 M Key, 1 PCIe x1 (Gen 2), 1 Full-Sized Mini PCIe
■15-Year CPU Life Cycle Support Until Q4' 31 (Based on Intel IOTG Roadmap)
-
系统
处理器
Intel Atom® Processor E3900 Family, BGA 1296
Intel Atom® x7-E3950 Processor, Quad Core, 2M Cache, 1.6GHz (2.0GHz), 12W
Intel Atom® x5-E3940 Processor, Quad Core, 2M Cache, 1.6GHz (1.8GHz), 9.5W
Intel Atom® x5-E3930 Processor, Dual Core, 2M Cache, 1.3GHz (1.8GHz), 6.5W
Intel® Pentium® N4200 Processor, Quad Core, 2M Cache, 1.1GHz (2.5GHz), 6W
Intel® Celeron® Processor N3350, Dual Core, 2M Cache, 1.1GHz (2.4 GHz), 6W
内存
Two 204-pin SODIMM up to 8GB
Dual Channel DDR3L 1867MHz
BIOS
SPI 64Mbit (supports UEFI boot only)
显示
控制器
Intel® HD Graphics GT Series
特性
OpenGL 5.0, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H.265, VP8, VP9, MVC
HW Encode: AVC/H.264, JPEG/MJPEG, HEVC/H.265, VP8, VP9, MVC
显示器
1 x VGA/DP++
1 x DP++
1 x LVDS/eDP VGA: resolution up to 2560x1600 @ 60Hz
LVDS: dual channel 48-bit, resolution up to 1920x1200 @ 60Hz
DP++: resolution up to 4096x2160 @ 60Hz
eDP: resolution up to 4096x2160 @ 60Hz
三重显示
VGA + DP++ + LVDS
VGA + DP++ + eDP DP++ + DP++ + LVDS
DP++ + DP++ + eDP
扩充
界面
1 x PCIEx (Gen2, signal share w/M.2)
1 x M.2 M key (support 2242/2280, PCIE&SATA signal, default SATA)
1 x Full-size Mini PCIe (PCIe2.0/USB2.0)(USB3.1 Gen 1)(opt.)
音讯
音讯编译码器
Realtek ALC262-VC2-GR
以太网路
控制器
-40 to 85°C: 2 x Intel® I210IT PCIe (10/100/1000Mbps) or
0 to 60°C: 2 x Intel® I211AT PCIe (10/100/1000Mbps)

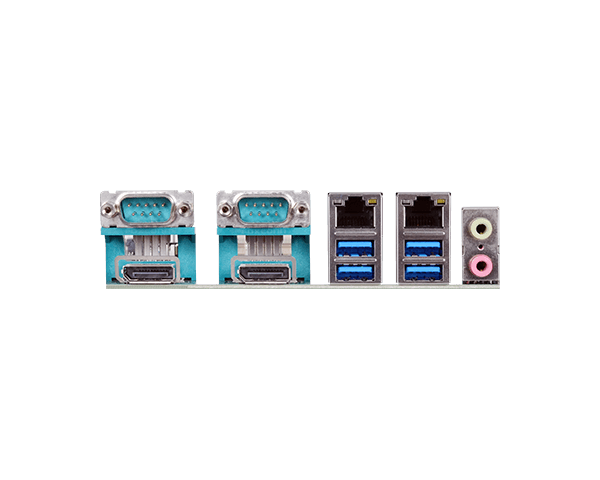

背板输入/输出
以太网络
2 x GbE (RJ-45)
串口
2 x RS-232/422/485 (RS-232 w/ power) (DB-9)
USB
4 x USB 3.0
显示
1 x VGA/DP++
1 x DP++
音源
1 x Line-out
1 x Line-in (available upon request)
1 x Mic-in
内部输入/输出
串行端口
4 x RS-232 (2.0mm pitch)
USB
6 x USB 2.0 (2.0mm pitch)
显示
1 x LVDS LCD Panel connector or 1 x eDP LCD panel connector
1 x LCD/intverter Power
音效
1 x S/PDIF
SATA
2 x SATA 3.0 (up to 6Gb/s) colay with M.2 M key
DIO
1 x 8-bit DIO
LPC
1 x LPC (supports LPC EXT-RS232/RS485 module)
SMBus
1 x SMBus
监视定时器
看门狗定时器
System Reset, Programmable via Software from 1 to 255 Seconds
安全性
信赖平台模块
dTPM 2.0 (opt.)
电源
类型
ATX
端口
24-pin ATX power
耗能
TDP: 6~12W
RTC 电池
CR2032 Coin Cell
支持操作系统
支持操作系统 (UEFI Only)
Windows 10 64bits (LTSB)
Linux
环境指标
温度
Operating: 0 to 60°C, -40 to 85°C
Storage: -40 to 85°C
湿度
Operating: 5 to 90% RH
Storage: 5 to 90% RH
MTBF
357,197 hrs @ 25°C; 206,214 hrs @ 45°C ; 130,208 hrs @ 60°C Calculation model: Telcordia Issue 2, Method I Case 3 Environment: GB, GC – Ground Benign, Controlled
机械结构
尺寸
Mini-ITX Form Factor
170mm (6.7") x 170mm (6.7")
高度
PCB: 1.6mm
Top Side: 38.5mm
Bottom Side: 3.00mm
装箱单
装箱单
1 AL170 motherboard
1 I/O shield A49-AL1700-010G (VGA/DP++) or A49-AL1700-000G (DP++/DP++)
1 Serial ATA data cable (Length: 500mm) 332-553001-005G
1 COM port cable (Length: 250mm, 1 x COM ports) A81-015011-001G
1 Heat sink for E series CPU (0 to 60°C/-40 to 85°C) A71-008106-000G / for N series CPU (0 to 60°C) A71-008101-020G
订购资讯
- 型号 料号 描述
- AL170-CT-E3950 770-AL1701-000G Fanless, Intel Atom® E3950, 2 DDR3L SODIMM, 1 VGA, 1 LVDS, 1 DP++, 6 COM, 10 USB, ATX, -40 to 85°C
- AL170-CB-N4200 770-AL1701-300G Fanless, Intel® Pentium® N4200, 2 DDR3L SODIMM, 1 eDP, 2 DP++, 6 COM, 10 USB, ATX, 0 to 60°C
- AL170-CB-N3350 770-AL1701-400G Fanless, Intel® Celeron® N3350, 2 DDR3L SODIMM, 1 eDP, 2 DP++, 6 COM, 10 USB, ATX, 0 to 60°C
- AL170-CB-E3940 770-AL1701-500G Fanless, Intel Atom® E3940, 2 DDR3L SODIMM, 1 LVDS, 2 DP++, 6 COM, 10 USB, ATX, 0 to 60°C
- AL170-CB-E3950 770-AL1701-600G Fanless, Intel Atom® E3950, 2 DDR3L SODIMM, 1 LVDS, 2 DP++, 6 COM, 10 USB, ATX, 0 to 60°C
-
选购品
- 品名 料号 描述
- COM port cable A81-015011-001G Length: 250mm, 1 x COM ports
- USB 2.0 port cable A81-001032-016G Length: 200mm
- LPC EXT-RS232 module 770-EXTRS1-000G 4 x RS232 ports
- LPC EXT-RS485 module 770-EXTRS1-100G 4 x RS485 ports
- Serial ATA data cable 332-553001-005G Length: 500mm
-
-
