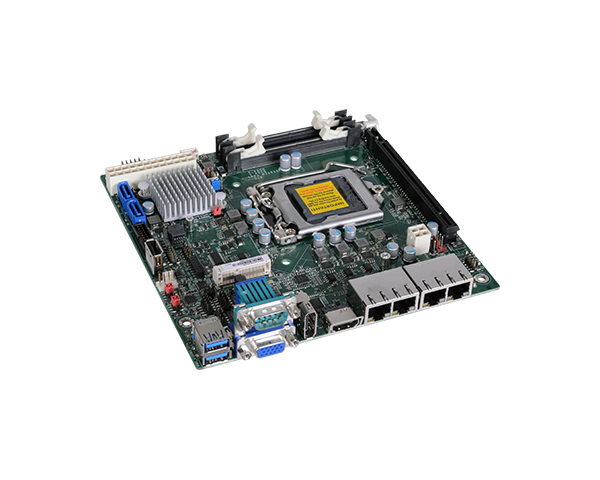

SD170 Multiple expansion: 1 PCIe x16, 1 Mini PCIe, 1 M.2 M key
■Rich I/O: 4 Intel GbE, 4 COM, 4 USB 3.0, 5 USB 2.0
■Three independent displays: VGA + HDMI 1.4 + DP++
■2 DDR4 SODIMM up to 32GB
■6th/7th Gen Intel® Core™ with Intel® H110
■15-Year CPU Life Cycle Support Until Q3' 30 (Based on Intel IOTG Roadmap)
-
系统
处理器
7th Generation Intel® Core™ Processors, LGA 1151 Socket
Intel® Core™ i7-7700 Processor, Quad Core, 8M Cache, 3.6GHz (4.2GHz), 65W
Intel® Core™ i5-7500 Processor, Quad Core, 6M Cache, 3.4GHz (3.8GHz), 65W
Intel® Core™ i3-7101E Processor, Dual Core, 3M Cache, 3.9GHz , 65W
6th Generation Intel® Core™ Processors, LGA 1151 Socket
Intel® Core™ i7-6700, Quad Core, 8M Cache, 3.4GHz (4.0GHz), 65W
Intel® Core™ i7-6700TE, Quad Core, 8M Cache, 2.4GHz (3.4GHz), 35W
Intel® Core™ i5-6500, Quad Core, 6M Cache, 3.2GHz (3.6GHz), 65W
Intel® Core™ i5-6500TE, Quad Core, 6M Cache, 2.3GHz (3.3GHz), 35W
Intel® Core™ i3-6100, Dual Core, 3M Cache, 3.7GHz, 47W
Intel® Core™ i3-6100TE, Dual Core, 4M Cache, 2.7GHz, 35W
Intel® Pentium® G4400, Dual Core, 3M Cache, 3.3GHz, 47W
Intel® Pentium® G4400TE, Dual Core, 3M Cache, 2.4GHz, 35W
Intel® Celeron® Processor G3900, Dual Core, 2M Cache, 2.8GHz, 65W
Intel® Celeron® Processor G3900TE, Dual Core, 2M Cache, 2.6GHz, 35W
芯片组
Intel® H110
内存
Two 260-pin SODIMM up to 32GB
Dual Channel DDR4 1866/2133MHz
BIOS
Insyde SPI 128Mbit
显示
控制器
Intel® HD Gen 9 Graphics
特性
OpenGL 5.0, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9
显示器
1 x VGA
1 x HDMI 1.4
1 x DP++ VGA: resolution up to 1920x1200 @ 60Hz
HDMI 1.4: resolution support 4K @ 30Hz
DP: resolution up to 4096x2304 @ 60Hz
三重显示
VGA + HDMI + DP++
扩充
界面
1 x PCIe x16 (Gen 3)
1 x Full-size Mini PCIe (USB2.0/SATA, PCIe x1 opt. and share with M.2) (support SIM slot)
1 x M.2 2280 M key (PCIe x1/SATA, PCIe x1 opt. and shared with Mini PCIe)
音讯
音讯编译码器
Realtek ALC888S-VD2-GR (Realtek ALC262 opt.)
以太网路
控制器
4 x Intel® I210AT PCIe (10/100/1000Mbps) or Intel® I211AT PCIe (10/100/1000Mbps) (opt.)
背板输入/输出
以太网络
4 x GbE (RJ-45)
串口
1 x RS-232/422/485
USB
2 x USB 3.0 Type A connector
显示
1 x VGA
1 x DVI-I (DVI-D signal)
1 x DP++
内部输入/输出
串行端口
1 x RS-232/422/485 (RS-232 w/ power)
2 x RS-232
USB
2 x USB 3.0
4 x USB 2.0
1 x USB 2.0 Type A connector for Watchdog Timer
音效
1 x S/PDIF
1 x Line-out
1 x Mic-in
SATA
2 x SATA 3.0 (up to 6Gb/s)
DIO
1 x 16-bit DIO
LPC
1 x LPC (supports LPC EXT-RS232/RS485 module)
SMBus
1 x SMBus
监视定时器
看门狗定时器
System Reset, Programmable via Software from 1 to 255 Seconds
安全性
信赖平台模块
fTPM 2.0/dTPM 2.0 (opt.)
电源
类型
ATX
端口
4-pin ATX 12V power
24-pin ATX power
耗能
dle: i7-7700 65W: 12V @ 1.28A (15.36W), 5V @ 0.54A (2.7W), 3.3V @ 0.47A (1.55W)
Max: i7-7700 65W: 12V @ 6.78A (81.36W), 5V @ 0.72A (3.6W), 3.3V @ 0.58A (1.91W)
电池
CR2032 Coin Cell
支持操作系统
支持操作系统
Windows 7 (/WES7) 32/64-bit
Windows 8.1 (64-bit)
Windows 10 IoT Enterprise 64-bit
Note: 7th Gen Intel Core processors only support Win 10. Debian 8 (with VESA graphic driver)
CentOS 7 (with VESA graphic driver)
Linux
环境指标
温度
Operating: 0 to 60°C
Storage: -40 to 85°C
湿度
Operating: 5 to 90% RH
Storage: 5 to 90% RH
MTBF
SD170: 661,927 hrs @ 25°C; 395,601 hrs @ 45°C ; 253,051 hrs @ 60°C
Calculation model: Telcordia Issue 4
Environment: GB, GC – Ground Benign, Controlled
机械结构
尺寸
Mini-ITX Form Factor
170mm (6.7") x 170mm (6.7")
高度
PCB: 1.6mm
Top Side: 20mm
Bottom Side: 3mm
安规认证
认证
CE, FCC, RoHS
装箱单
装箱单
1 SD170 motherboard
1 COM port cable (Length: 250mm, 1 x COM ports) A81-015011-001G
1 Serial ATA data cable (Length: 300mm) A81-002013-000G
I/O shiled A49-SD1700-000G
订购资讯
- 型号 料号 描述
- SD170 770-SD1701-000G 2 DDR4 SODIMM, 4 LAN, 4 COM, 9 COM, 10 USB, ATX, 0 to 60°C
-
选购品
- 品名 料号 描述
- USB 2.0 port cable A81-001032-016G Length: 200mm
- COM port cable A81-015001-000G Length: 250mm, 1 x COM ports
- Serial ATA data cable A81-002013-000G Length: 300mm
- Thermal solution A71-103004-000G For 35W, Height: 37.3mm
552-200049-000G For 65W, Height: 72.8mm
-
-
