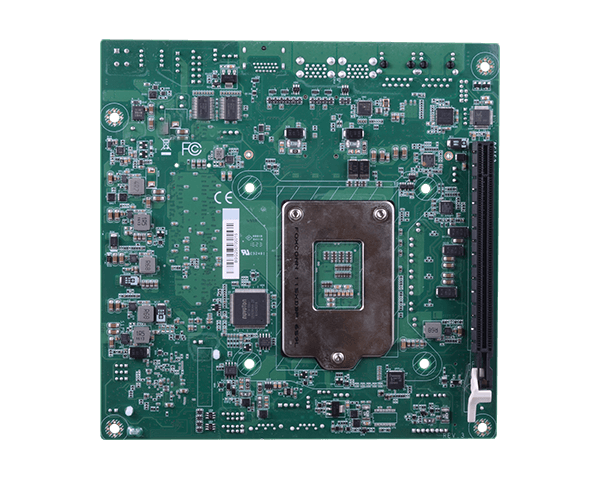

SD106-Q170 6th/7th Gen Intel® Core™ with Intel® Q170

■6th/7th Gen Intel® Core™ with Intel® Q170
■2 DDR4 SODIMM up to 32GB
■Multiple expansion: 1 PCIe x16, 2 Mini PCIe
■Rich I/O: 2 Intel GbE, 2 COM, 4 USB 3.0, 4 USB 2.0
■Three independent displays: DP++ + LVDS + eDP
■DP++ resolution supports up to 4096x2304 @ 60Hz
■Storage: 2 SATA 3.0
■15-Year CPU Life Cycle Support Until Q3' 30 (Based on Intel IOTG Roadmap)
ꄴ上一个： SD170 Multiple expansion: 1 PCIe x16, 1 Mini PCIe, 1 M.2 M key
ꄲ下一个： CS103-H310 8th Gen Intel® Core™ with Intel® H310

  • 系统

    处理器

    7th Generation Intel® Core™ Processors, LGA 1151 Socket
    Intel® Core™ i7-7700 Processor, Quad Core, 8M Cache, 3.6GHz (4.2GHz), 65W
    Intel® Core™ i5-7500 Processor, Quad Core, 6M Cache, 3.4GHz (3.8GHz), 65W
    Intel® Core™ i3-7101E Processor, Dual Core, 3M Cache, 3.9GHz , 65W
    6th Generation Intel® CoreTM Processors, LGA 1151 Socket
    Core i7-6700TE (Skylake-S/R0-SR2LP) / 35W / LGA1151
    Core i7-6700 (Skylake-S/R0-SR2BT) / 65W / LGA1151
    Core i5-6500 (Skylake-S/R0-SR2BX) / 65W / LGA1151
    Core i5-6500TE (Skylake-S/R0-SR2LR) / 35W / LGA1151
    Core i3-6100TE (Skylake-S/R0-SR2LS) / 35W / LGA1151
    Core i3-6100 (Skylake-S/S0-SR2HG) / 51W / LGA1151
    Pentium-G4400 (Skylake-S/R0-SR2DC) / 54W / LGA1151
    Pentium-G4400TE (Skylake-S/R0-SR2LT) / 35W / LGA1151
    Celeron G3900TE (Skylake-S/R0-SR2LU) / 35W / LGA1151

    芯片组

    Intel® Q170 Chipset

    内存

    Two 260-pin SODIMM up to 32GB
    Dual Channel DDR4 1866/2133MHz

    BIOS

    Insyde SPI 128Mbit

    显示

    控制器

    Intel® HD Gen 9 Graphics

    特性

    OpenGL 5.0, DirectX 12, OpenCL 2.1
    HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
    HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9

    显示器

    1 x eDP
    1 x LVDS
    1 x DP++
    eDP: resolution up to 4096x2304@ 60Hz
    LVDS: resolution up to 1920x1080 @ 60Hz
    DP++: resolution up to 4096x2304@ 60Hz

    三重显示

    DP++ + eDP + LVDS

    扩充

    界面

    1 x Full-size Mini PCIe (USB/PCIe/SATA, SATA by default)
    1 x Half-size Mini PCIe (USB/PCIe/SATA, Mini PCIe by default)
    1 x PCIe x16

    音讯

    音讯编译码器

    Realtek ALC888S-VD2-GR

    以太网路

    控制器

    1 x Intel® I219LM PCIe with iAMT11.0 (10/100/1000Mbps) (only Core i7/i5 supports iAMT)
    1 x Intel® I211AT PCIe (10/100/1000Mbps)

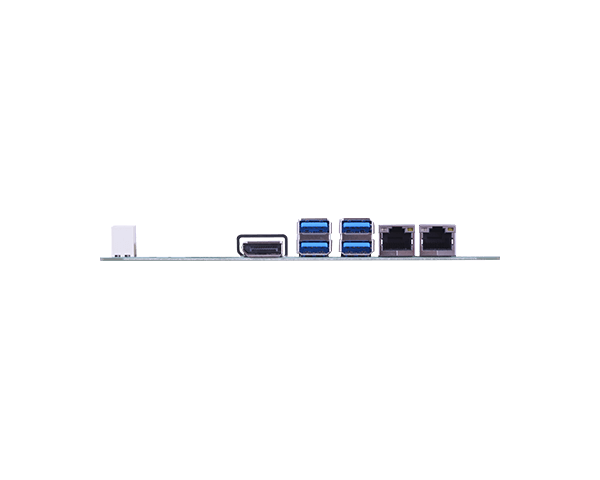

    背板输入/输出

    以太网络

    2 x GbE (RJ-45)

    USB

    4 x USB 3.0

    显示

    1 x DP++

    内部输入/输出

    串行端口

    2 x RS-232 (2.00mm pitch)

    USB

    4 x USB 2.0 (2.00mm pitch)

    显示

    1 x LVDS LCD Panel Connector
    1 x eDP

    音效

    1 x Audio (Line-out/Mic-in)
    1 x Speaker (3W amplifier)

    SATA

    2 x SATA 3.0 (up to 6Gb/s)

    SMBus

    1 x SMBus (2.00mm pitch)

    其他 输入/输出

    1 x Intrusion (2.54mm pitch)
    1 x CPU FAN (2.54mm pitch)
    2 x SYS FAN (2.54mm pitch)

    监视定时器

    看门狗定时器

    System Reset, Programmable via Software from 1 to 255 Seconds

    安全性

    信赖平台模块

    TPM2.0 (opt.)

    电源

    类型

    15~36V DC in

    RTC 电池

    CR2032 Coin Cell

    支持操作系统

    支持操作系统

    Windows 7
    Windows 10
    Windows 8.1

    环境指标

    温度

    Operating: 0 to 60°C
    Storage: -40 to 85°C

    湿度

    Operating: 5 to 90% RH
    Storage: 5 to 90% RH

    MTBF

    457, 253 hrs @ 25°C; 270, 131 hrs @ 45°C; 171, 981 hrs @ 60°C
    Calculation model: Telcordia Issue 2
    Environment: GB, GC – Ground Benign, Controlled

    机械结构

    尺寸

    Mini-ITX Form Factor
    170mm (6.7") x 170mm (6.7")

    高度

    PCB: 1.6mm
    Top Side: 16.34mm
    Bottom Side: 4.2mm

    装箱单

    装箱单

    1 SD106-Q170 motherboard
    1 COM port cable (Length: 250mm, 1 x COM ports) A81-015011-001G
    1 Serial ATA data with power cable (Length: 500mm) 332-553001-005G

    订购资讯

    • 型号                                                             料号                                                      描述
    • SD106-Q170                                               770-SD1061-000G                                2 DDR4 SODIMM, 2 LAN, 2 COM, 8 USB, 15~36V DC-in, 0 to 60°C

    •

    选购品

    • 品名                                                             料号                                                      描述
    • USB port cable                                            A81-001032-016G                               Length: 200mm
    • COM port cable                                          A81-015011-001G                                Length: 250mm, 1 x COM ports
    • Serial ATA data cable                                  332-553001-005G                                 Length: 500mm
    • Thermal solution                                        A71-103004-000G                                 For 35W, Height: 37.3mm
                                                                         552-200049-000G                                  For 65W, Height: 72.8mm
    • I/O shield                                                   A49-SD1060-000G Thin Type: A49-SD1060-110G Thin Type
    •                                                                   Non Audio: A49-SD1060-100G
