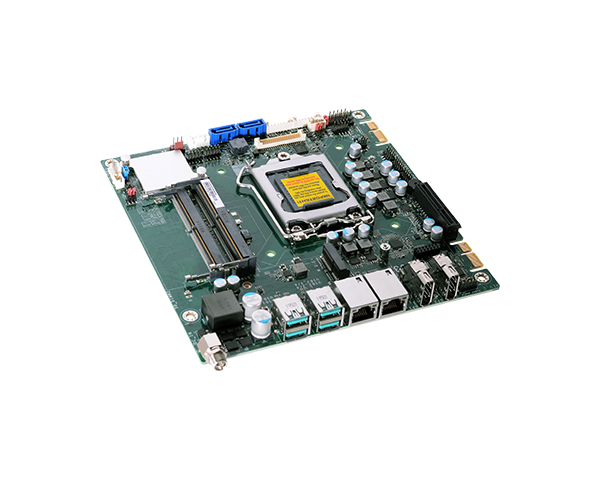

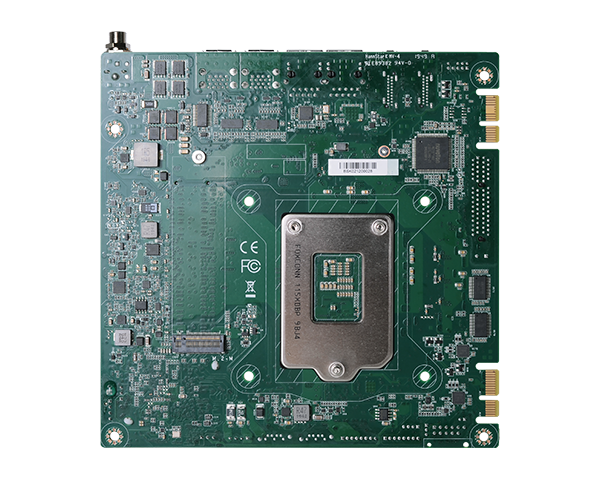

CS103-H310 8th Gen Intel® Core™ with Intel® H310
■2 DDR4 SODIMM up to 32GB
■Dual independent displays: LVDS + DP++, DP++ + DP++
■Rich I/O: 2 Intel GbE, 4 COM, 4 USB 3.1 Gen 1, 4 USB 2.0
■Multiple Expansions: 1 PCIe x4 Gen 3, 1 M.2 2280 M Key, 1 M.2 2230 E Key
■15-Year CPU Life Cycle Support Until Q2' 33 (Based on Intel IOTG Roadmap)
-
系统
处理器
9th Generation Intel® Core™ Processors, LGA 1151 Socket
Intel® Core i7-9700TE Processor (Core 8; Max speed 3.8GHz; TDP 35W)
Intel® Core i5-9500E Processor (Core 6; Max speed 4.2GHz; TDP 65W)
Intel® Core i5-9500TE Processor (Core 6; Max speed 3.6GHz; TDP 35W)
Intel® Core i3-9100E Processor (Core 4; Max speed 3.7GHz; TDP 65W)
Intel® Core i3-9100TE Processor (Core 4; Max speed 3.2GHz; TDP 35W)
8th Generation Intel® Core™ Processors, LGA 1151 Socket
Intel® Core™ i7-8700 Processor (Core 6; Max speed 4.6GHz; TDP 65W)
Intel® Core™ i7-8700T Processor (Core 6; Max speed 4.0GHz; TDP 35W)
Intel® Core™ i5-8500 Processor (Core 6; Max speed 4.1GHz; TDP 65W)
Intel® Core™ i5-8500T Processor (Core 6; Max speed 3.5GHz; TDP 35W)
Intel® Core™ i3-8100 Processor (Core 4; Max speed 3.6GHz; TDP 65W)
Intel® Core™ i3-8100T Processor (Core 4; Max speed 3.1GHz; TDP 35W)
Intel® Pentium G5400 Processor (Core 2; Max speed 3.7GHz; TDP 58W)
Intel® Celeron G4900 Processor (Core 2; Max speed 3.1GHz; TDP 54W)
Intel® Celeron G4900T Processor (Core 2; Max speed 2.9GHz; TDP 35W)
芯片组
Intel® H310 Chipset
内存
Two 260-pin SODIMM up to 32GB
Dual Channel DDR4 2666MHz
BIOS
AMI SPI 128Mbit
显示
控制器
Intel® UHD Graphics 630 (only Pentium G5400, Celeron G4900 support 610 )
特性
OpenGL 4.5, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: AVC/H.264, MPEG2, JPEG, HEVC/H265, VP8, VP9
显示器
1x LVDS
2 x DP++
LVDS: resolution up to 1920x1200 @ 60Hz
DP1.2: resolution up to 4096x2304 @ 60Hz
双重显示
DP++ + LVDS, DP++ + DP++
扩充
界面
1 x PCIe x4 (Gen 3)
2 x DFI proprietary extension bus for PCIe/PCI expansion
1 x M.2 2230 E Key (USB/PCIe)
1 x M.2 2280 M Key (PCIe Gen2 x1)
音讯
音讯编译码器
Realtek ALC888S-VD2-GR
以太网路
控制器
1 x Intel® I219LM PHY (10/100/1000Mbps)
1 x Intel® I211AT PCIe (10/100/1000Mbps)

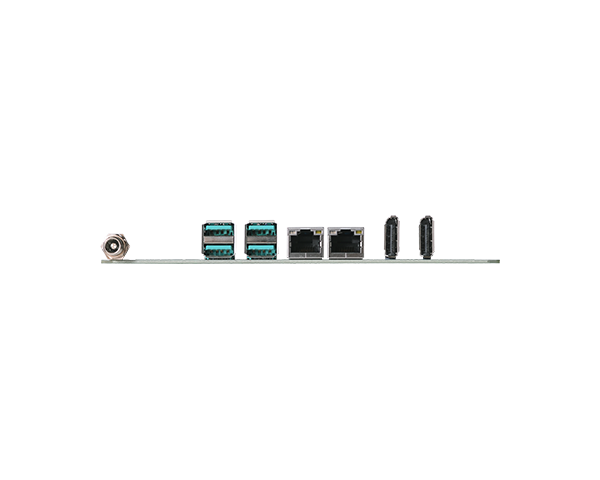

背板输入/输出
以太网络
2 x GbE (RJ-45)
USB
4 x USB3.1 Gen1
显示
2 x DP++
1 x LVDS
音源
1 x Front Audio (2.0mm pitch)
内部输入/输出
串行端口
2 x RS-232/422/485 (2.0mm pitch)
2 x RS-232 (2.0mm pitch)
USB
4 x USB 2.0 (2.0mm pitch)
SATA
2 x SATA 3.0 (up to 6Gb/s)
1 x SATA Power
DIO
1 x 8-bit DIO
LPC
1 x LPC
SMBus
1 x SMBus
监视定时器
看门狗定时器
System Reset, Programmable via Software from 1 to 255 Seconds
安全性
信赖平台模块
dTPM 2.0
电源
类型
9-36V DC-in
端口
DC-in Jack
Right Angle Connector (4-pin) (available upon request)
Straight Type Connector (4-pin) (available upon request)
耗能
Idle: i7-8700 65W: 19V @ 0.61A (11.59W)
Max: i7-8700 65W: 19V @ 5.74A (109.06W)
RTC 电池
CR2032 Coin Cell
支持操作系统
微软
Windows 10 IoT Enterprise 64-bit
Linux
环境指标
温度
Operating: -10 to 70°C
Storage: -40 to 85°C
湿度
Operating: 5 to 90% RH
Storage: 5 to 90% RH
MTBF
607,574 hrs @ 25°C; 361,791 hrs @ 45°C; 234,097 hrs @ 60°C; 173,560 hrs @ 70°C
Calculation model: Telcordia Issue 4
Environment: GB, GC – Ground Benign, Controlled
机械结构
尺寸
Mini-ITX Form Factor
170mm (6.7") x 170mm (6.7")
高度
Height PCB: 1.6mm
Top Side: 20mm, Bottom Side: 3mm
装箱单
装箱单
• 1 CS103 motherboard
• 1 Serial ATA data with power cable (Length: 300mm) A81-002013-000G
• 1 COM port cable (Length: 250mm, 1 x COM ports) A81-015011-001G
订购资讯
- 型号 料号 描述
- CS103-H310 770-CS1032-000G 2 DDR4 SODIMM, 2 Intel GbE, 4 COM, 4 USB 3.1 Gen 1, 4 USB 2.0, 2 SATA 3.0, 0 to 60°C
-
选购品
- 品名 料号 描述
- USB 2.0 port cable A81-001032-016G Length: 200mm
- COM port cable A81-015011-001G Length: 250mm, 1 x COM ports
- Serial ATA data with power cable A81-002013-000G Length: 300mm
- I/O shield A49-CS1031-000G
- I/O shield (Thin Type) A49-CS1031-100G
- Thermal solution A71-103004-000G For 35W, Height: 37.3mm
552-200049-000G For 65W, Height: 72.8mm - Serial ATA power cable A81-002044-016G
-
-
