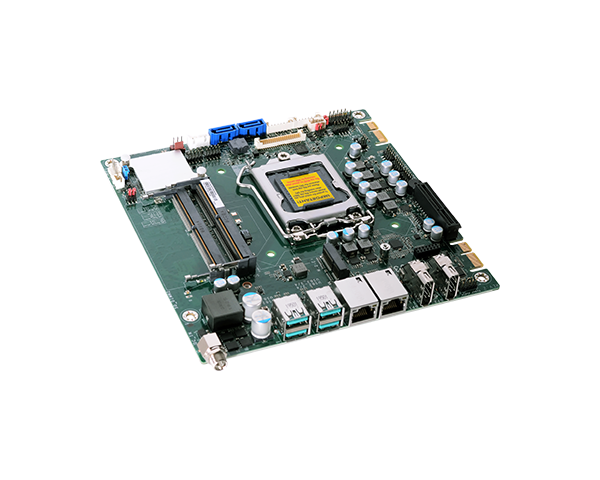

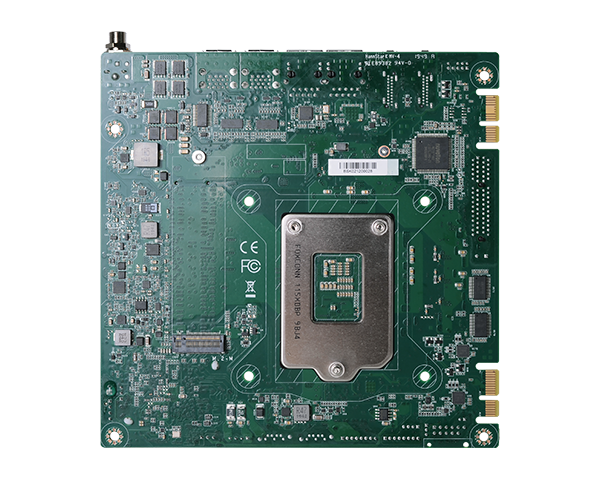

CS103-Q370/C246 8th Gen Intel® Core™ with Intel® Q370/C246

■8th Gen Intel® Core™ with Intel® Q370/C246
■2 DDR4 2400/2666MHz SODIMM up to 32GB
■Three independent displays: LVDS + DP++ + DP++
■DP++ resolution supports up to 4096x2304 @ 60Hz
■Multiple Expansions: 1 PCIe x4 Gen 3, 1 M.2 2280 M Key, 1 M.2 2230 E Key
■Storage: 2 SATA 3.0
■Rich I/O: 2 Intel GbE, 4 COM, 4 USB 3.1 Gen 2, 4 USB 2.0
■15-Year CPU Life Cycle Support Until Q2' 33 (Based on Intel IOTG Roadmap)
ꄴ上一个： CS103-H310 8th Gen Intel® Core™ with Intel® H310
ꄲ下一个： WL171/WL173 8th Generation Intel® Core™ Processor Mini-ITX

  • 系统

    处理器

    9th Generation Intel® Core™ Processors, LGA 1151 Socket
    Intel® Core i7-9700TE Processor (Core 8; Max speed 3.8 GHz; TDP 35W)
    Intel® Core i5-9500E Processor (Core 6; Max speed 4.2 GHz; TDP 65W)
    Intel® Core i5-9500TE Processor (Core 6; Max speed 3.6 GHz; TDP 35W)
    Intel® Core i3-9100E Processor (Core 4; Max speed 3.7 GHz; TDP 65W) (support ECC memory)
    Intel® Core i3-9100TE Processor (Core 4; Max speed 3.2 GHz; TDP 35W) (support ECC memory)
    8th Generation Intel® Core™ Processors, LGA 1151 Socket
    Intel® Core™ i7-8700 Processor (Core 6; Max speed 4.6 GHz; TDP 65W)
    Intel® Core™ i7-8700T Processor (Core 6; Max speed 4.0 GHz; TDP 35W)
    Intel® Core™ i5-8500 Processor (Core 6; Max speed 4.1 GHz; TDP 65W)
    Intel® Core™ i5-8500T Processor (Core 6; Max speed 3.5 GHz; TDP 35W)
    Intel® Core™ i3-8100 Processor (Core 4; Max speed 3.6 GHz; TDP 65W) (support ECC memory)
    Intel® Core™ i3-8100T Processor (Core 4; Max speed 3.1 GHz; TDP 35W) (support ECC memory)
    Intel® Pentium G5400 Processor (Core 2; Max speed 3.7 GHz; TDP 58W) (support ECC memory)
    Intel® Celeron G4900 Processor (Core 2; Max speed 3.1 GHz; TDP 54W) (support ECC memory)

    芯片组

    Intel® Q370/C246 Chipset

    内存

    Two 260-pin SODIMM up to 32GB
    Dual Channel DDR4 2400/2666MHz (support ECC memory by C246)

    BIOS

    AMI SPI 128Mbit

    显示

    控制器

    Intel® UHD Graphics 630 (only Pentium G5400, Celeron G4900 support 610 )

    特性

    OpenGL 4.5, DirectX 12, OpenCL 2.1
    HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
    HW Encode: AVC/H.264, MPEG2, JPEG, HEVC/H265, VP8, VP9

    显示器

    1 x LVDS
    2 x DP++
    LVDS: resolution up to 1920x1200 @ 60Hz
    DP1.2: resolution up to 4096x2304 @ 60Hz

    三重显示

    DP++ +DP++ + LVDS

    扩充

    界面

    1 x PCIe x4 (Gen 3)
    2 x DFI proprietary extension bus for PCIe/PCI expansion
    1 x M.2 2280 M Key (PCIe x4/SATA) (support NVMe and Intel® Optane memory)
    1 x M.2 2230 E Key (USB/PCIe)

    音讯

    音讯编译码器

    Realtek ALC888S-VD2-GR

    以太网路

    控制器

    1 x Intel® I219LM PHY with iAMT12 and vPro (10/100/1000Mbps) (Core i7/i5 supports iAMT)
    1 x Intel® I211AT PCIe (10/100/1000Mbps)

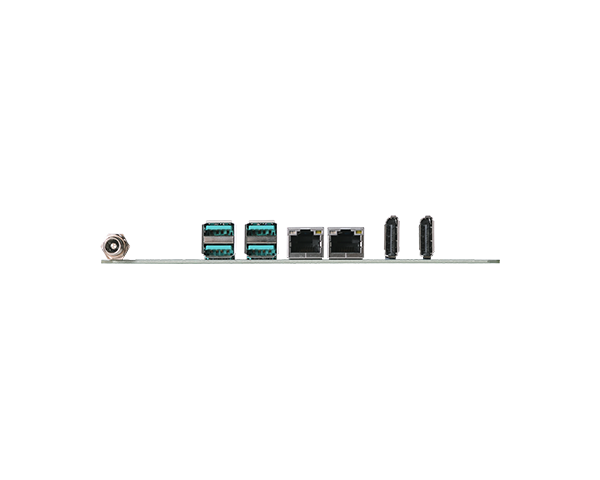

    背板输入/输出

    以太网络

    2 x GbE (RJ-45)

    USB

    4 x USB 3.1 Gen2

    显示

    2 x DP++

    内部输入/输出

    串行端口

    2 x RS-232/422/485 (2.0mm pitch)
    2 x RS-232 (2.0mm pitch)

    USB

    4 x USB 2.0 (2.0mm pitch)

    显示

    1 x LVDS

    音效

    1 x Front Audio (2.0mm pitch)

    SATA

    2 x SATA 3.0 (up to 6Gb/s)
    1 x SATA Power
    RAID 0/1/5

    DIO

    1 x 8-bit DIO

    LPC

    1 x LPC

    SMBus

    1 x SMBus

    监视定时器

    看门狗定时器

    System Reset, Programmable via Software from 1 to 255 Seconds

    安全性

    信赖平台模块

    dTPM 2.0

    电源

    类型

    9-36V DC-in

    端口

    DC-in Jack
    Right Angle Connector (4-pin) (available upon request)
    Straight Type Connector (4-pin) (available upon request)

    耗能

    Idle: i7-8700 65W: 19V @ 0.61A (11.59W)
    Max: i7-8700 65W: 19V @ 5.74A (109.06W)

    RTC 电池

    CR2032 Coin Cell

    支持操作系统

    微软

    Windows 10 IoT Enterprise 64-bit

    Linux

    Linux

    环境指标

    温度

    Operating: -10 to 70°C
    Storage: -40 to 85°C

    湿度

    Operating: 5 to 90% RH
    Storage: 5 to 90% RH

    MTBF

    CS103-C246: 604,132 hrs @ 25°C; 359,766 hrs @ 45°C; 232,819 hrs @ 60°C; 172,632 hrs @ 70°C
    CS103-Q370: 604,132 hrs @ 25°C; 359,766 hrs @ 45°C; 232,819 hrs @ 60°C; 172,632 hrs @ 70°C
    Calculation model: Telcordia Issue 4
    Environment: GB, GC – Ground Benign, Controlled

    机械结构

    尺寸

    Mini-ITX Form Factor
    170mm (6.7") x 170mm (6.7")

    高度

    PCB: 1.6mm
    Top Side: 20mm, Bottom Side: 3mm

    装箱单

    装箱单

    • 1 CS103 motherboard
    • 1 Serial ATA data with power cable (Length: 300mm) A81-002013-000G
    • 1 COM port cable (Length: 250mm, 1 x COM ports) A81-015011-001G

    订购资讯

    • 型号                                                                         料号                                                                  描述
    • CS103-Q370                                                            770-CS1032-100G                                            2 DDR4 SODIMM, 2 Intel GbE, 4 COM, 4 USB 3.1 Gen 2, 4 USB 2.0, 2 SATA 3.0, 0 to 60°C
    • CS103-C246                                                             770-CS1032-200G                                            2 DDR4 SODIMM, 2 Intel GbE, 4 COM, 4 USB 3.1 Gen 2, 4 USB 2.0, 2 SATA 3.0, 0 to 60°C

    •

    选购品

    • 品名                                                                         料号                                                                   描述
    • USB 2.0 port cable                                                  A81-001032-016G                                             Length: 200mm
    • COM port cable                                                      A81-015011-001G                                             Length: 250mm, 1 x COM ports
    • Serial ATA data with power cable                           A81-002013-000G                                             Length: 300mm
    • Serial ATA power cable                                           A81-002044-016G
    • I/O shield                                                                A49-CS1031-000G
    • I/O shield (Thin Type)                                             A49-CS1031-100G
    • Thermal solution                                                     A71-103004-000G                                             For 35W, Height: 37.3mm
                                                                                      552-200049-000G                                              For 65W, Height: 72.8mm
