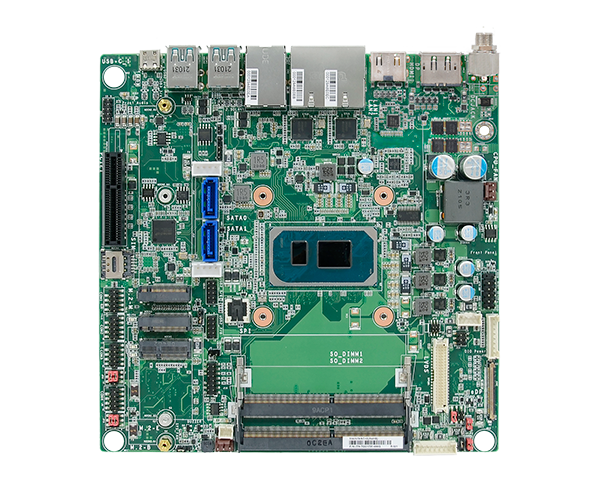

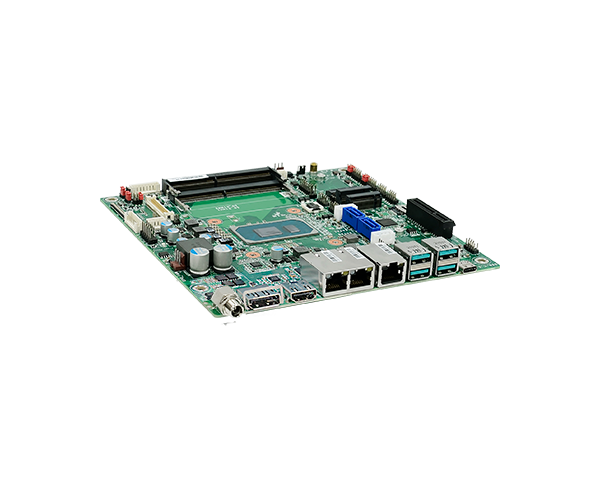

TGU171/TGU173 11th Gen Intel® Core™ Processors
■DDR4 3200MHz SODIMM up to 64GB
■Quad independent displays: 1 LVDS, 1 eDP, 1 DP++/HDMI (Auto-detecting), 1 USB Type C
■Supports up to 4K/2K resolution
■Multiple expansion: 1 PCIe x4, 1 M.2 M Key, 1 M.2 B key (SATA/PCIe), 1 M.2 E key (PCIe/USB), 1 Nano-SIM Socket
■Storage: 2 SATA 3.0
■Rich I/O: 1 Intel 2.5GLAN, 2 Intel GbE, 4 COM, 4 USB 3.1 Gen2, 1 USB Type-C, 4 USB 2.0
■15-Year CPU Life Cycle Support Until Q3' 35 (Based on Intel IOTG Roadmap)
-
系统
处理器
11th Generation Intel® Core™ Processors
Intel® Core™ i7-1185GRE, Quad Core, 12M Cache, 1.8GHz (4.4GHz), 15W
Intel® Core™ i5-1145GRE, Quad Core, 8M Cache, 1.5GHz (4.1GHz), 15W
Intel® Core™ i3-1115GRE, Dual Core, 6M Cache, 2.2GHz (3.9GHz), 15W
Intel® Celeron® 6305E, Dual Core, 4M Cache, 1.8GHz (1.8GHz), 15W
内存
2 x 260-pin SO-DIMM up to 64GB (32GB per slot)
Dual channel DDR4 up to 3200MHz (Support in-band ECC)
BIOS
AMI SPI 256Mbit
显示
控制器
Intel® Iris® Xe Graphics for i7/i5 Processors
Intel® UHD Graphics for i3/Celeron Processors
特性
OpenGL 4.5, DirectX 12, OpenCL 2.1
HW Decode: WMV9, AVC/H264, JPEG/MJPEG, HEVC/H265, VP9, AV1
HW Encode: AVC/H264, JPEG, HEVC/H265, VP9
显示器
1 x LVDS
1 x eDP
1 x DP++
1 x HDMI
1 x USB Type C (Support USB3.1 Gen2, 15W power delivery and DP Alt mode)
LVDS: resolution up to 1920x1200 @60Hz
eDP: resolution up to 4096x2304 @60Hz
USB Type C: resolution up to 4096x2304 @60Hz
DP: resolution up to 4096x2304 @60Hz
HDMI: resolution up to 4096x2160 @60Hz
四重显示
LVDS + eDP + DP++ + HDMI + USB Type C
扩充
界面
1 x PCIe x4 (PCIe Gen 3 x4)
1 x M.2 2242/2280 M Key (PCIe Gen4 x4) (Support NVMe and Intel® Optane memory) (Support DFI proprietary expansion module)
1 x M.2 2242/3042/3052 B Key (PCIe Gen3 x1/SATA/USB 3.1 Gen1) (Support 4G/5G and storage module) (Opt.: PCIe Gen3 x2)
1 x M.2 2230 E Key (PCIe Gen3 x1/USB2.0) (Support BT/WiFi and Intel® CNVi module and Intel® vPro)
1 x Nano-SIM Socket (Connect to M.2 Key B for 4G/5G module)
音讯
音讯编译码器
Realtek ALC888
以太网路
控制器
2 x Intel® I211AT/I210IT PCIe (10/100/1000Mbps)
1 x Intel® I225LM/I225IT PCIe (10/100/1000Mbps/2.5Gbps)

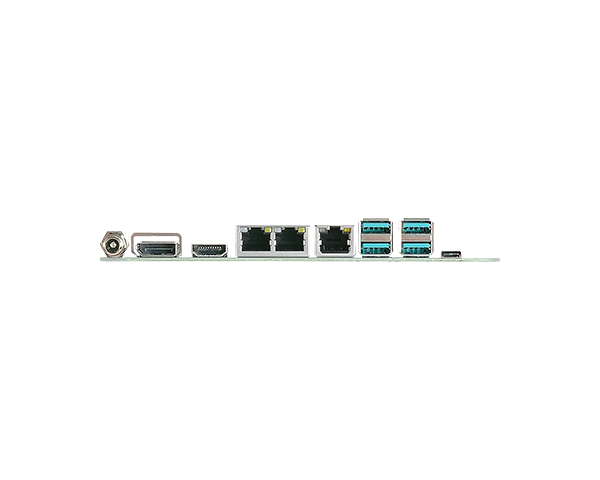

背板输入/输出
以太网络
3 x GbE (RJ-45)
USB
4 x USB 3.1 Gen2 (Type-A)
1 x USB Type-C (Support USB 3.1 Gen2, 15W power delivery and DP Alt mode)
显示
1 x DP++
1 x HDMI
内部输入/输出
串行端口
2 x RS-232/422/485 (2.0mm pitch)
2 x RS-232 (2.0mm pitch) (RS-232 w/ power)
USB
4 x USB 2.0 (2.0mm pitch)
显示
1 x LVDS
1 x eDP
音效
1 x Front Audio (2.0mm pitch)
SATA
2 x SATA 3.0 (up to 6Gb/s) (RAID 0/1)
2 x SATA Power
DIO
1 x 8-bit DIO
1 x DIO Power
其他 输入/输出
1 x CPU fan
1 x System fan
监视定时器
看门狗定时器
System Reset, Programmable via Software from 1 to 255 Seconds
安全性
信赖平台模块
fTPM (default) / dTPM (option)
电源
类型
TGU171: Single 12V +/-5% DC (TGU171)
TGU173: Wide Range 9~36V (TGU173)
端口
DC-in Jack
Right Angle Connector (4-pin) (available upon request)
Straightl Type Connector (4-pin) (available upon request)
耗能
TBD
RTC 电池
CR2032 Coin Cell
支持操作系统
微软
Windows 10 IoT Enterprise 64-bit
Linux
Linux
环境指标
温度
Operating: -5 to 65°C / -20 to 70°C
Storage: -40 to 85°C
湿度
Operating: 5 to 90% RH
Storage: 5 to 90% RH
MTBF
TBD
机械结构
尺寸
Mini-ITX Form Factor
170mm (6.7") x 170mm (6.7")
高度
PCB: 1.6mm
Top Side: 16.5mm, Bottom Side: 3.5mm
安规认证
认证
CE, FCC, RoHS, UKCA
装箱单
装箱单
1 TGU171/TGU173 motherboard
1 COM port cable (Length: 250mm, 1 x COM ports) A81-015011-001G
1 Serial ATA data with power cable (Length: 300mm) A81-002013-000G
2 Screws TBD
1 Heat sink TBD
1 Driver DVD
订购资讯
- 型号 料号 描述
- TGU171-IE-1185GRE 770-TGU1711-000G Intel® Core™ i7-1185GRE, 2 SODIMM, 1 DP++, 1 HDMI, 3 LAN, 2 RS-232, 2 RS-232/422/485, 1 USB-C, 4 USB 3.1 Gen2, 4 USB 2.0, 12V DC, -20 to 70°C
- TGU171-IE-1145GRE 770-TGU1711-100G Intel® Core™ i5-1145GRE, 2 SODIMM, 1 DP++, 1 HDMI, 3 LAN, 2 RS-232, 2 RS-232/422/485, 1 USB-C, 4 USB 3.1 Gen2, 4 USB 2.0, 12V DC, -20 to 70°C
- TGU171-IB-1115G4E 770-TGU1711-200G Intel® Core™ i3-1115G4E, 2 SODIMM, 1 DP++, 1 HDMI, 3 LAN, 2 RS-232, 2 RS-232/422/485, 1 USB-C, 4 USB 3.1 Gen2, 4 USB 2.0, 12V DC, -5 to 65°C
- TGU171-IB-6305E 770-TGU1711-300G Intel® Celeron 6305E, 2 SODIMM, 1 DP++, 1 HDMI, 3 LAN, 2 RS-232, 2 RS-232/422/485, 1 USB-C, 4 USB 3.1 Gen2, 4 USB 2.0, 12V DC, -5 to 65°C
- TGU173-IE-1185GRE 770-TGU1731-000G Intel® Core™ i7-1185GRE, 2 SODIMM, 1 DP++, 1 HDMI, 3 LAN, 2 RS-232, 2 RS-232/422/485, 1 USB-C, 4 USB 3.1 Gen2, 4 USB 2.0, 9~36V DC, -20 to 70°C
- TGU173-IE-1145GRE 770-TGU1731-100G Intel® Core™ i5-1145GRE, 2 SODIMM, 1 DP++, 1 HDMI, 3 LAN, 2 RS-232, 2 RS-232/422/485, 1 USB-C, 4 USB 3.1 Gen2, 4 USB 2.0, 9~36V DC, -20 to 70°C
- TGU173-IB-1115G4E 770-TGU1731-200G Intel® Core™ i3-1115G4E, 2 SODIMM, 1 DP++, 1 HDMI, 3 LAN, 2 RS-232, 2 RS-232/422/485, 1 USB-C, 4 USB 3.1 Gen2, 4 USB 2.0, 9~36V DC, -5 to 65°C
- TGU173-IB-6305E 770-TGU1731-300G Intel® Celeron 6305E, 2 SODIMM, 1 DP++, 1 HDMI, 3 LAN, 2 RS-232, 2 RS-232/422/485, 1 USB-C, 4 USB 3.1 Gen2, 4 USB 2.0, 9~36V DC, -5 to 65°C
-
选购品
- 品名 料号 描述
- COM port cable A81-015011-001G Length: 250mm, 1 x COM ports
- USB port cable A81-001032-016G Length: 200mm
- Serial ATA data cable 332-553001-005G Length: 500mm
- Serial ATA power cable A81-002044-016G Length: 300mm
-
-
