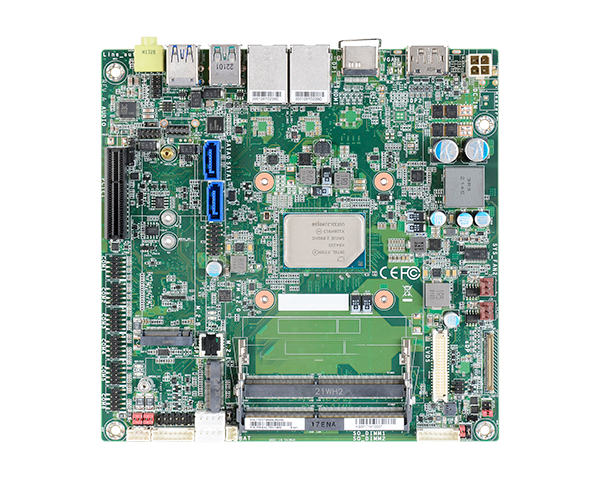

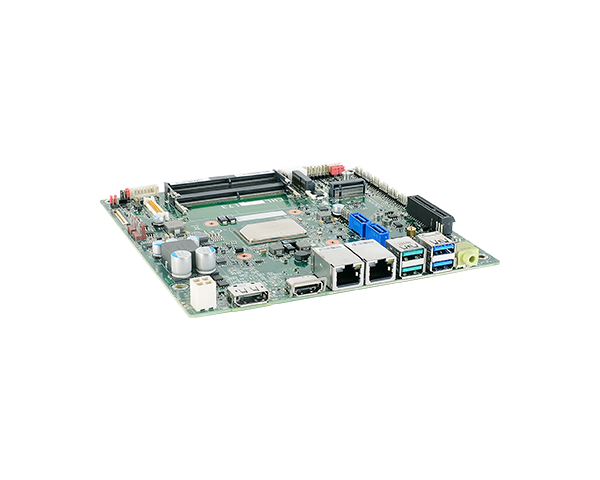

EHL171/EHL173 Intel Atom® Processor X Series
■2 DDR4 SODIMM up to 32GB
■3 Independent Displays: 1 DP++/VGA, 1 HDMI/ DP++, 1 eDP/LVDS
■Multiple Expansion: 1 M.2 B Key, 1 M.2 E Key, 1 PCIe x4 (x2 signal)
■Rich I/O: 2 x 2.5GbE, 2 USB 3.2 Gen2, 2 USB 3.2 Gen1, 6 COM, up to 4 USB 2.0
■15-Year CPU Life Cycle Support Until Q1' 36 (Based on Intel IOTG Roadmap)
-
系统
处理器
Intel Atom® X Series Processors, BGA 1493
Intel® Atom® x6425E Processor, Quad Core, 1.5M Cache, 2.0GHz (3.0GHz), 12W
Intel® Atom® x6211E Processor, Dual Core, 1.5M Cache, 1.3GHz (3.0GHz), 6W
Intel® Atom® x6413E Processor, Quad Core, 1.5M Cache, 1.5GHz (3.0GHz), 9W
Intel® Celeron® J6413 Processor, Quad Core, 1.5M Cache, 1.8GHz (3.0GHz), 10W
内存
Two 260-pin SODIMM up to 32GB
Dual channel DDR4 up to 3200MHz (in-band ECC support in embedded/industrial SKU)
BIOS
AMI SPI 256Mbit (supports UEFI boot only)
显示
控制器
Intel® UHD Graphics
特性
OpenGL 4.5, DirectX 12, Open CL 1.2, Vulkan 1.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H.265, VP8, VP9
HW Encode: AVC/H.264, JPEG/MJPEG, HEVC/H.265, VP9
显示器
1 x DP++ (Colay VGA, MOQ required)
1 x HDMI 2.0 (Colay DP++, MOQ required)
1 x eDP/LVDS (eDP in priority)
HDMI: resolution up to 4096x2160 @ 24Hz
DP++: resolution up to 4096x2160 @ 60Hz
eDP: resolution up to 4096x2160 @ 60Hz
VGA: resolution up to 2560x1600 @ 60Hz
LVDS: resolution up to 1920x1200 @ 60Hz
三重显示
DP++/VGA + HDMI/DP++ + eDP/LVDS
扩充
界面
1 x PCIe x4 (Default: PCIe x1 signal with M.2 B key active/ Opt: PCIe x2 signal with M.2 B key inactive)
1 x M.2 2242/2280/3052 B Key (PCIe x1/SATA/USB2.0)
1 x M.2 2230 E Key (PCIe x1/USB2.0)
1 x Nano SIM socket (connected to M.2 B key)
音讯
音讯编译码器
Realtek ALC888
以太网路
PHY
-40~85°C: 2 x Intel® I225IT (10/100/1000/2500Mbps) or
-5~65°C: 2 x Intel® I225LM (10/100/1000/2500Mbps)
背板输入/输出
以太网络
2 x 2.5GHz RJ45
USB
2 x USB 3.2 Gen2
2 x USB 3.2 Gen1
显示
1 x HDMI /DP++ (opt., MOQ required)
1 x DP++ /VGA (opt., MOQ required)
音源
1 x Line-out
内部输入/输出
串行端口
2 x RS-232/422/485 (RS-232 w/ power) (2.0mm pitch)
4 x RS-232 (2.0mm pitch)
USB
4 x USB 2.0 (2.0mm pitch) or
2 x USB 2.0 (2.00mm pitch) + 1 x Vertical USB 2.0 (type A) (opt., MOQ required)
显示
1 x eDP LCD Panel Connector (Colay LVDS LCD, auto-detection)
1 x LCD/Inverter Power
音效
1 x S/PDIF
1 x Line-in/Mic-in
SATA
2 x SATA 3.0 (up to 6Gb/s) (one SATA port shared with M.2 B key)
DIO
1 x 8-bit DIO
SMBus
1 x SMBus
监视定时器
看门狗定时器
System Reset, Programmable via Software from 1 to 255 Seconds
安全性
信赖平台模块
fTPM (default)
dTPM (option)
电源
类型
Single 12V +/-10% DC (EHL171)
Wide Range 9~36V (EHL173)
端口
DC-in Jack
Right Angle Connector (4-pin) (opt., MOQ required)
Vertical Type Connector (4-pin) (opt., MOQ required)
耗能
Idle: Celeron J6413 10W: 12V @ 0.66A (7.92W)
Max: Celeron J6413 10W: 12V @ 1.98A (23.76W)
RTC 电池
CR2032 Coin Cell
支持操作系统
微软
Windows 10 IoT Enterprise 64-bit
Linux
Linux
环境指标
温度
Operating: -5 to 65°C, -40 to 85°C
Storage: -40 to 85°C
湿度
Operating: 5 to 90% RH
Storage: 5 to 90% RH
MTBF
MTBF 349,721 hrs @ 25°C; 236,303 hrs @ 45°C; 164,112 hrs @ 60°C; 82,397 hrs @ 85°C;
Calculation model: Telcordia Issue 4
Environment: GB, GC – Ground Benign, Controlled
机械结构
尺寸
Mini-ITX Form Factor 170mm (6.7") x 170mm (6.7")
高度
PCB: 1.6mm
Top Side: TBD
安规认证
认证
CE, FCC, RoHS
装箱单
装箱单
1 EHL171/EHL173 motherboard
1 COM port cable (Length: 250mm, 1 x COM ports) A81-015011-001G
1 Serial ATA data with power cable (Length: 250mm) A81-002013-000G
1 Heat sink TBD
订购资讯
- 型号 料号 描述
- EHL171-CT-6425E 770-EHL1711-100G Intel Atom x6425E processor, 2 SODIMM, 1 DP++, 1 HDMI, 2 LAN, 2 RS-232, 4 RS-232/422/485, 2 USB 3.2 Gen2, 2 USB 3.2 Gen1, 4 USB 2.0, 12V DC, Fanless, -40 to 85°C
- EHL171-CB-6413 770-EHL1711-300G Intel Atom J6413 processor, 2 SODIMM, 1 VGA, 1 HDMI, 2 LAN, 2 RS-232, 4 RS-232/422/485, 2 USB 3.2 Gen2, 2 USB 3.2 Gen1, 4 USB 2.0, 12V DC, Fanless, -5 to 65°C
- EHL173-CT-6425E 770-EHL1731-100G Intel Atom x6425E processor, 2 SODIMM, 1 DP++, 1 HDMI, 2 LAN, 2 RS-232, 4 RS-232/422/485, 2 USB 3.2 Gen2, 2 USB 3.2 Gen1, 4 USB 2.0, 12V DC, Fanless, -40 to 85°C
- EHL173-CT-6211E 770-EHL1731-200G Intel Atom x6211E processor, 2 SODIMM, 2 DP++, 2 LAN, 2 RS-232, 4 RS-232/422/485, 2 USB 3.2 Gen2, 2 USB 3.2 Gen1, 4 USB 2.0, 9-36V DC, Fanless, -40 to 85°C
- EHL173-CT-6413E 770-EHL1731-400G Intel Atom x6413E processor, 2 SODIMM, 1 DP++, 1 HDMI, 2 LAN, 2 RS-232, 4 RS-232/422/485, 2 USB 3.2 Gen2, 2 USB 3.2 Gen1, 4 USB 2.0, 9-36V DC, Fanless, -40 to 85°C
- EHL173-CB-6413 770-EHL1731-300G Intel Atom J6413 processor, 2 SODIMM, 1 VGA, 1 HDMI, 2 LAN, 2 RS-232, 4 RS-232/422/485, 2 USB 3.2 Gen2, 2 USB 3.2 Gen1, 4 USB 2.0, 9-36V DC, Fanless, -5 to 65°C
-
选购品
- 品名 料号 描述
- USB port cable A81-001032-016G Length: 200mm
- COM port cable A81-015011-001G Length: 250mm, 1 x COM port
- Serial ATA data with power cable A81-002013-000G Length: 300mm
-
-
