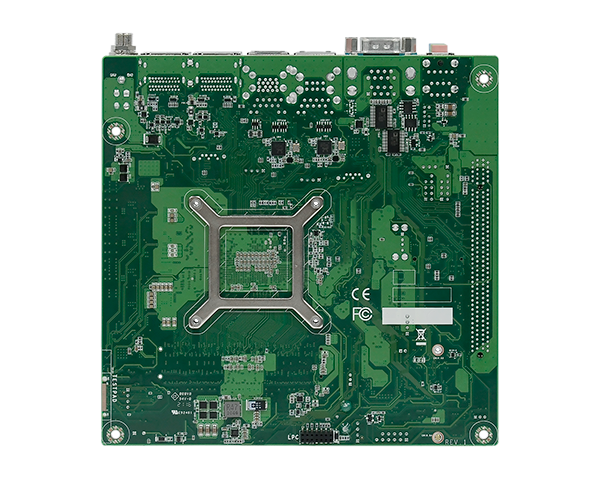

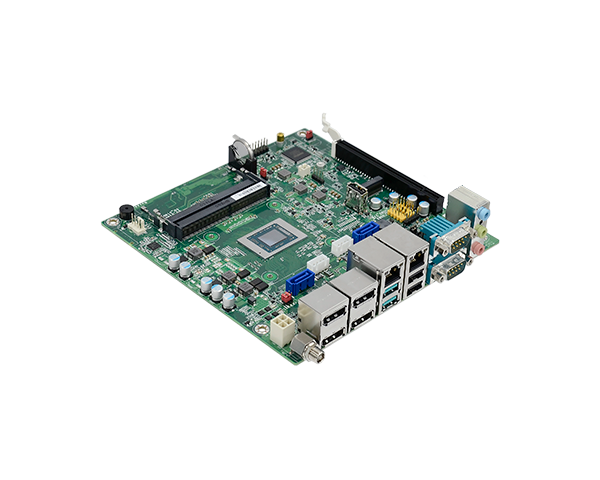

RNO171 AMD® Ryzen™ V2000 Mini-ITX
■2 DDR4 3200MHz SODIMM up to 64GB
■Four independent displays: DP++ + DP++ + DP++ + DP++
■Multiple expansion: 1 PCIe x16, 1 M.2 M Key
■Rich I/O: 2 GbE, 6 COM, 2 USB 3.1 Gen1, 7 USB 2.0, SATA 3.0
■10-Year CPU Life Cycle Support Until Q4' 30 (Based on AMD Roadmap)
-
系统
处理器
AMD® Ryzen™ V2000 Series Processors, BGA V2748
AMD® Ryzen™ V2748, 8C/16T, 4MB Cache, 7 CU, 2.9GHz (4.25GHz),45W
AMD® Ryzen™ V2546, 6C/12T, 3MB Cache, 6 CU, 3.0GHz (3.95GHz),45W
AMD® Ryzen™ V2718, 8C/16T, 4MB Cache, 7 CU, 1.7GHz (4.15GHz),15W
AMD® Ryzen™ V2516, 6C/12T, 3MB Cache, 6 CU, 2.1GHz (3.95GHz),15W
内存
Two 260-pin SODIMM up to 64GB
Dual channel DDR4 up to 3200MHz (ECC/ non ECC support)
BIOS
AMI BIOS
显示
控制器
AMD® RadeonTM VEGA7 Graphics
特性
OpenGL 4.6, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9
显示器
4 x DP++
DP++: resolution up to 4096x2160 @ 60Hz
扩充
界面
1 x PCIe x16 (x8 Gen3)
1 x M.2 2280 M Key (SATA 3.0/ PCIe x4) (support 2242 by BOM opt.)
音讯
音讯编译码器
Realtek ALC888S-VD2-GR
以太网路
控制器
2 x Realtek RTL8119-CG (10/100/1000Mbps)

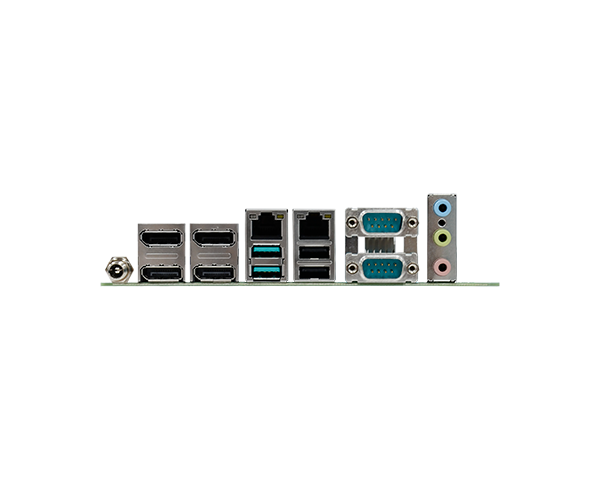

背板输入/输出
以太网络
2 x GbE (RJ-45)
串口
1 x RS-232/422/485 (DB-9)
1 x RS-232 (DB-9)
USB
2 x USB 3.1 Gen1
2 x USB 2.0
显示
4 x DP++
音源
1 x Mic-in
1 x Line-in
1 x Line-out
内部输入/输出
串行端口
4 x RS-232 (2.0mm pitch) (TX/RX signal only)
USB
3 x USB 2.0 (2.54mm pitch) + 1 x USB 2.0 Vertical Type A (default) or
4 x USB 2.0 (2.54mm pitch) (opt.)
音效
1 x S/PDIF
1 x Audio (Mic-in/Line-out)
SATA
2 x SATA 3.0 (up to 6GB/s) (with 7-pin VCC support)
2 x SATA Power
监视定时器
看门狗定时器
System Reset, Programmable via Software from 1 to 255 Seconds
安全性
信赖平台模块
TPM2.0 (opt.)
电源
类型
Single 12V +/-5% DC
端口
Straight Type Connector (4-pin)
DC-in Jack (available upon request)
Right Angle Connector (4-pin) (available upon request)
耗能
Idle: V2748: 12V @ 0.23A (2.76W)
Max: V2748: 12V @ 2.6A (31.20W)
RTC 电池
CR2032 Coin Cell
支持操作系统
微软
Windows 10
Linux
Linux
环境指标
温度
Operating: -5 to 65°C
Storage: -40 to 85°C
湿度
Operating: 10 to 90% RH
Storage: 10 to 90% RH
MTBF
RNO171-CB-V2748: 360,622 hrs @ 25°C; 147,282 hrs @ 45°C; 65,054 hrs @ 60°C;
Calculation model: Telcordia Issue 4
Environment: GB, GC – Ground Benign, Controlled
机械结构
尺寸
Mini-ITX Form Factor
170mm (6.7") x 170mm (6.7")
高度
PCB: 1.6mm
Top Side: 37.7mm
Bottom Side: 4.3mm
装箱单
装箱单
1 RNO171 motherboard
1 I/O shield A49-GH1710-000G
1 Cooler
(For 25W, height:35mm) A71-108114-010G
(For 54W, height:47mm) A71-108113-000G
订购资讯
- 型号 料号 描述
- RNO171-CB-V2748 770-RNO1711-000G AMD® Ryzen™ V2748, 2 DDR4 SODIMM, 2 GbE, 4 DP++, 1 RS-232/422/485, 5 RS-232, 2 USB 3.1 Gen1, 7 USB 2.0, 12V, TPM2.0 (opt.), Thermal: Active, -5 to 65°C
- RNO171-CB-V2546 770-RNO1711-100G AMD® Ryzen™ V2546, 2 DDR4 SODIMM, 2 GbE, 4 DP++, 1 RS-232/422/485, 5 RS-232, 2 USB 3.1 Gen1, 7 USB 2.0, 12V, TPM2.0 (opt.), Thermal: Active, -5 to 65°C
- RNO171-CB-V2718 770-RNO1711-200G AMD® Ryzen™ V2718, 2 DDR4 SODIMM, 2 GbE, 4 DP++, 1 RS-232/422/485, 5 RS-232, 2 USB 3.1 Gen1, 7 USB 2.0, 12V, TPM2.0 (opt.), Thermal: Active, -5 to 65°C
- RNO171-CB-V2516 770-RNO1711-300G AMD® Ryzen™ V2516, 2 DDR4 SODIMM, 2 GbE, 4 DP++, 1 RS-232/422/485, 5 RS-232, 2 USB 3.1 Gen1, 7 USB 2.0, 12V, TPM2.0 (opt.), Thermal: Active, -5 to 65°C
-
选购品
- 品名 料号 描述
- SATA signal and power cable A81-002013-000G
- USB port cable 332-253010-026G Length: 200mm
- COM port cable A81-015041-018G Length: 300m
-
-
