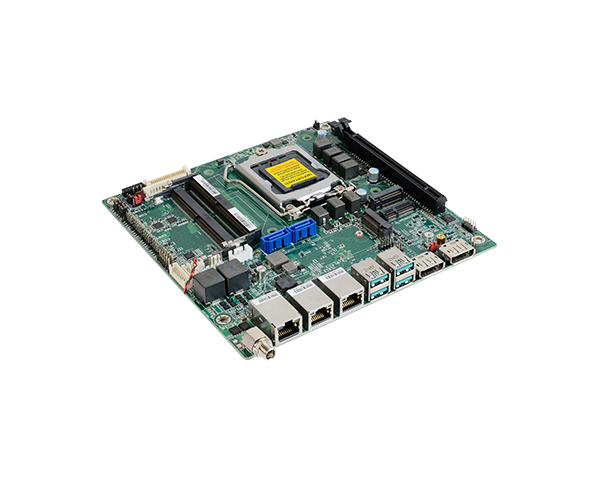

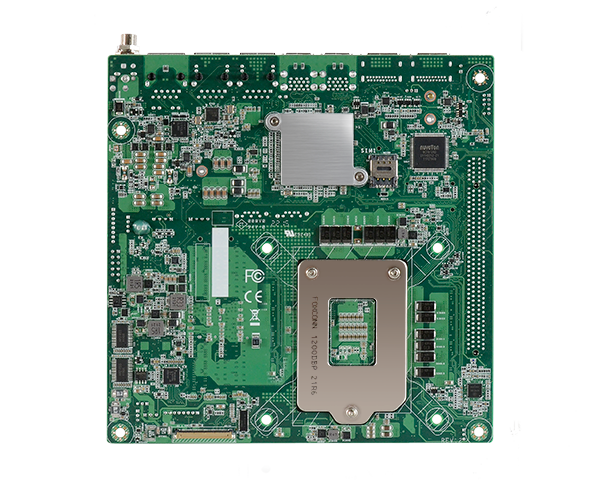

CMS101/CMS103 10th Generation Intel® Core™ Processors
■2 DDR4 2933MHz SODIMM up to 64GB
■Multiple Displays: 2 DP++, 1 LVDS/eDP
■Supports up to 4K/2K resolution
■Multiple Expansions: 1 PCIe x16, 1 M.2 M Key, 1 M.2 B Key, 1 M.2 E Key
■Rich I/O: 1 Intel 2.5GbE, 2 Intel GbE, 4 COM, 4 USB 2.0, W480/Q470: 4 USB 3.2 Gen2, H420: 4 USB 3.2 Gen1
■15-Year CPU Life Cycle Support Until Q2' 34 (Based on Intel IOTG Roadmap)
-
系统
处理器
10th Gen Intel® Xeon/Core™/Pentium/Celeron Processors, LGA 1200 Socket
Intel® Xeon W-1290TE Processor (Core 10; Max speed 4.5GHz; TDP 35W) (W480E only)
Intel® Xeon W-1270TE Processor (Core 8; Max speed 4.4GHz; TDP 35W) (W480E only)
Intel® Xeon W-1250TE Processor (Core 6; Max speed 3.8GHz; TDP 35W) (W480E only)
Intel® Core i9-10900E Processor (Core 10; Max speed 4.7GHz; TDP 65W)
Intel® Core i9-10900TE Processor (Core 10; Max speed 4.5GHz; TDP 35W)
Intel® Core i7-10700E Processor (Core 8; Max speed 4.5GHz; TDP 65W)
Intel® Core i7-10700TE Processor (Core 8; Max speed 4.4GHz; TDP 35W)
Intel® Core i5-10500E Processor (Core 6; Max speed 4.2GHz; TDP 65W)
Intel® Core i5-10500TE Processor (Core 6; Max speed 3.7GHz; TDP 35W)
Intel® Core i3-10100E Processor (Core 4; Max speed 3.8GHz; TDP 65W)
Intel® Core i3-10100TE Processor (Core 4; Max speed 3.6GHz; TDP 35W)
Intel® Pentium G6400E Processor (Core 2; Max speed 3.8GHz; TDP 65W)
Intel® Pentium G6400TE Processor (Core 2; Max speed 3.2GHz; TDP 35W)
Intel® Celeron G5900E Processor (Core 2; Max speed 3.2GHz; TDP 65W)
Intel® Celeron G5900TE Processor (Core 2; Max speed 3.0GHz; TDP 35W)
芯片组
Intel® W480/Q470/H420 Chipset
内存
Two 260-pin SODIMM up to 64GB
Dual Channel DDR4 2933MHz
BIOS
AMI SPI 256Mbit
显示
控制器
Intel® UHD Graphics 630 (only Pentium G5400/Celeron G4900 support 610 )
特性
OpenGL 4.5, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: AVC/H.264, MPEG2, JPEG, HEVC/H265, VP8, VP9
显示器
2 x DP++
1 x LVDS/eDP
DP++: Resolution up to 4096x2304 @60Hz
LVDS: resolution up to 1920x1200 @ 60Hz
eDP: resolution up to 4096x2160 @ 60Hz
三重显示
DP++ + DP++ + LVDS/eDP
扩充
界面
1 x PCIe x16 (Gen 3)
1 x M.2 2230 E Key (USB/PCIe x1)
1 x M.2 2280 M Key (W480/Q470: PCIe x4 Gen3/SATA; H420: PCIe x1 Gen3)
1 x M.2 2242/3042/3052 B Key (W480/Q470: PCIe x1 Gen3/USB 3.2 Gen2/USB 2.0/SATA; H420: PCIe x1 Gen3/USB 3.2 Gen1/USB 2.0)
音讯
音讯编译码器
Realtek ALC888/887
以太网路
控制器
1 x Intel® I225LM PCIe(10/100/1000/2.5G speeds)
1 x Intel® I219LM PHY(10/100/1000 speeds), support vPro/AMT
1 x Intel® I211AT PCIe(10/100/1000 speeds)
背板输入/输出
以太网络
1 x 2.5GbE (RJ-45)
2 x GbE (RJ-45)
USB
W480/Q470: 4 x USB 3.2 Gen2 (dual type-A connector)
H420: 4 x USB 3.2 Gen1 (dual type-A connector)
显示
2 x DP++
内部输入/输出
串行端口
2 x RS-232/422/485 (2.0mm pitch)
2 x RS-232 (2.0mm pitch)
USB
4 x USB 2.0 (2.0mm pitch)
显示
1 x LVDS header
1 x eDP connector
音效
1 x Front Audio (2.0mm pitch)
SATA
2 x SATA 3.0 (up to 6Gb/s)
1 x SATA Power
RAID 0/1/5/10 (w/ M.2 M/B Key + 2 SATA Conn., W480/Q470 only)
DIO
1 x 8-bit DIO
1 x DIO Power
LPC
1 x LPC
SMBus
1 x SMBus
监视定时器
看门狗定时器
System Reset, Programmable via Software from 1 to 255 Seconds
安全性
信赖平台模块
fTPM (default)
dTPM2.0 (opt.)
电源
类型
Single 12V +/-10% DC (CMS101)
Wide Range 15~36V (CMS103)
端口
DC-in Jack
Right Angle Connector (4-pin) (available upon request)
Straight Type Connector (4-pin) (available upon request)
耗能
TBD
RTC 电池
CR2032 Coin Cell
支持操作系统
微软
Windows 10 IoT Enterprise 64-bit
Linux
Linux
环境指标
温度
Operating: -5 to 65°C
Storage: -40 to 85°C
湿度
Operating: 5 to 90% RH
Storage: 5 to 90% RH
MTBF
TBD
机械结构
尺寸
Mini-ITX Form Factor , 170mm (6.7") x 170mm (6.7")
高度
PCB: 1.6mm
Top Side: TBD, Bottom Side: TBD
装箱单
装箱单
1 CMS101/CMS103 motherboard
1 Serial ATA data with power cable (Length: 500mm) 332-553001-005G
1 COM port cable (Length: 250mm, 1 x COM port) A81-015011-001G
选购品
- 品名 料号 描述
- COM port cable A81-015011-001G Length: 250mm, 1 x COM ports
- Serial ATA data cable 332-553001-005G Length: 500mm
- Thermal solution A71-103004-000G For 35W, Height: 29.4mm
A71-103005-000G For 65W, Height: 45mm - DT122 Chassis 761-DT1220-200G
-
-
