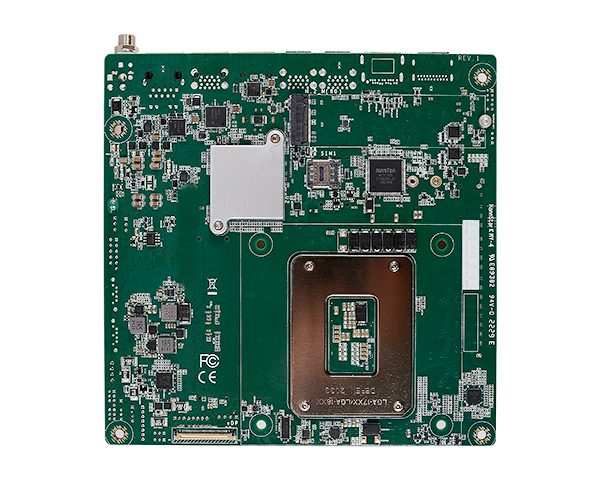

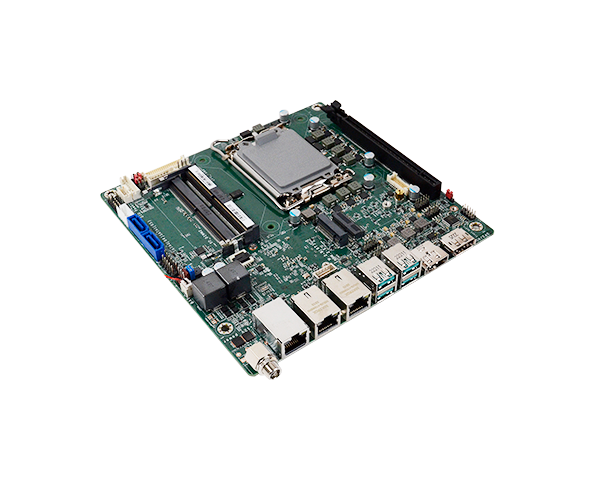

ADS101/ADS103 12th Generation Intel® Core™ Processors

■2 DDR4 3200MHz SODIMM up to 64GB
■Quad Displays: 1 DP++, 1 DP++/HDMI, 1 LVDS/eDP, 1 DFI display extension port (DP/HDMI/VGA available)
■Supports up to 4K/2K resolution
■Multiple expansion: 1 PCIe x16, 1 M.2 E Key (USB/PCIe), 1 M.2 M Key (PCIe/SATA), 1 M.2 B Key (PCIe/SATA/USB)
■Rich I/O: 1 Intel 2.5GbE, up to 2 Intel GbE, 2 COM, up to 6 USB 3.2 Gen2, 2 USB 3.2 Gen1, 4 USB 2.0, 2 SATA 3.0
■15-Year CPU Life Cycle Support Until Q2' 34 (Based on Intel IOTG Roadmap)
ꄴ上一个： CMS100 10th Generation Intel® Core™ Processors
ꄲ下一个： CMS171/CMS173 10th Generation Intel® Core™ Processors

  • 系统

    处理器

    12th Generation Intel® LGA 1700 Socket Processors, TDP support up to 65W
    Intel® Core™ i9-12900E (16 Cores, 30M Cache, up to 5.0 GHz); 65W
    Intel® Core™ i9-12900TE (16 Cores, 30M Cache, up to 4.8 GHz); 35W
    Intel® Core™ i7-12700E (12 Cores, 25M Cache, up to 4.8 GHz); 65W
    Intel® Core™ i7-12700TE (12 Cores, 25M Cache, up to 4.6 GHz); 35W
    Intel® Core™ i5-12500E (6 Cores, 18M Cache, up to 4.5 GHz); 65W
    Intel® Core™ i5-12500TE (6 Cores, 18M Cache, up to 4.3 GHz); 35W
    Intel® Core™ i3-12100E (4 Cores, 12M Cache, up to 4.2 GHz); 60W
    Intel® Core™ i3-12100TE (4 Cores, 12M Cache, up to 4.0 GHz); 35W
    Intel® Pentium® G7400E (2 Cores, 6M Cache, 3.6 GHz); 46W
    Intel® Pentium® G7400TE (2 Cores, 6M Cache, 3.0 GHz); 35W
    Intel® Celeron® G6900E (2 Cores, 4M Cache, 3.0 GHz); 46W
    Intel® Celeron® G6900TE (2 Cores, 4M Cache, 2.4 GHz); 35W

    芯片组

    Intel® R680E/Q670E/H610E Chipset

    内存

    Two 260-pin SODIMM up to 64GB
    Dual Channel DDR4 3200 MHz (ECC support: R680E only)

    BIOS

    AMI SPI 256Mbit

    显示

    控制器

    Intel® HD Gen 9 Graphics

    特性

    OpenGL 4.5, DirectX 12, OpenCL 2.1
    HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
    HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9

    显示器

    1 x DP++
    1 x DP++/HDMI
    1 x LVDS/eDP
    1 x DFI display extension port (DP/ HDMI/VGA available)
    DP++: resolution up to 4096x2304 @60Hz
    LVDS: resolution up to 1920x1200 @ 60Hz
    eDP: resolution up to 4096x2160 @ 60Hz

    四重显示

    DP++ + DP++/HDMI + LVDS/eDP + DFI display extension port (DP/HDMI/VGA available)

    扩充

    界面

    1 x PCIe x16 (Gen 5)
    1 x M.2 2230 E Key (USB/PCIe x1)
    R680E/Q670E:
    1 x M.2 2280 M Key (PCIe Gen4 x4/SATA)
    1 x M.2 2242/3042/3052 B Key (PCIe Gen3 x1/SATA/USB 3.2 Gen2/USB 2.0)
    H610E:
    1 x M.2 2280 M Key (PCIe Gen3 x1/SATA)
    1 x M.2 2242/3042/3052 B Key (SATA/USB 3.2 Gen1/USB 2.0)

    音讯

    音讯编译码器

    Realtek ALC888

    以太网路

    控制器

    1 x Intel® I225LM PCIe(10/100/1000/2.5G speeds)
    1 x Intel® I219LM PHY(10/100/1000 speeds) (support vPro/AMT)
    (H420E: I219V no supporting vPro/AMT)
    1 x Intel® I210AT PCIe(10/100/1000 speeds)(Opt.)

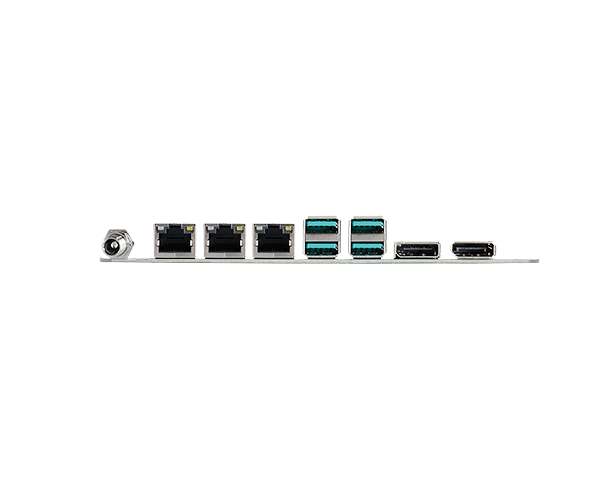

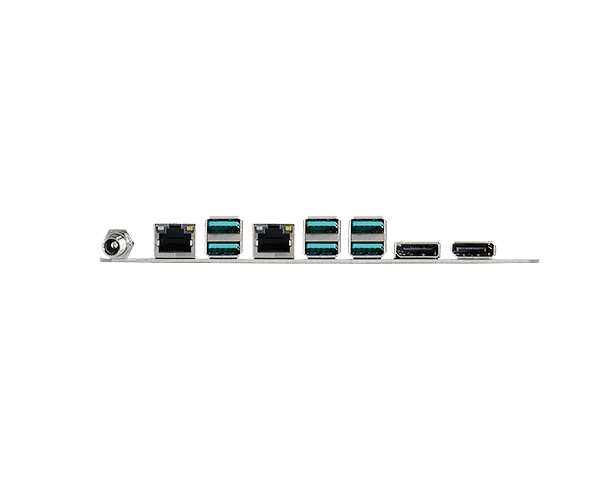

    背板输入/输出

    以太网络

    1 x 2.5GbE (RJ-45)
    1 x GbE (RJ-45) (2x by Opt.)

    USB

    R680E/Q670E: 4 x USB 3.2 Gen2 (Opt.: up to 6 x USB 3.2 Gen2)
    H610E: 2 x USB 3.2 Gen2 +1 x USB 3.2 Gen1

    显示

    1 x DP++
    1 x DP++/HDMI
    1 x DFI display extension for (DP/HDMI/VGA) (Opt.)

    音源

    1 x Line-out
    1 x Mic-in

    内部输入/输出

    串行端口

    2 x RS-232/422/485 (without power) (2.54mm pitch)

    USB

    4 x USB 2.0 (2.54mm pitch)
    2 x USB 3.2 Gen1 (R680E/Q670E only)

    显示

    1 x LVDS header
    1 x eDP connector

    音效

    1 x Front Audio Header

    SATA

    2 x SATA 3.0 (up to 6Gb/s)
    1 x SATA Power
    RAID 0/1/5/10 (w/ M.2 Key-M/B slot + 2 SATA Conn.)

    DIO

    1 x 8-bit DIO

    LPC

    1 x LPC

    SMBus

    1 x SMBus

    PS/2

    N/A

    监视定时器

    看门狗定时器

    System Reset, Programmable via Software from 1 to 255 Seconds

    安全性

    信赖平台模块

    dTPM2.0

    电源

    类型

    Single 12V +/-10% DC (ADS101)
    Wide Range 15~36V (ADS103)

    端口

    DC-in Jack
    Right Angle Connector (4-pin) (available upon request)
    Straight Type Connector (4-pin) (available upon request)

    耗能

    TBD

    RTC 电池

    CR2032 Coin Cell

    支持操作系统

    微软

    Windows 10 IoT Enterprise 64-bit

    Linux

    Linux

    环境指标

    温度

    Operating: -5 to 65°C
    Storage: -40 to 85°C

    湿度

    Operating: 5 to 90% RH
    Storage: 5 to 90% RH

    MTBF

    TBD

    机械结构

    尺寸

    Mini-ITX Form Factor , 170mm (6.7") x 170mm (6.7")

    高度

    PCB: 1.6mm
    Top Side: 33.3mm, Bottom Side: 4mm

    安规认证

    认证

    CE, FCC Class B

    装箱单

    装箱单

    1 ADS101/ADS103 motherboard
    1 Serial ATA data with power cable (Length: 500mm) 332-553001-005G
    1 COM port cable (Length: 250mm, 1 x COM port) A81-015011-001G
    1 I/O shield TBD
    1 M.2 screw/standoff TBD

    选购品

    • 品名                                                                           料号                                                                     描述
    • COM port cable                                                        A81-015011-001G                                               Length: 250mm, 1 x COM ports
    • Serial ATA data cable                                                 332-553001-005G                                               Length: 500mm
    • Thermal solution                                                       A71-101136-000G                                               For 35W, Height: 29.4mm
                                                                                        A71-101137-000G                                               For 65W, Height: 46mm
      DT122 Chassis                                                           761-DT1220-200G
