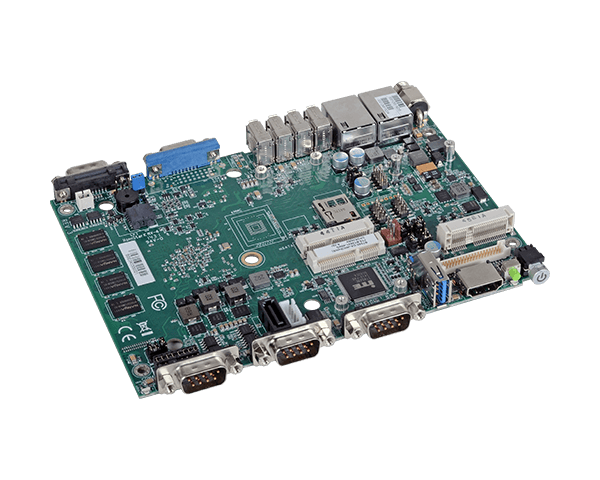

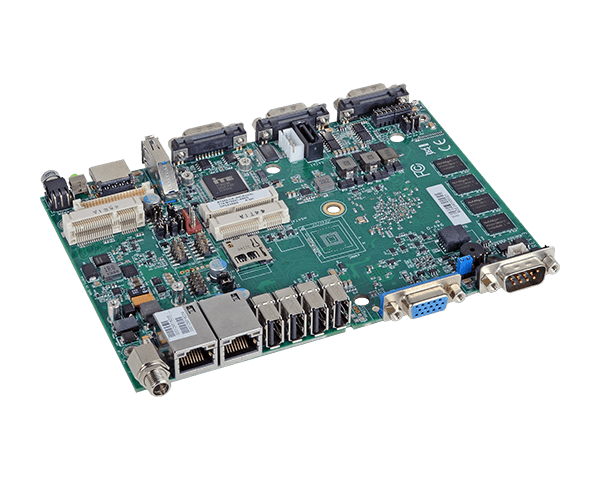

BT253 Intel Atom® 处理器 E3800 4" SBC
■2GB/4GB DDR3L ECC 板贴内存
■1 VGA, 1 LVDS, 1 HDMI
■扩充插槽: 3 Mini PCIe
■丰富I/O: 2 Intel 网口, 6 串口, 1 USB 3.0, 5 USB 2.0
■15年CPU长期支持至Q4' 28 (Based on Intel IOTG Roadmap)
-
系统
处理器
Intel Atom® E3845, Quad Core, 2M Cache, 1.91GHz, 10W
Intel Atom® E3825, Dual Core, 1M Cache, 1.33GHz, 6W
Intel® Celeron® N2807, Dual Core, 1M Cache, 1.58GHz (2.16GHz), 4.3W
Intel® Celeron® J1900, Quad Core, 2M Cache, 2GHz (2.41GHz), 10W
内存
2GB/4GB DDR3L ECC memory down (-E45/-E25)
2GB/4GB DDR3L memory down (-J00/-N07)
Single channel DDR3L 1333MHz (-E45/-J00/-N07)
Single channel DDR3L 1066MHz (-E25)
BIOS
AMI SPI 64Mbit
显示
控制器
Intel® HD Graphics
特性
Supports hardware acceleration for DirectX 11, OCL 1.2, OGL 4.0, H.264, MPEG2, MVC, VC-1, WMV9 and VP8 (supported version dependent on OS)
显示器
1 x LVDS
1 x HDMI
1 x VGA
LVDS: NXP PTN3460, 24-bit, dual channel, resolution up to 1920x1200 @ 60Hz
HDMI, DVI: resolution up to 1920x1080 @ 60Hz
VGA: 24-bit, resolution up to 2560x1600 @ 60Hz
扩充
界面
3 x Mini PCIe
1 x SIM
音讯
音讯编译码器
Realtek ALC888
以太网路
控制器
2 x Intel® I210 PCIe (10/100/1000Mbps)
前板输入/输出
串口
3 x RS232/422/485 (DP-9)
USB
1 x USB 3.0
显示
1 x HDMI
背板输入/输出
以太网络
2 x GbE (RJ45)
串口
1 x RS232/422/485 (DP-9)
USB
4 x USB 2.0
显示
1 x VGA
内部输入/输出
串行端口
2 x RS232 (2.0mm pitch)
USB
1 x USB 2.0
显示
1 x LVDS
音效
1 x Mic-in
SATA
1 x SATA 2.0 (up to 3Gb/s)
监视定时器
看门狗定时器
System Reset, Programmable via Software from 1 to 255 Seconds
安全性
信赖平台模块
Available Upon Request
电源
类型
Wide Range 16~24V
端口
DC-in
耗能
BT253-C4-E45: 18.12W with E3845 at 1.91GHz and 4GB DDR3L ECC memory down
支持操作系统
支持操作系统
Windows 10 IoT Enterprise (64-bit)
Windows 7 Ultimate x86 & SP1 (32-bit)
Windows 7 Ultimate x64 & SP1 (64-bit)
Windows 8.1 Enterprise x86 (32-bit)
Windows 8.1 Enterprise x64 (64-bit)
Linux
环境指标
温度
Operating:
0°C to 60°C - Atom, Celeron (Fanless)
0°C to 85°C - Celeron (Fanless)
-20°C to 85°C - Atom (Fanless)
Storage: -40°C to 85°C
湿度
5% to 90% RH Storage: 5 to 90% RH
机械结构
尺寸
4" board
165mm x 115mm (6.49" x 4.53")
高度
PCB: 1.6mm
Top Side: 14.31mm
Bottom Side: 2mm
装箱单
装箱单
1 BT253 board
1 Serial ATA data with power cable: A81-002008-000G
1 Heat spreader: A31-030022-200G
订购资讯
- 型号 料号 描述
- BT253-C4-E45 770-BT2535-900G Fanless, Intel® Atom™ E3845, 4GB DDR3L ECC memory down, 6 COM, 0 to 60°C
- BT253-C2-N07 770-BT2535-700G Fanless, Intel® Celeron® N2807, 2GB DDR3L ECC memory down, 6 COM, 0 to 60°C
- BT253-C4-J00 770-BT2535-800G Fanless, Intel® Celeron® J1900, 4GB DDR3L ECC memory down, 6 COM, 0 to 60°C
- BT253-C2-E25 770-BT2535-A00G Fanless, Intel® Atom™ E3825, 2GB DDR3L ECC memory down, 6 COM, 0 to 60°C
-
选购品
- 品名 料号 描述
- USB port cable A81-001032-016G
- COM port cable 332-753040-000G
- Power adapter 671-112009-100G 120W, 19V
-
-
