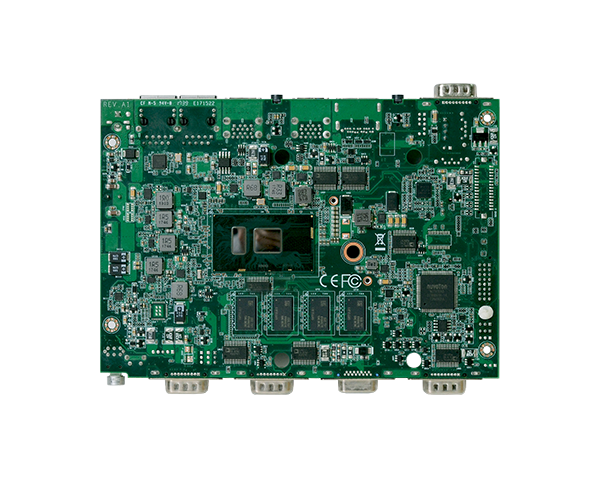

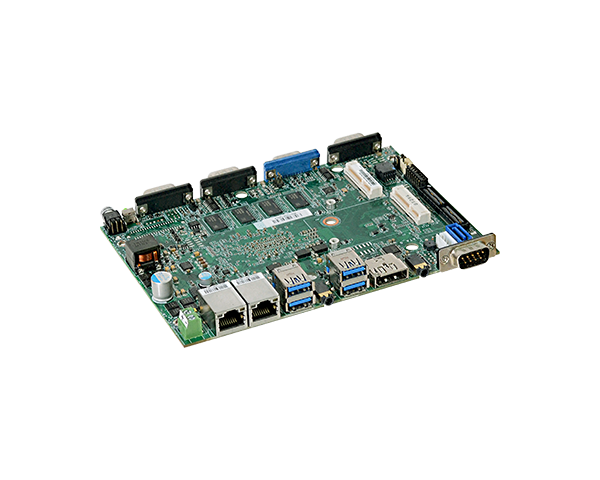

SU251/SU253 第6代 Intel® Core™ 4" SBC
■双通道 DDR4 2133MHz 板贴内存 至 8GB
■三个独立显示: VGA + DP++*/HDMI + LVDS*/eDP
■DP++ 分辨率 至 4096x2304 @ 60Hz
■丰富I/O: 2 Intel 网口, 6 串口, 4 USB 3.0, 2 USB 2.0
■15年CPU长期支持至Q3' 30 (Based on Intel IOTG Roadmap)
-
系统
处理器
eration Intel® Core™ Processors, BGA 1356 (Skylake-U*)
Intel® Core™ i7-6600U Processor, Dual Core, 4M Cache, 2.6GHz (3.4GHz), 15W
Intel® Core™ i5-6300U Processor, Dual Core, 3M Cache, 2.4GHz (3.0GHz), 15W
Intel® Core™ i3-6100U Processor, Dual Core, 3M Cache, 2.3GHz, 15W
Intel® Celeron® Processor 3955U, Dual Core, 2M Cache, 2.0GHz, 15W
内存
4GB/8GB Memory Down
Dual Channel DDR4 2133MHz
BIOS
Insyde SPI 128Mbit
显示
控制器
Intel® HD Graphics GT Series
特性
OpenGL 5.0, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: AVC/H.264, MPEG2, JPEG, HEVC/H265, VP8, VP9
显示器
1 x VGA
1 x DP++/HDMI
(HDMI available upon request)
1 x LVDS/eDP
(eDP available upon request)
VGA: resolution up to 1920x1200 @ 60Hz
DP++: resolution up to 4096x2304 @ 60Hz
HDMI: resolution up to 2560x1600 @ 60Hz or 4096x2160 @ 24Hz
LVDS: dual channel 48-bit, resolution up to 1920x1200 @ 60Hz
eDP: resolution up to 3840x2160 @ 60Hz
三重显示
VGA + DP++/HDMI (HDMI available upon request) + LVDS/eDP (eDP available upon request)
扩充
界面
1 x Full-size Mini PCIe (PCIe/USB, PCIe by default) (only Core i7/i5 supports full-size Mini PCIe)
1 x Half-size Mini PCIe (USB + PCIe/SATA, PCIe/SATA select by jumper setting, SATA by default)
音讯
音讯编译码器
Realtek ALC888S-VD2-GR
以太网路
控制器
1 x Intel® I210AT PCIe (10/100/1000Mbps)
1 x Intel® I219LM PCIe with iAMT11.0 (10/100/1000Mbps) (only Core i7/i5 supports iAMT)

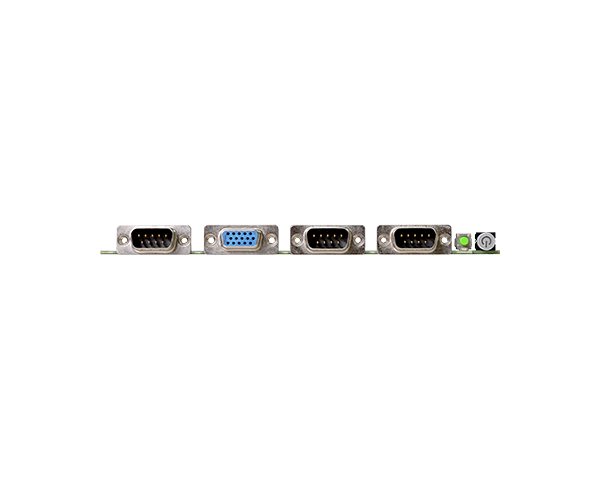

前板输入/输出
串口
2 x RS-232/422/485; 1 x RS-232( also supports an optional 8-bit DIO)
显示
1 x VGA
按键
1 x Power Button
1 x Reset Button

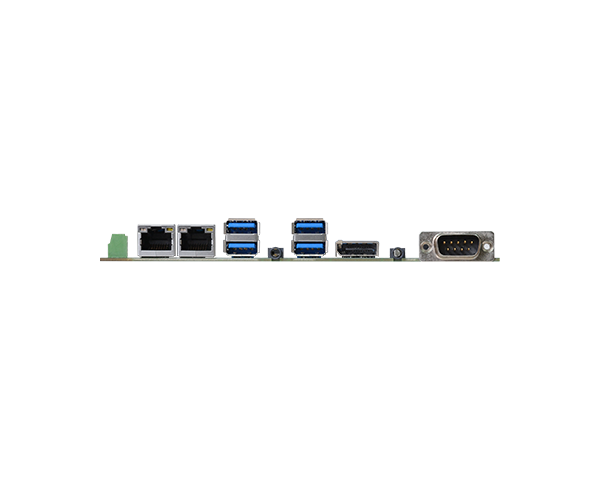

背板输入/输出
以太网络
2 x GbE (RJ-45)
串口
1 x RS-232
USB
4 x USB 3.0
显示
1 x DP++/HDMI
音源
Mic-in; Line-out
内部输入/输出
串行端口
2 x RS-232 (2.0mm pitch)
USB
2 x USB 2.0 (2.0mm pitch)
显示
1 x LVDS LCD Panel Connector
1 x LCD/Inverter Power
(Supports optional eDP connector)
音效
1 x Audio (Line-out/Mic-in)
SATA
2 x SATA 3.0 (up to 6Gb/s)
1 x SATA Power
SMBus
1 x SMBus
其他 输入/输出
1 x Front Panel
1 x Chassis Intrusion
1 x Fan Connector
监视定时器
看门狗定时器
System Reset, Programmable via Software from 1 to 255 Seconds
安全性
信赖平台模块
Available Upon Request
电源
类型
Single 12V +/-10% DC (SU251) Wide Range 15~36V (SU253)
端口
2-pin Terminal Block (Default)
DC Jack (available upon request)
Vertical Type Connector (available upon request)
耗能
SU251
Typical: 6600U:12V @ 0.45A (5.44Watt)
Max: 6600U:12V @ 3.14A (37.67Watt)
SU253
Typical: 6600U:19V @ 0.46A (8.7Watt)
Max: 6600U:19V @ 2.07A (39.29Watt)
RTC 电池
CR2032 Coin Cell
支持操作系统
支持操作系统
Windows 7 (/WES7) (32/64-bit)
Windows 8.1 (64-bit)
Windows 10 IoT Enterprise (64-bit)
Debian 8 (with VESA graphic driver)
CentOS 7 (with VESA graphic driver)
Linux
环境指标
温度
Operating: 0 to 60°C
Storage: -40 to 85°C
湿度
Operating: 5 to 90% RH
Storage: 5 to 90% RH
MTBF
SU251 : 369,377 hrs @ 25°C; 205,103 hrs @ 45°C ; 123,607 hrs @ 60°C
SU253 : 359,921 hrs @ 25°C; 199,960 hrs @ 45°C ; 120,832 hrs @ 60°C
Calculation model: Telcordia Issue 2, Method I Case 3
Environment: GB, GC – Ground Benign, Controlled
机械结构
尺寸
4" SBC Form Factor
165mm (6.49") x 115mm (4.53")
高度
PCB: 1.6mm
Top Side: 18mm
Bottom Side: 4.9mm
装箱单
装箱单
1 SU251/SU253 board
1 COM port cable (Length: 250mm, 1 x COM ports) A81-017001-001G
1 Serial ATA data cable (Length: 500mm) 332-553001-005G
1 Serial ATA power cable (Length: 250mm) A81-004041-016G
1 Audio cable (Length: 160mm) 332-953053-004G
1 Front panel cable (Length: 100mm) A81-009097-001G
1 Heat sink for -20 to 70°C (Height: 31mm) A71-011074-000G / 0 to 60°C (Height: 21mm) A71-011075-000G
订购资讯
- 型号 料号 描述
- SU253-CB4- 3955U 770-SU2531-100G Fanless, Intel® Celeron® 3955U, 4GB DDR4 Memory Down, 1 LVDS, 2 LAN, 6 COM, 6 USB, 0 to 60°C
- SU253-CB4- 6600U 770-SU2531-000G Fanless, Intel® Core™ i7-6600U, 4GB DDR4 Memory Down, 1 LVDS, 2 LAN, 6 COM, 6 USB, 0 to 60°C
- SU251-CB4- 3955U 770-SU2511-100G Fanless, Intel® Celeron® 3955U, 4GB DDR4 Memory Down, 1 LVDS, 2 LAN, 6 COM, 6 USB, 0 to 60°C
- SU251-CB4- 6600U 770-SU2511-000G Fanless, Intel® Core™ i7-6600U, 4GB DDR4 Memory Down, 1 LVDS, 2 LAN, 6 COM, 6 USB, 0 to 60°C
-
* i5-6300U and i3-6100U are supported upon request with MOQ requirement.
选购品
- 品名 料号 描述
- Heat spreader A71-808302-000G Height: 8.0mm
- Power adapter 671-106012-000G 60W, 12V, DC Jack (SU251)
671-112009-100G 120W, 19V (SU253) - Serial ATA power cable A81-004041-016G Length: 250mm
- Serial ATA data cable 332-553001-005G Length: 500mm
- COM port cable A81-017001-001G Length: 250mm, 1 x COM ports
- USB port cable A81-001032-016G Length: 200mm
-
-
