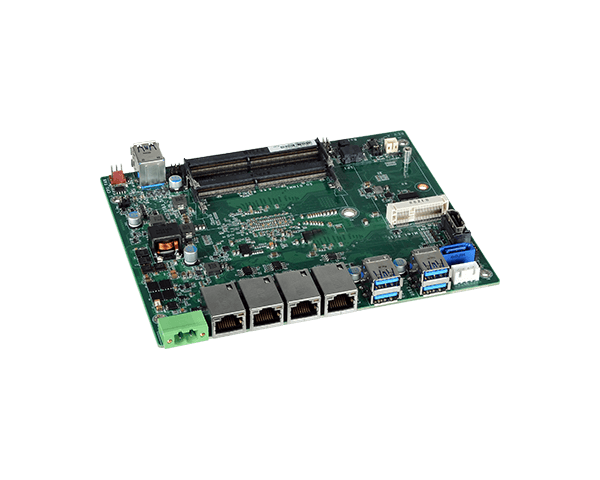

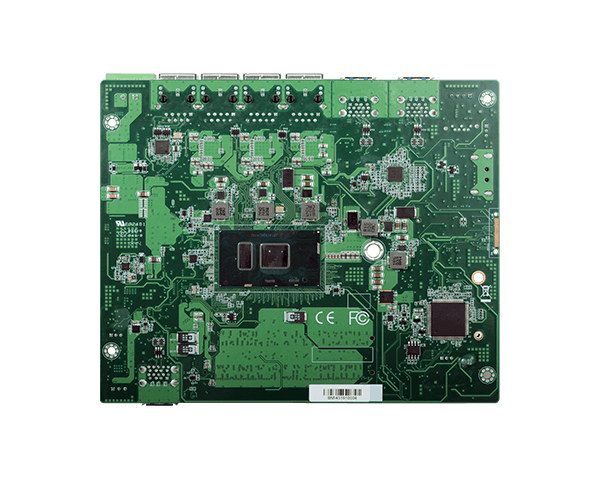

SU256-SCM 15-Year CPU Life Cycle Support Until Q4' 29 (Based on Intel IOTG Roadmap)

■15-Year CPU Life Cycle Support Until Q4' 29 (Based on Intel IOTG Roadmap)
■2 DDR4 SO-DIMM up to 8GB
■Display: 1 HDMI
■Rich I/O: 4 Intel GbE, 6 USB 3.0
■6th Gen Intel® Core™ 4" SBC
ꄴ上一个： BT259 Intel Atom® 处理器 E3800 4" SBC
ꄲ下一个： AL253 Intel Atom® Processor E3900 Series

  • 系统

    处理器

    6th Generation Intel® Core™ Processors, BGA 1356 (Skylake-U*)
    Intel® Core™ i7-6600U Processor, Dual Core, 4M Cache, 2.6GHz (3.4GHz), 15W
    Intel® Core™ i5-6300U Processor, Dual Core, 3M Cache, 2.4GHz (3.0GHz), 15W
    Intel® Core™ i3-6100U Processor, Dual Core, 3M Cache, 2.3GHz, 15W
    Intel® Core™ i7-7600U Processor, Dual Core, 4M Cache, 2.8 GHz(3.9 GHz) ,15W

    内存

    2 x 260-pin SO-DIMM up to 8GB (1R*8)
    Dual channel DDR4 2400MHz

    BIOS

    Insyde SPI 128Mbit

    显示

    控制器

    Intel® HD Graphics GT Series

    特性

    OpenGL 5.0, DirectX 12, OpenCL 2.1
    HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
    HW Encode: AVC/H.264, MPEG2, JPEG, HEVC/H265, VP8, VP9

    显示器

    1 x HDMI

    扩充

    SSD

    Support up to 1 x Flash Module mSATA SATA 3.0

    界面

    1 x Full-size Mini PCIe

    以太网路

    控制器

    3 x Intel® I210IT PCIe (10/100/1000Mbps)
    1 x Intel® I219LM PCIe with iAMT9.5 (10/100/1000Mbps) (only Core i7/i5 supports iAMT)

    前板输入/输出

    USB

    2 x USB 3.0

    背板输入/输出

    以太网络

    4 x GbE (RJ-45)

    USB

    4 x USB 3.0

    显示

    1 x HDMI

    内部输入/输出

    SATA

    1 x SATA 3.0

    LPC

    1 x LPC

    SMBus

    1 x SMBus

    监视定时器

    看门狗定时器

    System Reset, Programmable via Software from 1 to 255 Seconds

    安全性

    信赖平台模块

    TPM 2.0 (option)

    电源

    类型

    Wide Range 15~36V

    端口

    Terminal Block

    耗能

    Typical: 6600U:19V @ 0.33A (6.27Watt)
    Max: 6600U:19V @ 2.01A (38.19Watt)

    RTC 电池

    CR2032 Coin Cell

    支持操作系统

    微软

    Windows 7 (32/64-bit)
    Windows 8.1 (64-bit)
    Windows 10 WES 7
    WE8S
    CentOS 7 (1804)

    环境指标

    温度

    Operating: -20 to 70°C Storage: -40 to 85°C

    湿度

    Operating: 5 to 90% RH
    Storage: 5 to 90% RH

    MTBF

    273,084 hrs @ 25°C; 234,185 hrs @ 45°C ; 196,965 hrs @ 60°C ; 170,277 hrs @ 70°C
    Calculation model: Telcordia Issue 4
    Environment: GB, GC - Ground Benign, Controlled

    机械结构

    尺寸

    4" SBC Form Factor
    165mm x 135mm

    高度

    PCB: 1.6mm Top Side: 16.5mm, Bottom Side: 4mm

    装箱单

    装箱单

    1 SU256-SCM board
    1 Heatsink (28.4mm) A71-008158-000G

    订购资讯

    • 型号                                                                            料号                                                          描述
    • SU256-SCM                                                                770-SU2561-000G                                   Fanless, Intel® Core™ i7-7600U, 1 HDMI, TPM2.0, 4 LAN, 6 USB 3.0, 15~36V, -20 to 70°C
