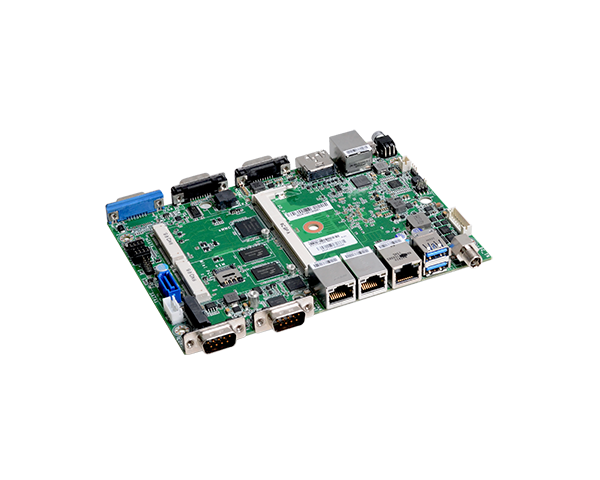

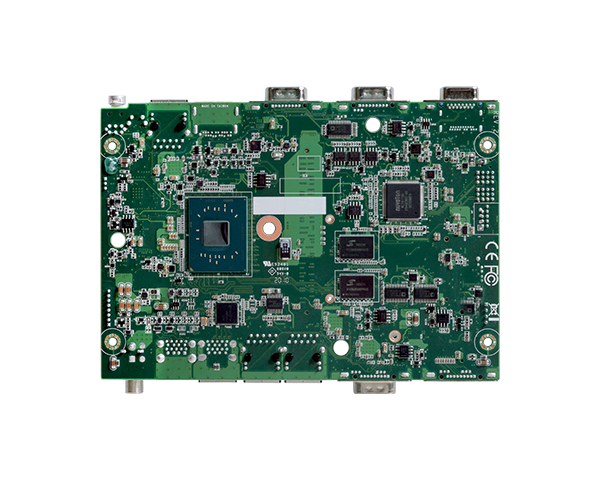

AL253 Intel Atom® Processor E3900 Series
■2GB/4GB/8GB Memory onboard + one 204-pin SO-DIMM, Dual Channel DDR3L 1866MHz
■Two independent displays: DP++/HDMI (auto-detection) + VGA/DP(opt.)
■DP resolution up to 4096x2160 @ 60Hz
■Multiple OS support: Win 7/Win 10/Linux
■Rich I/O: max. 4 Intel GbE, 4 COM, 4 USB 3.1 Gen1, 2 USB 2.0
■Extended operating temperature: -40 to 70°C
■15-Year CPU Life Cycle Support Until Q2' 32 (Based on Intel IOTG Roadmap)
-
系统
处理器
Intel Atom® Processor E3900 Series, BGA 1296
Intel Atom® x7-E3950 Processor, Quad Core, 2M Cache, 1.6GHz (2.0GHz), 12W
Intel Atom® x5-E3940 Processor, Quad Core, 2M Cache, 1.6GHz (1.8GHz), 9.5W
Intel Atom® x5-E3930 Processor, Dual Core, 2M Cache, 1.3GHz (1.8GHz), 6W
Intel® Pentium® Processor N4200, Quad Core, 2M Cache, 1.1GHz (2.5GHz), 6W
内存
2GB/4GB/8GB Memory onboard + one 204-pin SO-DIMM
Dual Channel DDR3L 1866MHz
The system supports a combined maximum memory size of 8GB total
BIOS
AMI SPI 128Mbit (support UEFI/legacy mode)
显示
控制器
Intel® HD Graphics
特性
OpenGL 4.2, Direct X 11.1, OpenCL 1.2, OGL ES 3.0
HW Decode: H.264, MPEG2, VC1, VP8, H.265, MPEG4
HW Encode: H.264, MPEG2, MPEG4
显示器
1 x DP++/HDMI (auto-detection)
1 x VGA/DP(opt.)
DP: resolution up to 4096x2160 @ 60Hz
HDMI: resolution up to 3840x2160 @ 30Hz
VGA: resolution up to 1920x1200 @ 60Hz
双重显示
DP++/HDMI + VGA/DP(opt.)
储存
eMMC
1 x 8G/16G/32G/64G (opt.)
扩充
界面
1 x Full-size mSATA (SATA, USB is available by BOM option)
1 x Full-size Mini PCIe (USB2.0/LPC/PCIe, PCIe is available for config. with 4 LAN)
1 x M.2 (2230 E Key) (PCIe/USB2.0)
以太网路
控制器
4 x Intel® I211AT PCIe, co-lay with I210IT (10/100/1000Mbps)

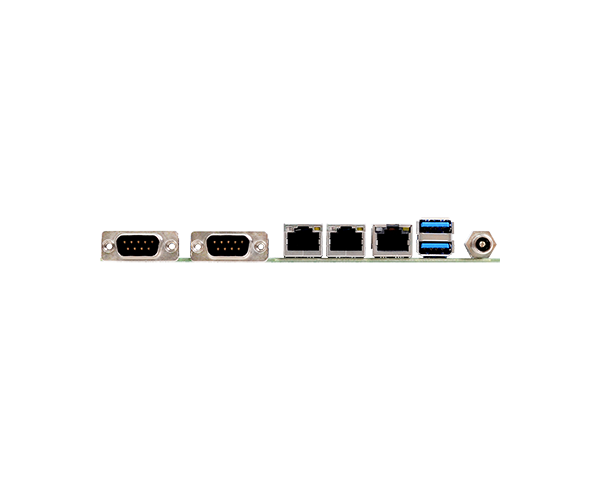

背板输入/输出
以太网络
up to 4 x GbE (RJ-45) (1 x GbE colay 2 x USB 3.1 Gen1)
串口
4 x RS-232/422/485 (1 x RS-232/422/485 colay 1 x 8-bit DIO by jumper setting)
USB
up to 4 x USB 3.1 Gen1 (2 x USB 3.1 Gen1 colay 1 x GbE)
显示
1 x DP++/HDMI (auto-detection)
1 x VGA/DP(opt.)
内部输入/输出
USB
2 x USB 2.0 (2.0mm pitch)
SATA
1 x SATA 3.0 (up to 6Gb/s, support SSD only)
1 x SATA Power
DIO
1 x 8-bit DIO
其他 输入/输出
1 x Front Panel
监视定时器
看门狗定时器
System Reset, Programmable via Software from 1 to 255 Seconds
安全性
信赖平台模块
fTPM2.0
电源
类型
9~36V DC input
端口
DC Jack
耗能
Typical: E3950:12V, 5.88Watt
Max.: E3950:12V, 18.84Watt
RTC 电池
CR2032 Coin Cell, link main board with cable
支持操作系统
微软
Windows 10 IoT Enterprise 64-bit
Windows 7 (/WES7) 32/64-bit (project support only)
Linux
Linux
环境指标
温度
Operating: 0 to 60°C/-40 to 85°C
Storage: -40 to 85°C
湿度
Operating: 5 to 90% RH
Storage: 5 to 90% RH
MTBF
4305UE: 619,529 hrs @ 25°C; 407,983 hrs @ 45°C ; 281,090 hrs @ 60°C; 142,546 hrs @ 85°C
Calculation model: Telcordia Issue 4
Environment: GB, GC – Ground Benign, Controlled
机械结构
尺寸
4" SBC Form Factor 1
165mm (6.49") x 115mm (4.53")
高度
PCB's thickness: 1.6mm
Top Side(CPU side): 6.1mm, Bottom Side: 16.4mm
安规认证
认证
CE, FCC, RoHS, UKCA
装箱单
装箱单
1 AL253 board
1 Heat sink:
- for E series 0~60°C (Height: 29mm) A71-008329-010G
- for E series -40~85°C (Height: 39mm) A71-008329-000G
- for N series 0~60°C (Height: 29mm) A71-008329-020G
1 Serial ATA data with power cable A81-002008-000G
订购资讯
- 型号 料号 描述
- AL253-BN-40E50 770-AL2531-000G Intel Atom® x7-E3950, 1 DDR4 SODIMM + 4GB memory down, DP++/HDMI + VGA, 4 LAN, 4 COM, 2 USB 3.1 Gen1, 2 USB 2.0, 9~36VDC, Fanless, 0°C to 60°C
- AL253-BN-20E30 770-AL2531-100G Intel Atom® x5-E3930, 1 DDR4 SODIMM + 2GB memory down, DP++/HDMI + VGA, 4 LAN, 4 COM, 2 USB 3.1 Gen1, 2 USB 2.0, 9~36VDC, Fanless, 0°C to 60°C
- AL253-TN-40E50 770-AL2531-200G Intel Atom® x7-E3930, 1 DDR4 SODIMM + 4GB memory down, DP++/HDMI + VGA, 4 LAN, 4 COM, 2 USB 3.1 Gen1, 2 USB 2.0, 9~36VDC, Fanless, -40°C to 85°C
- AL253-TN-20E30 770-AL2531-300G Intel Atom® x5-E3930, 1 DDR4 SODIMM + 2GB memory down, DP++/HDMI + VGA, 4 LAN, 4 COM, 2 USB 3.1 Gen1, 2 USB 2.0, 9~36VDC, Fanless, -40°C to 85°C
- AL253-BN-40E40 770-AL2531-400G Intel Atom® x5-E3940, 1 DDR4 SODIMM + 4GB memory down, DP++/HDMI + VGA, 4 LAN, 4 COM, 2 USB 3.1 Gen1, 2 USB 2.0, 9~36VDC, Fanless, 0°C to 60°C
- AL253-TN-40E40 770-AL2531-500G Intel Atom® x5-E3940, 1 DDR4 SODIMM + 4GB memory down, DP++/HDMI + VGA, 4 LAN, 4 COM, 2 USB 3.1 Gen1, 2 USB 2.0, 9~36VDC, Fanless, -40°C to 85°C
- AL253-BN-20N00 770-AL2531-600G Intel® Pentium® N4200, 1 DDR4 SODIMM + 4GB memory down, DP++/HDMI + VGA, 4 LAN, 4 COM, 2 USB 3.1 Gen1, 2 USB 2.0, 9~36VDC, Fanless, 0°C to 60°C
-
选购品
- 品名 料号 描述
- USB port cable A81-001032-016G Length: 200mm
- COM port cable 332-753040-000G Length: 250mm, 1 x COM ports
- Power adapter 671-106012-000G 60W, 12V
671-112009-100G 120W, 19V - Heat spreader for E series A71-808330-000G Height: 11mm
- Heat spreader for N series A71-808330-010G Height: 11mm
-
-
