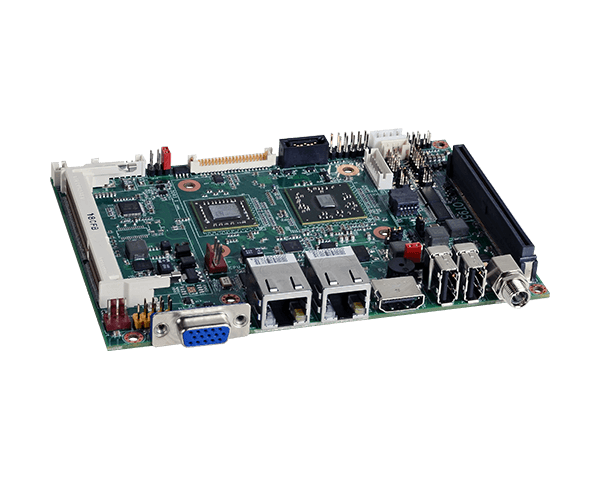

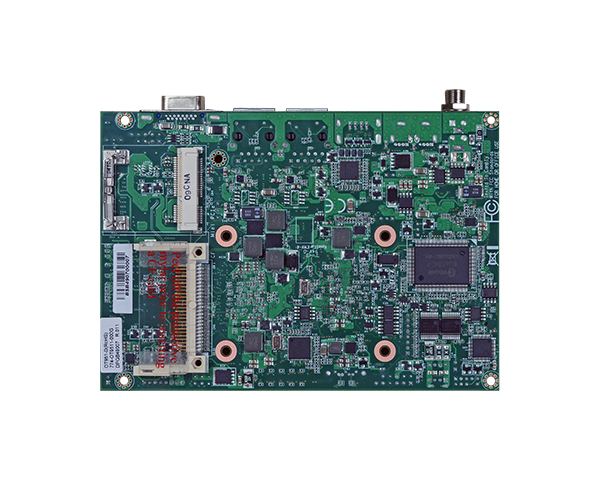

OT951-D AMD® 嵌入式 G-系列, AMD® A50M

■AMD® 嵌入式 G-系列, AMD® A50M
■1 DDR3 SODIMM 至 8GB
■1 HDMI, 1 VGA, 1 LVDS
■扩充插槽: 1 Mini PCIe, 1 I/O 扩充插槽
■丰富I/O: 2 Intel 网口, 2 串口, 4 USB 2.0
■10年CPU长期支持至 Q1' 21 (Based on AMD Roadmap)
ꄴ上一个： AL253 Intel Atom® Processor E3900 Series
ꄲ下一个： BT553 Intel Atom® 处理器 E3800

  • 系统

    处理器

    OT951-DT56N:
    - AMD® T56N, 1.65GHz, 2x 512KB L2, 18W TDP, dual-core
    - Cooling: heatsink with cooling fan
    OT951-DT40N:
    - AMD® T40N, 1.0GHz, 2x 512KB L2, 9W TDP, dual-core
    - Cooling: heatsink without cooling fan

    芯片组

    AMD® A50M

    内存

    One 204-pin DDR3 SODIMM up to 8GB
    Single Channel DDR3 1066/1333MHz (OT951-DT56N)
    Single Channel DDR3 1066MHz (OT951-DT40N)

    BIOS

    AMI SPI 64Mbit

    显示

    控制器

    AMD Radeon™ HD 6320 (OT951-DT56N)
    AMD Radeon™ HD 6290 (OT951-DT40N)

    特性

    MD Turbo Core 2.0 technology
    DirectX 11, OpenGL 3.2 and OpenCL 1.1
    Hardware H.264, MPEG4 Part 2, VC-1, and MPEG2 decode

    显示器

    1 x HDMI
    1 x LVDS
    1 x VGA
    LVDS: Chrontel CH7511B, 24-bit, dual channel, resolution up to 1920x1200 @ 60Hz
    VGA: resolution up to 2048x1536 @ 60Hz (OT951-DT56N); resolution up to 1920x1200 @ 60Hz (OT951-DT40N)
    HDMI: resolution up to 1920x1080 @ 60Hz

    扩充

    界面

    1 x Half-size Mini PCIe
    1 x Connector for daughterboard expansion (2 PCIe x1, 4 USB 2.0, 1 LPC)

    音讯

    音讯编译码器

    Realtek ALC888

    以太网路

    控制器

    2 x Realtek® RTL8111DL (10/100/1000Mbps)

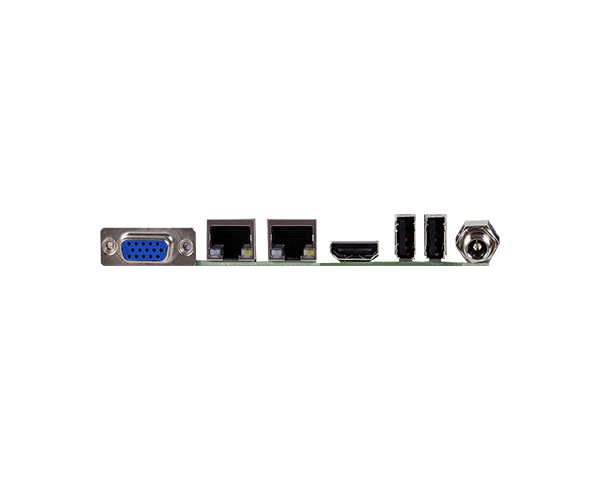

    背板输入/输出

    以太网络

    2 x GbE (RJ45)

    USB

    2 x USB 2.0

    显示

    1 x HDMI
    1 x VGA

    内部输入/输出

    串行端口

    2 x RS232/422/485

    USB

    2 x USB 2.0

    显示

    1 x LVDS

    音效

    1 x line-out
    1 x mic-in

    SATA

    1 x SATA 3.0 (up to 6Gb/s)
    1 x SATA Power

    DIO

    1 x 8-bit DIO

    SMBus

    1 x SMBus

    监视定时器

    看门狗定时器

    System Reset, Programmable via Software from 1 to 255 Seconds

    安全性

    信赖平台模块

    Available Upon Request

    电源

    类型

    12V

    端口

    DC-in jack (default)
    4-pin power connector (available upon request)

    耗能

    26.66 W with T56N at 1.65GHz and 1x 2GB DDR3 SODIMM
    19.23 W with T40N at 1.00GHz and 1x 1GB DDR3 SODIMM

    环境指标

    温度

    Operating: 0oC to 60oC Storage: -20oC to 85oC
    Windows XP Professional x86 & SP3 (32-bit)
    Windows XP Professional x64 & SP2 (64-bit)
    Windows 7 Ultimate x86 & SP1 (32-bit)
    Windows 7 Ultimate x64 & SP1 (64-bit)

    湿度

    Operating: 10% to 90% RH
    Storage: 10 to 90% RH

    机械结构

    尺寸

    3.5" board
    146mm (5.75") x 102mm (4.02")

    高度

    PCB: 1.6mm
    Top Side: 14.31mm
    Bottom Side: 8.7mm

    安规认证

    认证

    CE, FCC Class B, UL, RoHS

    装箱单

    装箱单

    1 OT951-D board
    1 Serial ATA data cable

    选购品

    • 品名                                                                                 料号                                                                描述
    • Serial ATA data cable
    • USB port cable
    • COM port cable
    • Power adapter                                                                 671-110002-100G                                           100W, 12V, Level 6
