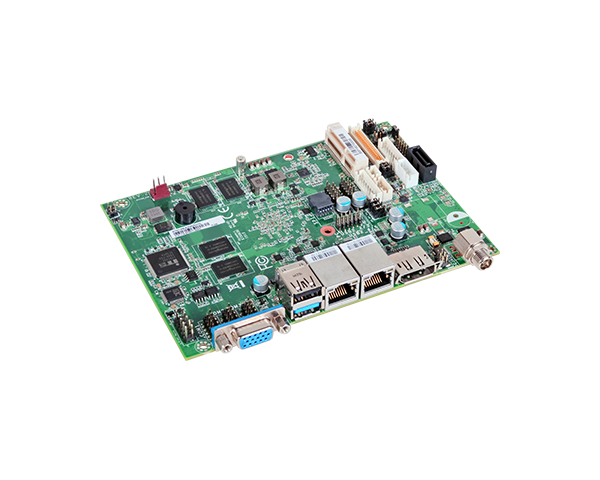

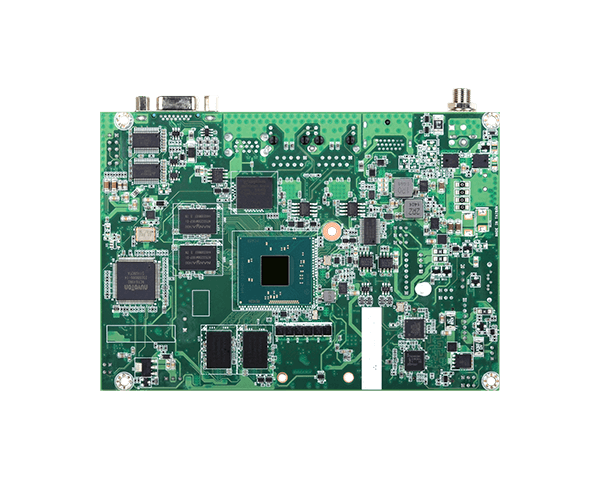

BT553 Intel Atom® 处理器 E3800
■2GB/4GB DDR3L 板贴内存
■1 VGA, 1 LVDS, 1 DP
■扩充插槽: 1 Mini PCIe
■丰富I/O: 2 Intel 网口, 3 串口, 1 USB 3.0, 5 USB 2.0
■15年CPU长期支持至Q4' 28 (Based on Intel IOTG Roadmap)
-
系统
处理器
Intel® Atom™ E3826, Dual Core, 1M Cache, 1.46GHz, 7W
Intel® Atom™ E3845, Quad Core, 2M Cache, 1.91GHz, 10W
Intel® Celeron® J1900, Quad Core, 2M Cache, 2GHz (2.41GHz), 10W
内存
2GB/4GB DDR3L memory down
Dual channel DDR3L 1066/1333MHz
BIOS
AMI SPI 64Mbit
显示
控制器
Intel® HD Graphics
特性
Supports hardware acceleration for DirectX 11, OCL 1.2, OGL 4.0, H.264, MPEG2, MVC, VC-1, WMV9 and VP8 (supported version dependent on OS)
显示器
1 x VGA
1 x LVDS
1 x DP
VGA: 24-bit, resolution up to 2560x1600 @ 60Hz
LVDS: NXP PTN3460, 24-bit, dual channel, resolution up to 1920x1200 @ 60Hz
DP: supports DP++, resolution up to 2560x1600 @ 60Hz
扩充
界面
1 x Mini PCIe
音讯
音讯编译码器
Realtek ALC888
以太网路
控制器
2 x Intel® I210 PCIe (10/100/1000Mbps)

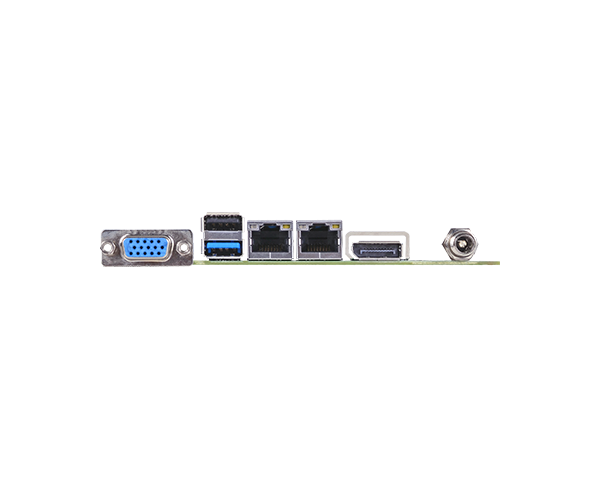

背板输入/输出
以太网络
2 x GbE (RJ45)
USB
1 x USB 3.0
1 x USB 2.0
显示
1 x DP
1 x VGA
内部输入/输出
串行端口
1 x RS485 (2.0mm pitch)
2 x RS232 (2.0mm pitch)
USB
4 x USB 2.0
显示
1 x LVDS
音效
1 x Line-out
1 x Mic-in
SATA
1 x SATA 2.0 (up to 3Gb/s)
DIO
8-bit DIO
CANBus
1 x SMBus
监视定时器
看门狗定时器
System Reset, Programmable via Software from 1 to 255 Seconds
安全性
信赖平台模块
Available Upon Request
电源
类型
Wide Range 15~36V
端口
DC-in Jack
Vertical Type Connector (4-pin) (available upon request)
耗能
Idle: E3845 10W: 15V @ 0.413A (6.195W)
Max: E3845 10W: 15V @ 0.986A (14.790W)
支持操作系统
支持操作系统
Windows 7 Ultimate x86 & SP1 (32-bit)
Windows 7 Ultimate x64 & SP1 (64-bit)
Windows 8.1 Embedded Pro x86 (32-bit)
Windows 8.1 Embedded Pro x64 (64-bit)
Windows 10 IoT Enterprise (64-bit)
环境指标
温度
Operating:
0°C to 60°C - Atom, Celeron (Fanless)
-20°C to 70°C - Celeron (Fanless)
-40°C to 85°C - Atom (Fanless)
Storage: -40°C to 85°C
湿度
Operating: 5% to 90% RH
Storage: 5 to 90% RH
MTBF
373,288 hrs @ 25°C; 218,452 hrs @ 45°C
Calculation model: Telcordia Issue 2, Method I Case 3
Environment: GB, GC – Ground Benign, Controlled
机械结构
尺寸
3.5" board
146mm (5.75") x 102mm (4.02")
高度
PCB: 1.6mm
Top Side: 16.5mm
Bottom Side: 3mm
装箱单
装箱单
1 BT553 board
1 Serial ATA data with power cable: A81-002013-000G
1 Heat spreader with heat sink: 761-BT5511-000G
订购资讯
- 型号 料号 描述
- BT553-NB-21E26 Fanless, Intel® Atom™ E3826, 2 GB DDR3L SODIMM, 16GB eMMC, 3 COM, 0 to 60°C
- BT553-NB-41E45 Fanless, Intel® Atom™ E3845, 4 GB DDR3L SODIMM, 16GB eMMC, 3 COM, 0 to 60°C
- BT553-NB-41J00 Fanless, Intel® Celeron® J1900, 4 GB DDR3L SODIMM, 16GB eMMC, 3 COM, 0 to 60°C
- BT553-NT-41E45 Fanless, Intel® Atom™ E3845, 4 GB DDR3L SODIMM, 16GB eMMC, 3 COM, -40 to 85°C
-
选购品
- 品名 料号 描述
- USB port cable A81-001032-016G
- COM port cable 332-753040-000G
- Power adapter 671-112009-100G 120W, 19V
-
-
