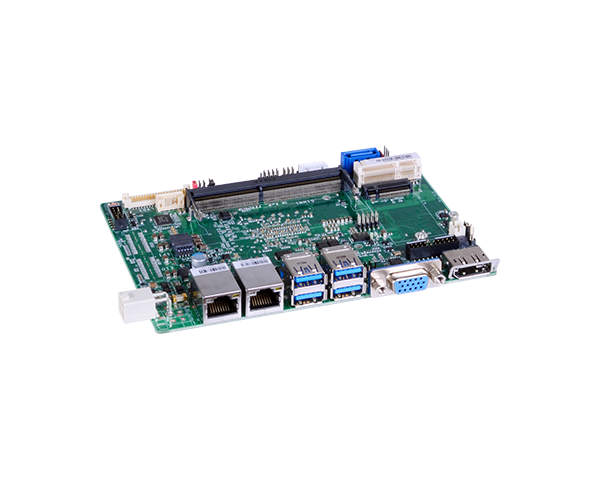

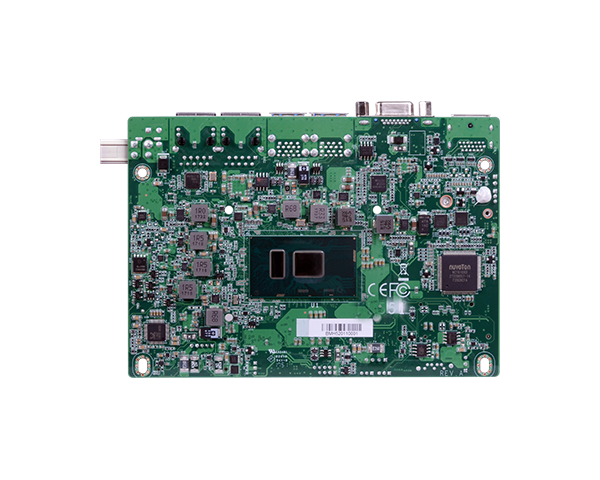

KU551 第7代 Intel® Core™ 3.5" SBC
■1 DDR4 SODIMM 至 16GB
■三个独立显示: VGA + LVDS + DP++
■无线通信: Mini PCIe
■丰富I/O: 2 Intel 网口, 4 USB 3.0, 2 USB 2.0, 1 M.2
■15年CPU长期支持至Q1' 32 (Based on Intel IOTG Roadmap)
-
系统
处理器
7th Generation Intel® Core™ Processors, BGA 1356
Intel® Core™ i7-7600U Processor, Dual Core, 4M Cache, 2.8GHz (3.9GHz), 15W
Intel® Core™ i5-7300U Processor, Dual Core, 3M Cache, 2.6GHz (3.5GHz), 15W
Intel® Core™ i3-7100U Processor, Dual Core, 3M Cache, 2.4GHz, 15W
Intel® Celeron® Processor 3965U, Dual Core, 2M Cache, 2.2GHz, 15W
内存
One 260-pin SODIMM up to 16GB
Single Channel DDR4 1866/2133MHz
BIOS
Insyde SPI 128Mbit
显示
控制器
Intel® HD Graphics GT Series
特性
OpenGL 5.0, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: AVC/H.264, MPEG2, JPEG, HEVC/H265, VP8, VP9
显示器
1 x VGA/DDI
1 x LVDS/eDP
1 x DP++/DDI
VGA: resolution up to 1920x1200 @ 60Hz
LVDS: dual channel 48-bit, resolution up to 1920x1200 @ 60Hz
DP++: resolution up to 4096x2304 @ 60Hz
三重显示
VGA + LVDS + DP++
扩充
界面
1 x Full-size Mini PCIe (PCIe/USB)
1 x M.2 B key 2242 (PCIe/USB2.0/SATA3.0)
1 x Extension I/O connector (available upon request)
音讯
音讯编译码器
Realtek ALC888
以太网路
控制器
1 x Intel® I210AT PCIe (10/100/1000Mbps)
1 x Intel® I219LM PCIe with iAMT11.6 (10/100/1000Mbps)

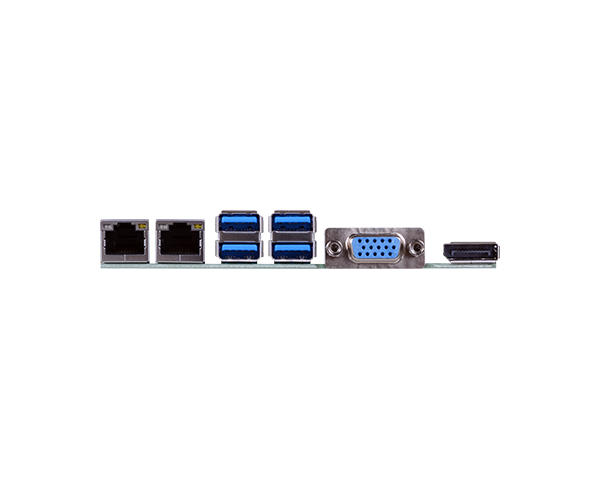

背板输入/输出
以太网络
2 x GbE (RJ-45)
USB
4 x USB 3.0
显示
1 x VGA
1 x DP++
内部输入/输出
串行端口
2 x RS-232/422/485 (2.0mm pitch)
USB
2 x USB 2.0 (2.0mm pitch)
显示
1 x LVDS LCD Panel Connector
1 x LCD/Inverter Power
音效
1 x Audio (Line-out/Mic-in)
SATA
1 x SATA 3.0 (up to 6Gb/s)
1 x SATA Power
DIO
1 x 8-bit DIO
SMBus
1 x SMBus
监视定时器
看门狗定时器
System Reset, Programmable via Software from 1 to 255 Seconds
安全性
信赖平台模块
fTPM 2.0
电源
类型
Single 12V +/-5% DC
端口
Right Angle Connector (4-pin)
DC Jack (available upon request)
Vertical Type Connector (4-pin) (available upon request)
耗能
Idle: i7-7600U:12V @ 0.9A (10.8Watt)
Max.: i7-7600U:12V @ 3.2A (38.5Watt)
RTC 电池
CR2032 Coin Cell
支持操作系统
微软
Windows 10 IoT Enterprise 64-bit
Linux
Linux
Yocto
环境指标
温度
Operating: 0 to 60°C
(Opt. -20 to 70°C)
Storage: -40 to 85°C
湿度
Operating: 5 to 90% RH
Storage: 5 to 90% RH
MTBF
477,146 hrs @ 25°C; 277,228 hrs @ 45°C; 172,875 hrs @ 60°C
机械结构
尺寸
3.5" SBC Form Factor 146mm (5.75") x 102mm (4.02")
高度
PCB: 1.6mm
Top Side: 16.3mm
Bottom Side: 4.0 mm
安规认证
认证
CE, FCC, RoHS
装箱单
装箱单
1 KU551 board
1 COM port cable (Length: 300mm, 2 x COM ports) A81-015020-001G
1 Serial ATA data cable (Length: 500mm) 332-553001-005G
1 Serial ATA power cable (Length: 250mm) A81-004041-016G
1 Heat sink (Height: 25.8mm) A71-011080-010G
订购资讯
- 型号 料号 描述
- KU551-BN-7600U 770-KU5511-000G Fanless, Intel® Core™ i7-7600U, 1 DDR4 SODIMM, 2 LAN, 2 COM, 6 USB, 0 to 60°C
- KU551-BN-7300U 770-KU5511-100G Fanless, Intel® Core™ i5-7300U, 1 DDR4 SODIMM, 2 LAN, 2 COM, 6 USB, 0 to 60°C
- KU551-BN-7100U 770-KU5511-200G Fanless, Intel® Core™ i3-7100U, 1 DDR4 SODIMM, 2 LAN, 2 COM, 6 USB, 0 to 60°C
- KU551-BN-3965U 770-KU5511-300G Fanless, Intel® Celeron® 3965U, 1 DDR4 SODIMM, 2 LAN, 2 COM, 6 USB, 0 to 60°C
- KU551-EN-7600U 770-KU5511-400G Fanless, Intel® Core™ i7-7600U, 1 DDR4 SODIMM, 2 LAN, 2 COM, 6 USB, -20 to 70°C
- KU551-EN-7300U 770-KU5511-500G Fanless, Intel® Core™ i5-7300U, 1 DDR4 SODIMM, 2 LAN, 2 COM, 6 USB, -20 to 70°C
- KU551-EN-7100U 770-KU5511-600G Fanless, Intel® Core™ i3-7100U, 1 DDR4 SODIMM, 2 LAN, 2 COM, 6 USB, -20 to 70°C
- KU551-EN-3965U 770-KU5511-700G Fanless, Intel® Celeron® 3965U, 1 DDR4 SODIMM, 2 LAN, 2 COM, 6 USB, -20 to 70°C
-
选购品
- 品名 料号 描述
- USB port cable A81-001032-016G Length: 200mm
- Power adapter 671-106012-000G 60W, 12V
- Heat spreader A71-011078-000G Height: 11mm
- Audio cable A81-022007-016G Length: 160mm
- 4 pin to DC jack cable A81-004051-016G Length: 100mm
-
-
