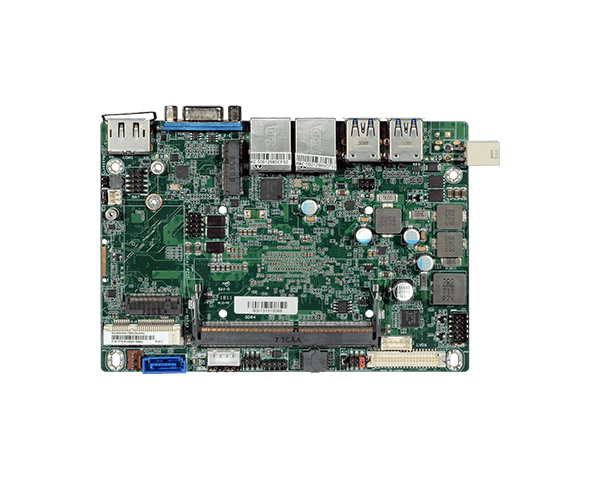

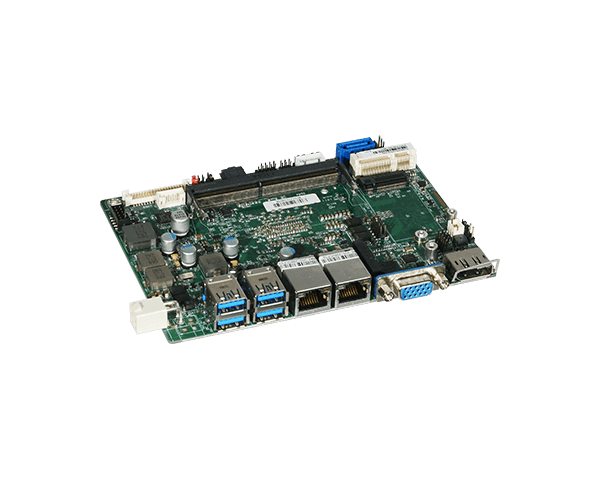

KU553 7th Gen Intel® Core™ 3.5" SBC
■1 DDR4 SODIMM up to 16GB
■Three independent displays: VGA + LVDS + DP++
■Rich I/O: 2 Intel GbE, 4 USB 3.0, 2 USB 2.0, 1 M.2
■15-Year CPU Life Cycle Support Until Q1' 32 (Based on Intel IOTG Roadmap)
-
系统
处理器
7th Generation Intel® Core™ Processors, BGA 1356
Intel® Core™ i7-7600U Processor, Dual Core, 4M Cache, 2.8GHz (3.9GHz), 15W
Intel® Core™ i5-7300U Processor, Dual Core, 3M Cache, 2.6GHz (3.5GHz), 15W
Intel® Core™ i3-7100U Processor,Dual Core, 3M Cache, 2.4GHz , 15W
Intel® Celeron® Processor 3965U, Dual Core, 2M Cache, 2.2GHz, 15W
内存
One 260-pin SODIMM up to 16GB
Single Channel DDR4 1866/2133MHz
BIOS
Insyde SPI 128Mbit
显示
控制器
Intel® HD Graphics GT Series
特性
OpenGL 5.0, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: AVC/H.264, MPEG2, JPEG, HEVC/H265, VP8, VP9
显示器
1 x VGA
1 x LVDS/eDP
1 x DP++ VGA: resolution up to 1920x1200 @ 60Hz
LVDS: dual channel 48-bit, resolution up to 1920x1200 @ 60Hz
DP++: resolution up to 4096x2304 @ 60Hz
三重显示
VGA + LVDS + DP++
扩充
界面
1 x Full-size Mini PCIe (PCIe/USB2.0/USB3.1 Gen1 (option)) with SIM slot (option)
1 x M.2 B key 2242 (PCIe Gen3/USB2.0/SATA3.0)
1 x M.2 E key 2230 (PCIe/USB2.0)
音讯
音讯编译码器
Realtek ALC888S
以太网路
控制器
Core™ Processors:
1 x Intel® I210AT PCIe (10/100/1000Mbps) or 1 x Intel® I210IT PCIe (10/100/1000Mbps)
1 x Intel® I219LM PCIe with iAMT11.6 (10/100/1000Mbps)
Celeron® Processor:
1 x Intel® I210AT PCIe (10/100/1000Mbps) or 1 x Intel® I210IT PCIe (10/100/1000Mbps)
1 x Intel® I219V PCIe with iAMT11.6 (10/100/1000Mbps)

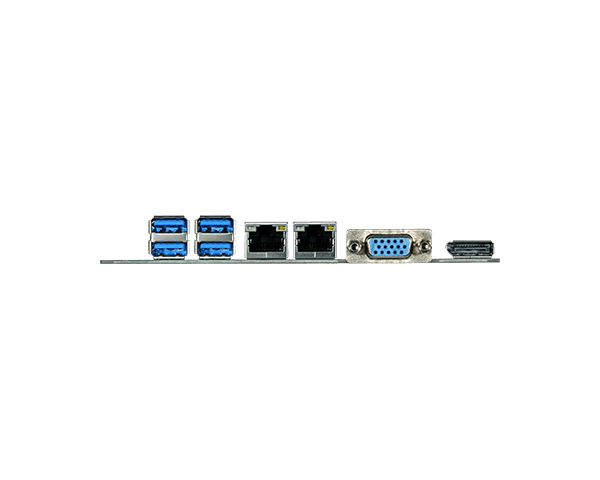

背板输入/输出
以太网络
2 x GbE (RJ-45)
USB
4 x USB 3.0
显示
1 x VGA
1 x DP++
内部输入/输出
串行端口
1 x RS-232/422/485 (2.0mm pitch)
USB
2 x USB 2.0 (2.0mm pitch)
显示
1 x LVDS LCD Panel Connector
1 x LCD/Inverter Power
音效
1 x Audio (Line-out/Mic-in)
SATA
1 x SATA 3.0 (up to 6Gb/s)
1 x SATA Power
DIO
1 x 8-bit DIO
SMBus
1 x SMBus
监视定时器
看门狗定时器
System Reset, Programmable via Software from 1 to 255 Seconds
安全性
信赖平台模块
fTPM 2.0
电源
类型
Wide Range 9~36VDC
端口
Right Angle Connector (4-pin)
DC Jack (available upon request)
Vertical Type Connector (4-pin) (available upon request)
耗能
Idle: i7-7600U: 12V @ 0.43A (5.16W)
Max: i7-7600U: 12V @ 3.16A (37.92W)
RTC 电池
CR2032 Coin Cell
支持操作系统
微软
Windows 10 IoT Enterprise 64-bit
Linux
Linux
环境指标
温度
Operating: 0 to 60°C (Opt. -20 to 70°C)
Storage: -40 to 85°C
湿度
Operating: 5 to 90% RH
Storage: 5 to 90% RH
MTBF
606, 151 hrs @ 25°C; 394, 265 @ 45°C; 267, 894 @ 60°C
机械结构
尺寸
3.5" SBC Form Factor
146mm (5.75") x 102mm (4.02")
高度
PCB: 1.6mm
Top Side: 16.3mm
Bottom Side: 4.0 mm
安规认证
认证
CE, FCC, RoHS
装箱单
装箱单
1 KU553 board
1 COM port cable (Length: 300mm) 332-753040-000G
1 Serial ATA data cable (Length: 500mm) 332-553001-205G
1 Serial ATA power cable (Length: 250mm) A81-004041-016G
1 Heat sink A71-011080-010G (Height: 26mm) or A71-011081-010G (Height: 31mm)
订购资讯
- 型号 料号 描述
- KU553-BN-7600U 770-KU5532-000G Fanless, Intel® Core™ i7-7600U, 1 DDR4 SODIMM, 2 LAN, 1 COM, 6 USB, 9~36V (Right Angle), 0 to 60°C
- KU553-BN-7300U 770-KU5532-100G Fanless, Intel® Core™ i5-7300U, 1 DDR4 SODIMM, 2 LAN, 1 COM, 6 USB, 9~36V (Right Angle), 0 to 60°C
- KU553-BN-7100U 770-KU5532-200G Fanless, Intel® Core™ i3-7100U, 1 DDR4 SODIMM, 2 LAN, 1 COM, 6 USB, 9~36V (Right Angle), 0 to 60°C
- KU553-BN-3965U 770-KU5532-300G Fanless, Intel® Celeron® 3965U, 1 DDR4 SODIMM, 2 LAN, 1 COM, 6 USB, 9~36V (Right Angle), 0 to 60°C
- KU553-EN-7600U 770-KU5532-400G Fanless, Intel® Core™ i7-7600U, 1 DDR4 SODIMM, 2 LAN, 1 COM, 6 USB, 9~36V (Right Angle), -20 to 70°C
-
选购品
- 品名 料号 描述
- USB port cable A81-001032-016G Length: 200mm
- Power adapter 671-106012-000G 60W, 12V
- 4 pin to DC jack cable A81-004051-016G
- Heat spreader A71-011078-000G Height: 11mm
- Audio cable A81-022007-016G Length: 160mm
-
-
