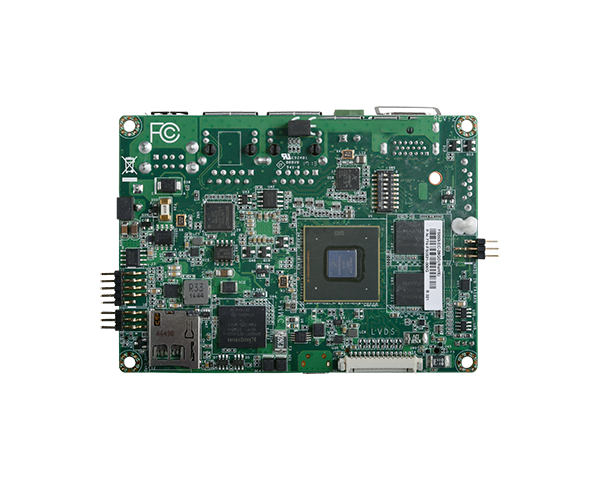

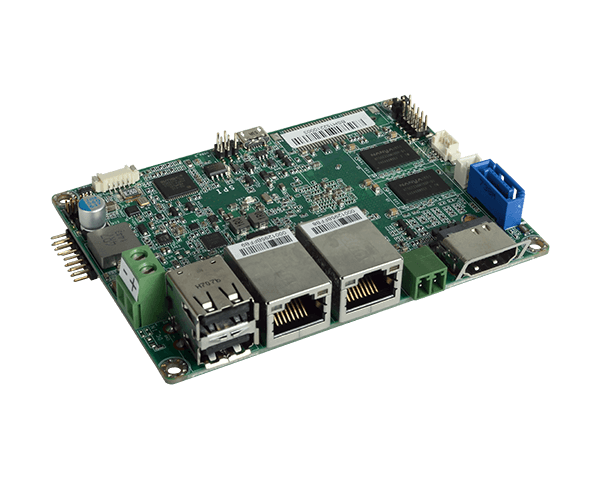

FS053 NXP i.MX6 处理器 2.5" Pico-ITX
■DDR3L SDRAM 板贴内存, 至 4GB.
■双重独立显示: HDMI + LVDS
■扩充插槽: 1 Mini PCIe, 1 SD
■丰富I/O: 2 网口, 2 串口, 4 USB 2.0
■15年CPU长期支持至Q4' 32 (Based on NXP Roadmap)
-
系统
处理器
NXP i.MX6 Cortex-A9 Dual Lite, 1.0 GHz
NXP i.MX6 Cortex-A9 Quad, 1.0 GHz
内存
1GB/2GB SDRAM Memory Down (default), 4GB (available upon request)
Single Channel DDR3L 1600/1866MHz
BIOS
4MB NOR Flash
显示
显示器
1 x HDMI
1 x LVDS
HDMI: resolution up to 1920x1080 @ 60 Hz
LVDS: single channel, resolution up to 1366x768 @ 60Hz
单显示/双重显示
Yocto: HDMI or LVDS (Default)
Android: HDMI + LVDS (available upon request)
扩充
界面
1 x Full-size Mini PCIe (PCIe/USB)
以太网路
控制器
1 x ATHEROS AR8033 Ethernet (10/100/1000Mbps)
1 x LAN7500 Ethernet (10/100/1000Mbps)
背板输入/输出
以太网络
2 x GbE (RJ-45)
串口
1 x RS-485 (2-wire)
USB
2 x USB 2.0
1 x USB 2.0 OTG Port
显示
1 x HDMI
输入/输出
eMMC
Supports 8GB, 16GB and 32GB eMMC onboard
内部输入/输出
串行端口
1 x RS-232/422/485 (8-wire)
USB
1 x USB 2.0
显示
1 x LVDS LCD Panel Connector
SATA
1 x SATA 2.0 (up to 3Gb/s) (Quad processor only)
DIO
1 x 8-bit DIO
SD
1 x Micro SD Slot
监视定时器
看门狗定时器
System Reset, Programmable via Software from 1 to 255 Seconds
电源
类型
9~36V DC
端口
Terminal block (2-pin)
耗能
Typical: 12V @ 0.355A (4.26Watt)
Max.: 12V @ 0.631A (7.58Watt)
支持操作系统
支持操作系统
Yocto (1.8, Default Preloaded on eMMC)
Android (5.1.1)
环境指标
温度
Operating: -20 to 70°C/0 to 60°C
Storage: -40 to 85°C
湿度
Operating: 5 to 95% RH
Storage: 5 to 95% RH
MTBF
486,335 hrs @ 25°C; 342,613 hrs @ 45°C ; 237,430 hrs @ 60°C
机械结构
尺寸
2.5" Pico-ITX Form Factor
100mm (3.94") x 72mm (2.83")
高度
PCB: 1.6mm
Top Side: 16.15mm
Bottom Side: 4mm
安规认证
认证
CE, FCC, RoHS
装箱单
装箱单
1 FS053 board
1 terminal block for RS485 342-361021-000
1 Heat spreader (Height: 11mm) A71-808303-000G
Note: Please choose "FS053 product page > Download button" to download the Driver.
订购资讯
- 型号 料号 描述
- FS053-EC-28QD 770-FS0532-000G Fanless, i.MX6 Quad Lite 1.0GHz, 2GB DDR3L SDRAM, 8GB Emmc, 2 LAN, 2 COM, 4 USB, 9~36V DC in terminal block, -20 to 70°C
- FS053-EC-18DL 770-FS0532-100G Fanless, i.MX6 Dual Lite 1.0GHz, 1GB DDR3L SDRAM, 8GB eMMC, 2 LAN, 2 COM, 4 USB, 9~36V DC in terminal block, -20 to 70°C
- FS053-BC-28QD 770-FS0532-200G Fanless, i.MX6 Quad 1.0GHz, 2GB DDR3L SDRAM, 8GB eMMC, 2 LAN, 2 COM, 4 USB, 9~36V DC in terminal block, 0 to 60°C
- FS053-BC-18DL 770-FS0532-300G Fanless, i.MX6 Dual Lite 1.0GHz, 1GB DDR3L SDRAM, 8GB eMMC, 2 LAN, 2 COM, 4 USB, 9~36V DC in terminal block, 0 to 60°C
选购品
- 品名 料号 描述
- Heat sink A71-008105-000G Height: 16.8mm
- COM cable A81-015044-001G Length: 250mm, 1x COM ports
- USB 2.0 port cable A81-001058-016G Length: 200mm, 1x USB ports
- Power cable for SATA and LCD backlight A81-020016-018G Length: 155mm
- Power adapter 671-106012-000G 60W, 12V, DC Jack
-
-
