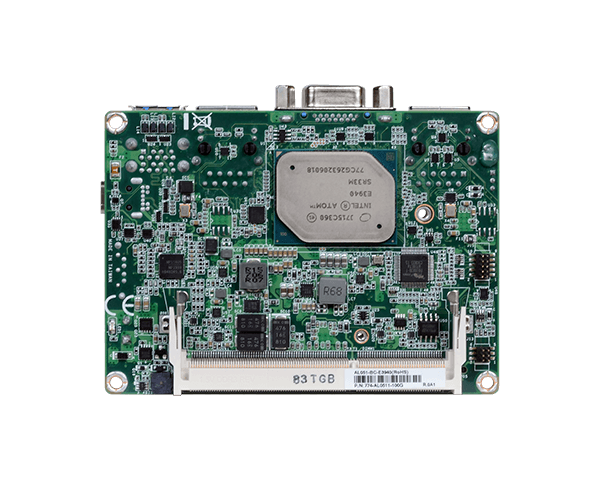

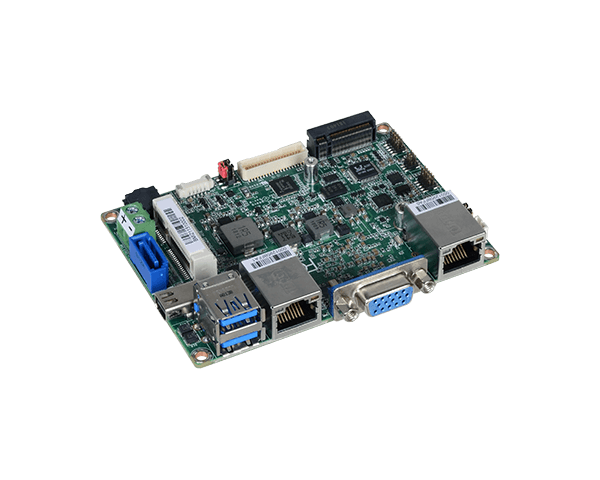

AL051 Intel® Atom™/Pentium®/Celeron® 处理器 E3900
■1 DDR3L SODIMM 至 8GB
■三重独立显示: VGA + Mini DP++ + LVDS
■扩充插槽及储存: 1 Mini PCIe, 1 M.2, 1 SMBus
■丰富I/O: 2 Intel 网口, 1 串口, 2 USB 3.1 Gen 1, 2 USB 2.0
■15年CPU长期支持至Q4' 31 (Based on Intel IOTG Roadmap)
-
系统
处理器
Intel® Atom™ Processor E3900 Family, BGA 1296
Intel® Atom™ x7-E3950 Processor, Quad Core, 2M Cache, 1.6GHz (2.0GHz), 12W
Intel® Atom™ x5-E3940 Processor, Quad Core, 2M Cache, 1.6GHz (1.8GHz), 9.5W
Intel® Atom™ x5-E3930 Processor, Dual Core, 2M Cache, 1.3GHz (1.8GHz), 6.5W
Intel® Pentium® Processor N4200, Quad Core, 2M Cache, 1.1GHz (2.5GHz), 6W
Intel® Celeron® Processor N3350, Dual Core, 2M Cache, 1.1GHz (2.4GHz), 6W
内存
One 204-pin SODIMM up to 8GB
Single Channel DDR3L 1866MHz
BIOS
Insyde SPI 64Mbit (supports UEFI boot only)
显示
控制器
Intel® HD Graphics
特性
OpenGL 4.2, Direct X 11.1, OpenCL 1.2, OGL ES 3.0
HW Decode: H.264, MPEG2, VC1, VP8, H.265, MPEG4
HW Encode: H.264, MPEG2, MPEG4
显示器
1 x Mini DP++
1 x VGA
1 x LVDS
Mini DP++: resolution up to 4096x2160 @ 60Hz
VGA: resolution up to 2048x1536 @ 50Hz
LVDS: dual channel 18/24-bit, resolution up to 1920x1200 @ 60Hz
三重显示
VGA + Mini DP++ + LVDS
扩充
界面
1 x Full-size Mini PCIe (PCIe/USB 2.0, optional USB 3.1 Gen1/USB 2.0)
1 x M.2 B key 2242. (PCIe/USB 2.0/SATA 3.0)
音讯
音讯编译码器
Realtek ALC888S-VD2-GR
以太网路
控制器
2 x Intel® I211AT PCIe (10/100/1000Mbps)
2 x Intel® I210IT PCIe (10/100/1000Mbps) (available upon request)

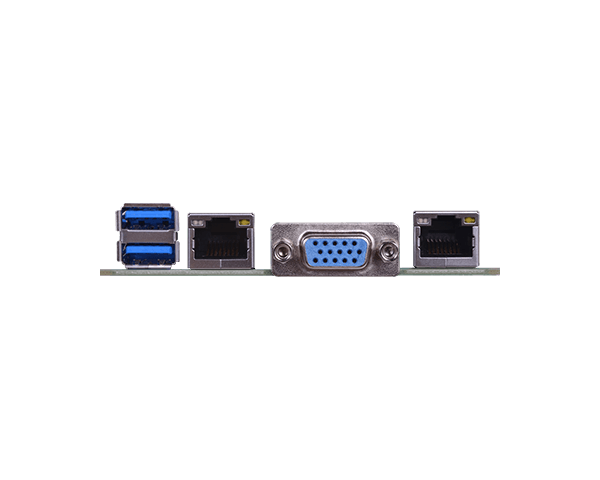

背板输入/输出
以太网络
2 x GbE (RJ-45)
USB
2 x USB 3.1 Gen 1
显示
1 x Mini DP++
1 x VGA
1 x LVDS
内部输入/输出
串行端口
1 x RS-232/422/485 (1.27mm pitch)
USB
2 x USB 2.0 (1.27mm pitch)
显示
1 x LVDS LCD Panel Connector
音效
1 x Audio (Line-out/Mic-in)
SATA
1 x SATA 3.0 (up to 6Gb/s)
DIO
1 x 8-bit DIO
SMBus
1 x SMBus
监视定时器
看门狗定时器
System Reset, Programmable via Software from 1 to 255 Seconds
安全性
信赖平台模块
fTPM2.0
电源
类型
Single 12V +/-10% DC
端口
2-pin Terminal Block
2-pin Vertical Type Connector (opt.)
耗能
Typical: E3950:12V @ 0.51A (6.12Watt)
Max.: E3950:12V @ 2.00A (24.00Watt)
RTC 电池
CR2032 Coin Cell
支持操作系统
支持操作系统 (UEFI Only)
Windows 10 IoT Enterprise (64-bit)
Linux
环境指标
温度
Operating: 0 to 60°C, -40 to 85 °C
Storage: -40 to 85°C
湿度
Operating: 5 to 90% RH
Storage: 5 to 90% RH
MTBF
497,857 hrs @ 25°C; 318,774 hrs @ 45°C ; 213,436 hrs @ 60°C
机械结构
尺寸
2.5" Pico-ITX Form Factor 100mm (3.94") x 72mm (2.83")
高度
PCB: 1.6 mm
Top Side: 7.9 mm
Bottom Side: 16.34 mm
安规认证
认证
CE, FCC, RoHS
装箱单
装箱单
1 AL051 board
1 Serial ATA data cable (Length: 152mm) A81-002000-000G
1 Y cable for SATA and inverter power (Length: 155mm) A81-020016-018G
1 Heat spreader (Height: 11mm) E Series CPU: A71-808308-010G, N Series CPU: A71-808309-010G
订购资讯
- 型号 料号 描述
- AL051-TC-E3930 770-AL0511-500G Fanless, Intel Atom® X5-E3930, 1 DDR3L SODIMM, 1 VGA, 1 LVDS, Mini DP++, 2 LAN, 1 COM, 4 USB, -40 to 85°C
- AL051-EC-E3930 770-AL0511-400G Fanless, Intel Atom® X5-E3930, 1 DDR3L SODIMM, 1 VGA, 1 LVDS, Mini DP++, 2 LAN, 1 COM, 4 USB, -20 to 70°C
- AL051-BC-N3350 770-AL0511-300G Fanless, Intel® Celeron® N3350, 1 DDR3L SODIMM, 1 VGA, 1 LVDS, Mini DP++, 2 LAN, 1 COM, 4 USB, 0 to 60°C
- AL051-BC-E3950 770-AL0511-200G Fanless, Intel Atom® X7-E3950, 1 DDR3L SODIMM, 1 VGA, 1 LVDS, Mini DP++, 2 LAN, 1 COM, 4 USB, 0 to 60°C
- AL051-BC-E3940 770-AL0511-100G Fanless, Intel Atom® X5-E3940, 1 DDR3L SODIMM, 1 VGA, 1 LVDS, Mini DP++, 2 LAN, 1 COM, 4 USB, 0 to 60°C
- AL051-BC-E3930 770-AL0511-000G Fanless, Intel Atom® X5-E3930, 1 DDR3L SODIMM, 1 VGA, 1 LVDS, Mini DP++, 2 LAN, 1 COM, 4 USB, 0 to 60°C
-
* N4200 is supported upon request with MOQ requirement.
选购品
- 品名 料号 描述
- 1 Audio cable A81-022037-016G Length: 160mm
- Power adapter 671-106012-000G 60W, 12V, DC Jack
- 1 COM port cable A81-015050-016G Length: 300mm
- USB port cable A81-001084-016G Length: 200mm
- 2 pole terminal to DC Jack cable A81-004013-000G
- Heat sink for E series CPU 0 to 60°C/wide temp A71-008111-000G Height: 22.6mm
- Heat sink for N series CPU 0 to 60°C A71-008108-000G Height: 19mm
-
-
