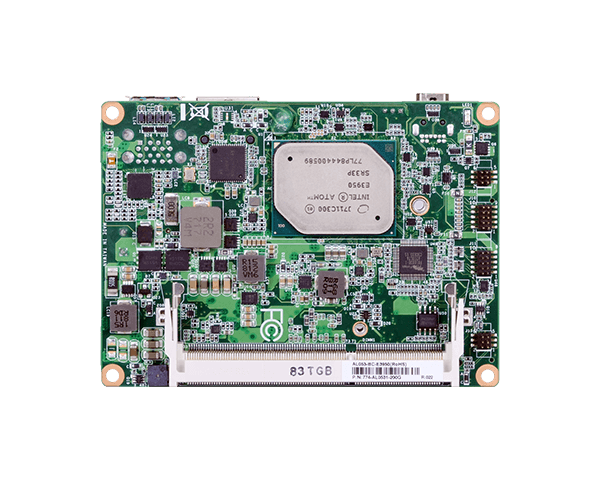

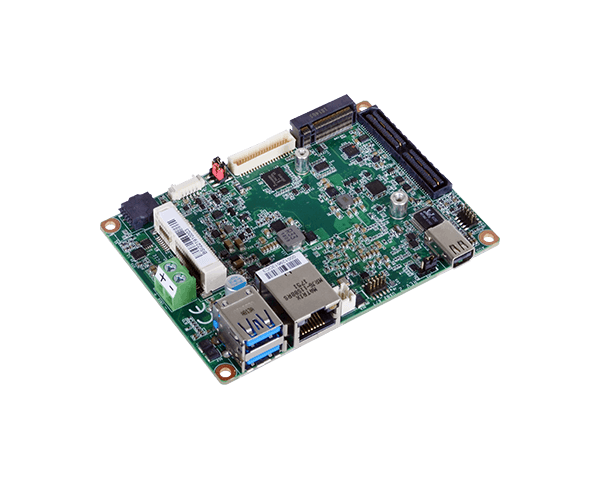

AL053 Intel Atom® 处理器 E3900
■1 DDR3L SODIMM 至 8GB
■2个独立显示: LVDS + Mini DP++
■扩充插槽及储存: 1 Mini PCIe, 1 M.2, 1 SMBus
■丰富I/O: 1 Intel GbE, 1 COM, 2 USB 3.1 Gen1, 2 USB 2.0
■15年CPU长期支持至Q4' 31 (Based on Intel IOTG Roadmap)
-
系统
处理器
Intel Atom® Processor E3900 Series, BGA 1296
Intel Atom® x7-E3950 Processor, Quad Core, 2M Cache, 1.6GHz (2.0GHz), 12W
Intel Atom® x5-E3940 Processor, Quad Core, 2M Cache, 1.6GHz (1.8GHz), 9.5W
Intel Atom® x5-E3930 Processor, Dual Core, 2M Cache, 1.3GHz (1.8GHz), 6.5W
Intel® Pentium® Processor N4200, Quad Core, 2M Cache, 1.1GHz (2.5GHz), 6W
Intel® Celeron® Processor N3350, Dual Core, 2M Cache, 1.1GHz (2.4GHz), 6W
内存
One 204-pin SODIMM up to 8GB
Single Channel DDR3L 1866MHz
BIOS
Insyde SPI 128Mbit (supports UEFI boot only)
显示
控制器
Intel® HD Graphics
特性
OpenGL 4.2, Direct X 11.1, OpenCL 1.2, OGL ES 3.0
HW Decode: H.264, MPEG2, VC1, VP8, H.265, MPEG4
HW Encode: H.264, MPEG2, MPEG4
显示器
1 x Mini DP++
1 x LVDS
Mini DP++: resolution up to 4096x2160 @ 60Hz
LVDS: dual channel 18/24-bit, resolution up to 1920x1200 @ 60Hz
双重显示
LVDS + Mini DP++
储存
外插/内插
1 x M.2 B key 2242 (PCIe/USB 2.0/SATA 3.0)
扩充
界面
1 x Full-size Mini PCIe (PCIe/USB 2.0, optional USB 3.1 Gen1/USB 2.0)
音讯
音讯编译码器
Realtek ALC262-VC2-GR
以太网路
控制器
1 x Intel® I211AT PCIe (10/100/1000Mbps)
1 x Intel® I210IT PCIe (10/100/1000Mbps) (available upon request)

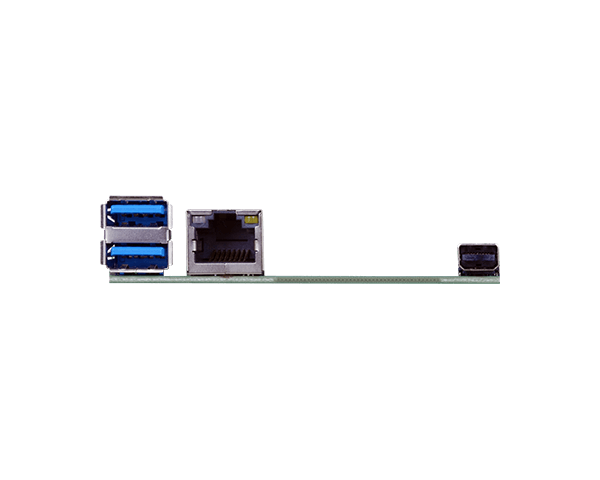

背板输入/输出
以太网络
1 x GbE (RJ-45)
USB
2 x USB 3.1 Gen1
显示
1 x Mini DP++
内部输入/输出
串行端口
1 x RS-232/422/485 (1.27mm pitch)
USB
2 x USB 2.0 (1.27mm pitch)
显示
1 x LVDS LCD Panel Connector
1 x LCD/Inverter Power
音效
1 x Audio (Line-out/Mic-in)
DIO
1 x 8-bit DIO
SMBus
1 x SMBus
监视定时器
看门狗定时器
System Reset, Programmable via Software from 1 to 255 Seconds
安全性
信赖平台模块
fTPM 2.0
电源
类型
9~36V DC
端口
2-pin Terminal Block
耗能
Typical: E3950:12V @ 0.35A (4.20Watt)
Max.: E3950:12V @ 1.90A (22.8Watt)
RTC 电池
CR2032 Coin Cell
支持操作系统
支持操作系统 (UEFI Only)
Windows 10 IoT Enterprise (64-bit)
Linux
环境指标
温度
Operating: 0 to 60°C, -20 to 70°C, -40 to 85°C
Storage: -40 to 85°C
湿度
Operating: 5 to 90% RH
Storage: 5 to 90% RH
MTBF
715,458 hrs @ 25°C; 482,964 hrs @ 45°C ; 335,469 hrs @ 60°C
机械结构
尺寸
2.5" Pico-ITX Form Factor
100mm (3.94") x 72mm (2.83")
高度
PCB: 1.6mm
Top Side: 15mm
Bottom Side: 8mm
安规认证
认证
CE, FCC, RoHS
装箱单
装箱单
1 AL053 board
1 Heat spreader (Height: 11mm) E Series CPU: A71-808308-010G / N Series CPU: A71-808309-010G
订购资讯
- 型号 料号 描述
- AL053-BC-E3930 770-AL0531-000G Fanless, Intel Atom® X5-E3930, 1 DDR3L SODIMM, 1 LVDS, 1 Mini DP++, 1 LAN, 1 COM, 4 USB, 9~36V DC, 0 to 60°C
- AL053-BC-E3940 770-AL0531-100G Fanless, Intel Atom® X5-E3940, 1 DDR3L SODIMM, 1 LVDS, 1 Mini DP++, 1 LAN, 1 COM, 4 USB, 9~36V DC, 0 to 60°C
- AL053-BC-E3950 770-AL0531-200G Fanless, Intel Atom® X7-E3950, 1 DDR3L SODIMM, 1 LVDS, 1 Mini DP++, 1 LAN, 1 COM, 4 USB, 9~36V DC, 0 to 60°C
- AL053-BC-N3350 770-AL0531-300G Fanless, Intel® Celeron® N3350, 1 DDR3L SODIMM, 1 LVDS, 1 Mini DP++, 1 LAN, 1 COM, 4 USB, 9~36V DC, 0 to 60°C
- AL053-EC-E3930 770-AL0531-400G Fanless, Intel Atom® X5-E3930, 1 DDR3L SODIMM, 1 LVDS, 1 Mini DP++, 1 LAN, 1 COM, 4 USB, 9~36V DC, -20 to 70°C
- AL053-TC-E3930 770-AL0531-500G Fanless, Intel Atom® X5-E3930, 1 DDR3L SODIMM, 1 LVDS, 1 Mini DP++, 1 LAN, 1 COM, 4 USB, 9~36V DC, -40 to 85°C
- AL053-TC-E3950 770-AL0531-900G Fanless, Intel Atom® X7-E3950, 1 DDR3L SODIMM, 1 LVDS, 1 Mini DP++, 1 LAN, 1 COM, 4 USB, 9~36V DC, -40 to 85°C
-
* * Note: N4200 is supported upon request with MOQ requirement.
选购品
- 品名 料号 描述
- USB port cable A81-001084-016G Length: 200mm
- 1 COM port cable A81-015050-016G Length: 300mm
- Power adapter 671-106012-000G 60W, 12V, DC Jack
- 2 pole terminal to DC Jack cable A81-004013-000G
- 1 Audio cable A81-022037-016G Length: 160mm
- Heat sink for E series CPU 0 to 60°C/wide tempA71-008111-010G Height: 22.6mm
- Heat sink for N series CPU 0 to 60°C A71-008108-010G Height: 19mm
-
-
