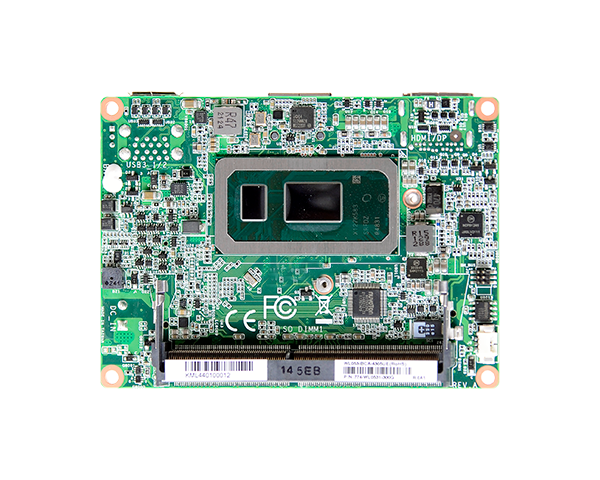

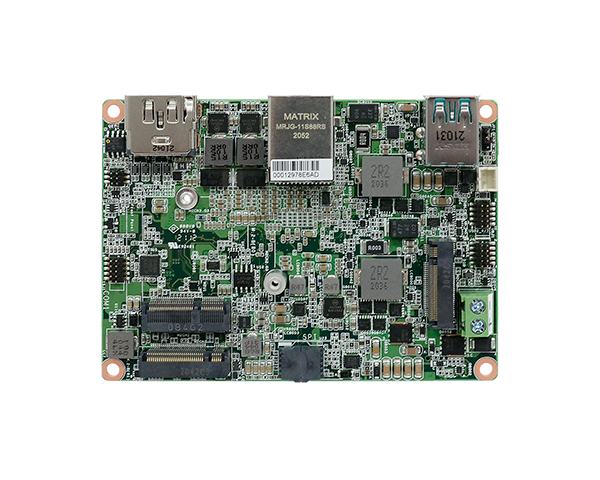

WL053 8th Gen Intel® Core™ Processor 2.5" Pico-ITX
■Small form factor 2.5" Pico-ITX for space-limited applications
■1 DDR4 SODIMM up to 32GB
■Dual independent displays: DP++ + HDMI
■Expansion and Storage: 1 M.2 E key, 2 M.2 B key
■Rich I/O: 1 Intel GbE, 1 COM, 2 USB 3.1 Gen 2, 2 USB 2.0
■15-Year CPU Life Cycle Support Until Q2' 35 (Based on Intel IOTG Roadmap)
-
系统
处理器
8th Generation Intel® Core™ Processors, BGA 1528
Intel® Core™ i7-8665UE, Quad Core, 8M Cache, 1.7GHz (4.4GHz), 15W
Intel® Core™ i5-8365UE, Quad Core, 6M Cache, 1.6GHz (4.1GHz), 15W
Intel® Core™ i3-8145UE, Dual Core, 4M Cache, 2.2GHz (3.9GHz), 15W
Intel® Core™ Celeron® 4305UE, Dual Core, 2M Cache, 2.0GHz (2.0GHz), 15W
内存
One 260-pin SODIMM up to 32GB
Single Channel DDR4 up to 2400MHz
BIOS
AMI SPI 128Mbit
显示
控制器
Intel® UHD Graphics 620/ Intel® UHD Graphics 610 (for Celeron 4305UE)
特性
OpenGL 4.5, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: AVC/H.264, MPEG2, JPEG, HEVC/H265, VP8, VP9
显示器
1 x DP++/HDMI
DP++: resolution up to 4096x2304 @ 60Hz
HDMI: resolution up to 4096x2160 @30Hz双重显示
DP++ + HDMI
扩充
界面
1 x M.2 E key 2230 (PCIe x2/USB 2.0)
2 x M.2 B key 3042/2242 (PCIe x1 or SATA 3.0/USB 3.1 Gen1/USB 2.0)
以太网路
控制器
1 x Intel® I219V/I219LM (only Core i7/i5 supports iAMT)

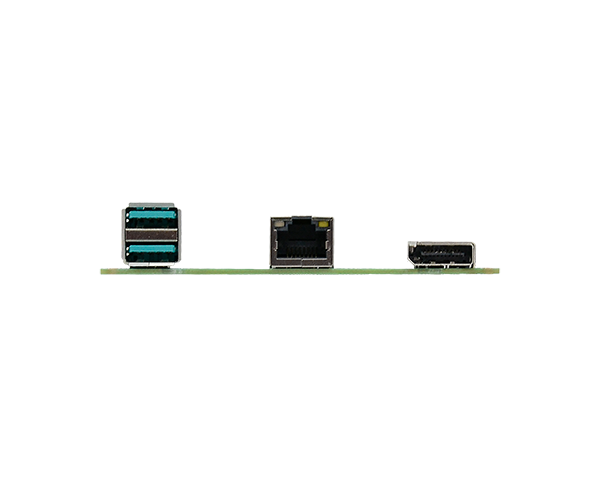

背板输入/输出
以太网络
1 x GbE (RJ-45)
USB
2 x USB 3.1 Gen 2
显示
1 x COMBO port (DP++/HDMI)
内部输入/输出
串行端口
1 x RS-232/422/485 (1.27mm pitch)
USB
2 x USB 2.0 (1.27mm pitch)
DIO
1 x 8-bit DIO
SMBus
1 x SMBus, or I2C (Opt.)
监视定时器
看门狗定时器
System Reset, Programmable via Software from 1 to 255 Seconds
安全性
信赖平台模块
fTPM2.0
电源
类型
Wide Range 9~36V
端口
2-pin Terminal Block
耗能
Typical: 8665UE:12V @ 0.43A (5.16Watt)
Max.: 8665UE:12V @ 2.91A (34.92Watt)
RTC 电池
CR2032 Coin Cell
支持操作系统
支持操作系统 (UEFI Only)
Windows 10 IoT Enterprise (64-bit)
Linux
环境指标
温度
Operating: 0 to 60°C, -30 to 80 °C
Storage: -40 to 85°C湿度
Operating: 5 to 90% RH
Storage: 5 to 90% RH
MTBF
8665UE : 569,616 hrs @ 25°C; 410,391 hrs @ 45°C ; 301,279 hrs @ 60°C; 187,893 hrs @ 80°C
Calculation model: Telcordia Issue 4
Environment: GB, GC – Ground Benign, Controlled
机械结构
尺寸
2.5" Pico-ITX Form Factor
100mm (3.94") x 72mm (2.83")高度
PCB: 1.6mm
Top Side: 15mm
Bottom Side: 8mm
安规认证
认证
CE, FCC, RoHS, UKCA
装箱单
装箱单
1 WL053 board
1 Heat spreader (Height: 11mm) A71-808331-000G
订购资讯
- 型号 料号 描述
- WL053-BCA-8665UE 770-WL0531-000
- GIntel Core® i7-8665UE, 1 SODIMM, 1 DP++/HDMI, 1 LAN, 1 RS-232/422/485, 2 USB 3.1 Gen2, 2 USB 2.0, 9~36VDC, Fanless, -5 to 65℃
- WL053-BCA-8365UE 770-WL0531-100
- GIntel Core® i5-8365UE, 1 SODIMM, 1 DP++/HDMI, 1 LAN, 1 RS-232/422/485, 2 USB 3.1 Gen2, 2 USB 2.0, 9~36VDC, Fanless, -5 to 65℃
- WL053-BCA-8145UE 770-WL0531-200
- GIntel Core® i3-8145UE, 1 SODIMM, 1 DP++/HDMI, 1 LAN, 1 RS-232/422/485, 2 USB 3.1 Gen2, 2 USB 2.0, 9~36VDC, Fanless, -5 to 65℃
- WL053-BCA-4305UE 770-WL0531-300
- GIntel Core® Celeron 4305UE, 1 SODIMM, 1 DP++/HDMI, 1 LAN, 1 RS-232/422/485, 2 USB 3.1 Gen2, 2 USB 2.0, 9~36VDC, Fanless, -5 to 65℃
- WL053-ECA-8665UE 770-WL0531-400
- GIntel Core® i7-8665UE, 1 SODIMM, 1 DP++/HDMI, 1 LAN, 1 RS-232/422/485, 2 USB 3.1 Gen2, 2 USB 2.0, 9~36VDC, Fanless, -30 to 80℃
- WL053-ECA-8365UE 770-WL0531-500
- GIntel Core® i5-8365UE, 1 SODIMM, 1 DP++/HDMI, 1 LAN, 1 RS-232/422/485, 2 USB 3.1 Gen2, 2 USB 2.0, 9~36VDC, Fanless, -30 to 80℃
- WL053-ECA-8145UE 770-WL0531-600
- GIntel Core® i3-8145UE, 1 SODIMM, 1 DP++/HDMI, 1 LAN, 1 RS-232/422/485, 2 USB 3.1 Gen2, 2 USB 2.0, 9~36VDC, Fanless, -30 to 80℃
- WL053-ECA-4305UE 770-WL0531-700
- GIntel Core® Celeron 4305UE, 1 SODIMM, 1 DP++/HDMI, 1 LAN, 1 RS-232/422/485, 2 USB 3.1 Gen2, 2 USB 2.0, 9~36VDC, Fanless, -30 to 80℃
选购品
- 品名 料号 描述
- 2 pole terminal to DC Jack cable A81-004013-000G
- USB 2.0 cable A81-001084-016G Length: 200mm, 2 ports
- COM cable A81-015050-016G Length: 300mm, 1 port
- Heat sink for -5 to 65°C A71-008153-010G Height: 37.8mm
- Heat sink for -30 to 80℃ A71-008154-000G Height: 37.8mm
- DIO cable A81-009203-018G Length: 160mm
- SMBus cable A81-009353-016G Length: 240mm
- Front Panel cable A81-020047-016G Length: 200mm
- Cooler A71-108144-000G Height: 23mm
-
-
