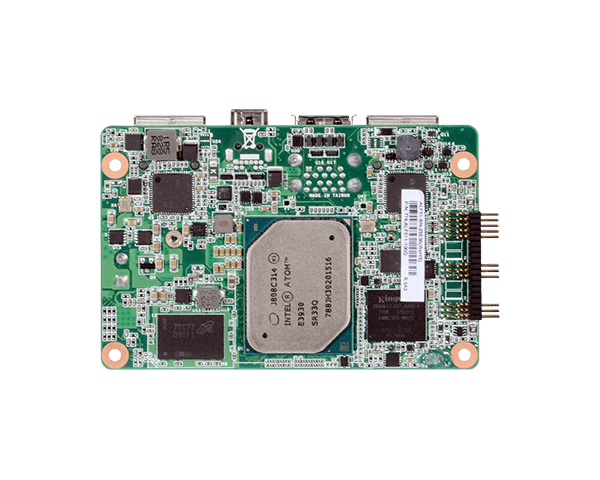

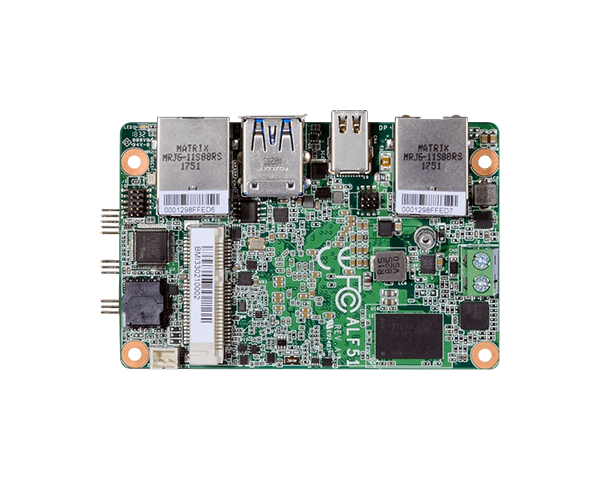

1.8" SBC ALF51 E3900 2GB/4GB LPDDR4 板贴内存
■2GB/4GB LPDDR4 板贴内存
■1 Mini DP++
■丰富 I/O: 2 Intel GbE, 1 COM, 2 USB 3.1 Gen 1, 1 USB 2.0
■15年CPU长期支持至Q4' 31 (Based on Intel IOTG Roadmap)
-
系统
处理器
Intel Atom® Processor E3900 Family, BGA 1296
Intel Atom® x5-E3940 Processor, Quad Core, 2M Cache, 1.6GHz (1.8GHz), 9.5W
Intel Atom® x5-E3930 Processor, Dual Core, 2M Cache, 1.3GHz (1.8GHz), 6.5W
Intel® Pentium® Processor N4200, Quad Core, 2M Cache, 1.1GHz (2.5GHz), 6W
Intel® Celeron® Processor N3350, Dual Core, 2M Cache, 1.1GHz (2.4GHz), 6W
内存
2GB/4GB DDR4 Memory Down
Single Channel LPDDR4 2400MHz
BIOS
Insyde SPI 128Mbit (supports UEFI boot only)
显示
控制器
Intel® HD Graphics
特性
OpenGL 4.2, Direct X 11.1, OpenCL 1.2, OGL ES 3.0
HW Decode: H.264, MPEG2, VC1, VP8, H.265, MPEG4
HW Encode: H.264, MPEG2, MPEG4显示器
1 x Mini DP++
Mini DP++: resolution up to 4096x2160 @ 60Hz
储存
eMMC
1 x 16GB/32GB/64GB eMMC
扩充
界面
1 x Full-size Mini PCIe (PCIe/USB 2.0, optional USB 3.1 Gen1/USB 2.0)
以太网路
控制器
2 x Intel® I211AT PCIe (10/100/1000Mbps) or
2 x Intel® I210IT PCIe (10/100/1000Mbps)

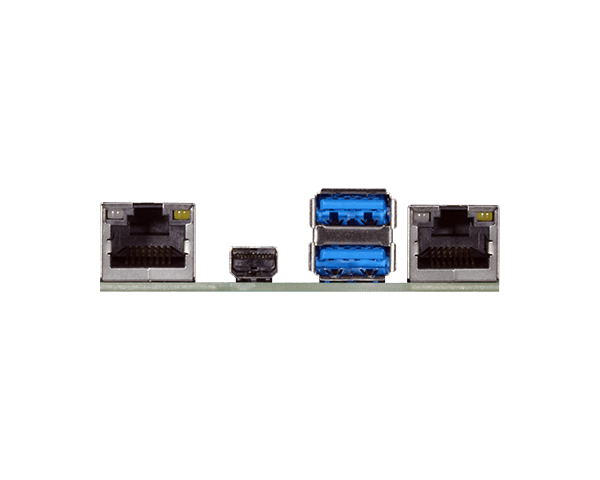

背板输入/输出
以太网络
2 x GbE (RJ-45)
USB
2 x USB 3.1 Gen 1
显示
1 x Mini DP++
内部输入/输出
串行端口
1 x RS-232/422/485 (1.27mm pitch)
USB
1 x USB 2.0 (1.27mm pitch)
DIO
1 x 8-bit DIO
SMBus
1 x SMBus
监视定时器
看门狗定时器
System Reset, Programmable via Software from 1 to 255 Seconds
安全性
信赖平台模块
fTPM 2.0
电源
类型
Single 12V +/-10% DC
端口
2-pin Terminal Block
耗能
Typical: E3940:12V @ 0.29A (3.48Watt)
Max.: E3940:12V @ 1.30A (15.6Watt)RTC 电池
CR2032 Coin Cell
支持操作系统
支持操作系统 (UEFI Only)
Windows 10 IoT Enterprise 64-bit
Linux
环境指标
温度
Operating: 0 to 60°C (Option: -20 to 70°C / -40 to 85 °C)
Storage: -40 to 85°C湿度
Operating: 5 to 90% RH
Storage: 5 to 90% RHMTBF
868,962 hrs @ 25°C; 638,889 hrs @ 45°C ; 465,382 hrs @ 60°C
机械结构
尺寸
1.8" SBC Form Factor
84mm (3.31") x 55mm (2.17")高度
PCB: 1.6mm
Top Side: 16.34mm
Bottom Side: 3.4mm
安规认证
认证
CE, FCC, RoHS
装箱单
装箱单
1 ALF51 board
1 USB port cable (Length: 200mm) A81-001076-016G
1 COM port cable (Height: 300mm) A81-015050-016G
1 Heat spreader (Height: 11mm): A71-808314-000G (for E Series CPU) / A71-808314-010G (for N Series CPU)
订购资讯
- 型号 料号 描述
- ALF51-BN-26E40 770-ALF511-000G
- Fanless, Intel Atom® X5-E3940, LPDDR4 2GB on board, eMMC 64GB, 1 Mini DP++, 2 LAN, 1 COM, 3 USB, 0 to 60°C
- ALF51-BN-26E30 770-ALF511-100G
- Fanless, Intel Atom® X5-E3930, LPDDR4 2GB on board, eMMC 64GB, 1 Mini DP++, 2 LAN, 1 COM, 3 USB, 0 to 60°C
- ALF51-BN-26N50 770-ALF511-200G
- Fanless, Intel® Celeron® N3350, LPDDR4 2GB on board, eMMC 64GB, 1 Mini DP++, 2 LAN, 1 COM, 3 USB, 0 to 60°C
- ALF51-EN-26E40 770-ALF511-300G
- Fanless, Intel Atom® X5-E3940, LPDDR4 2GB on board, eMMC 64GB, 1 Mini DP++, 2 LAN, 1 COM, 3 USB, -20 to 70°C
- ALF51-EN-26E30 770-ALF511-400G
- Fanless, Intel Atom® X5-E3930, LPDDR4 2GB on board, eMMC 64GB, 1 Mini DP++, 2 LAN, 1 COM, 3 USB, -20 to 70°C
- ALF51-TN-26E40 770-ALF511-500G
- Fanless, Intel Atom® X5-E3940, LPDDR4 2GB on board, eMMC 64GB, 1 Mini DP++, 2 LAN, 1 COM, 3 USB, -40 to 85°C
- ALF51-TN-26E30 770-ALF511-600G
- Fanless, Intel Atom® X5-E3930, LPDDR4 2GB on board, eMMC 64GB, 1 Mini DP++, 2 LAN, 1 COM, 3 USB, -40 to 85°C
- ALF51-BN-46E40 770-ALF511-700G
- Fanless, Intel Atom® X5-E3940, LPDDR4 4GB on board, eMMC 64GB, 1 Mini DP++, 2 LAN, 1 COM, 3 USB, 0 to 60°C
- ALF51-TN-46E40 770-ALF511-800G
- Fanless, Intel Atom® X5-E3940, LPDDR4 4GB on board, eMMC 64GB, 1 Mini DP++, 2 LAN, 1 COM, 3 USB, -40 to 85°C
-
* Note: N4200 by request
选购品
- 品名 料号 描述
- Heat sink for E series CPU 0 to 60°C / wide temp A71-008110-000G Height: 27mm
- Heat sink for N series CPU 0 to 60°C A71-008113-000G Height: 23mm
- Power adapter + 2 pole terminal to DC Jack cable 671-106012-000G/A81-004013-000G 60W, 12V, DC jack
-
-
